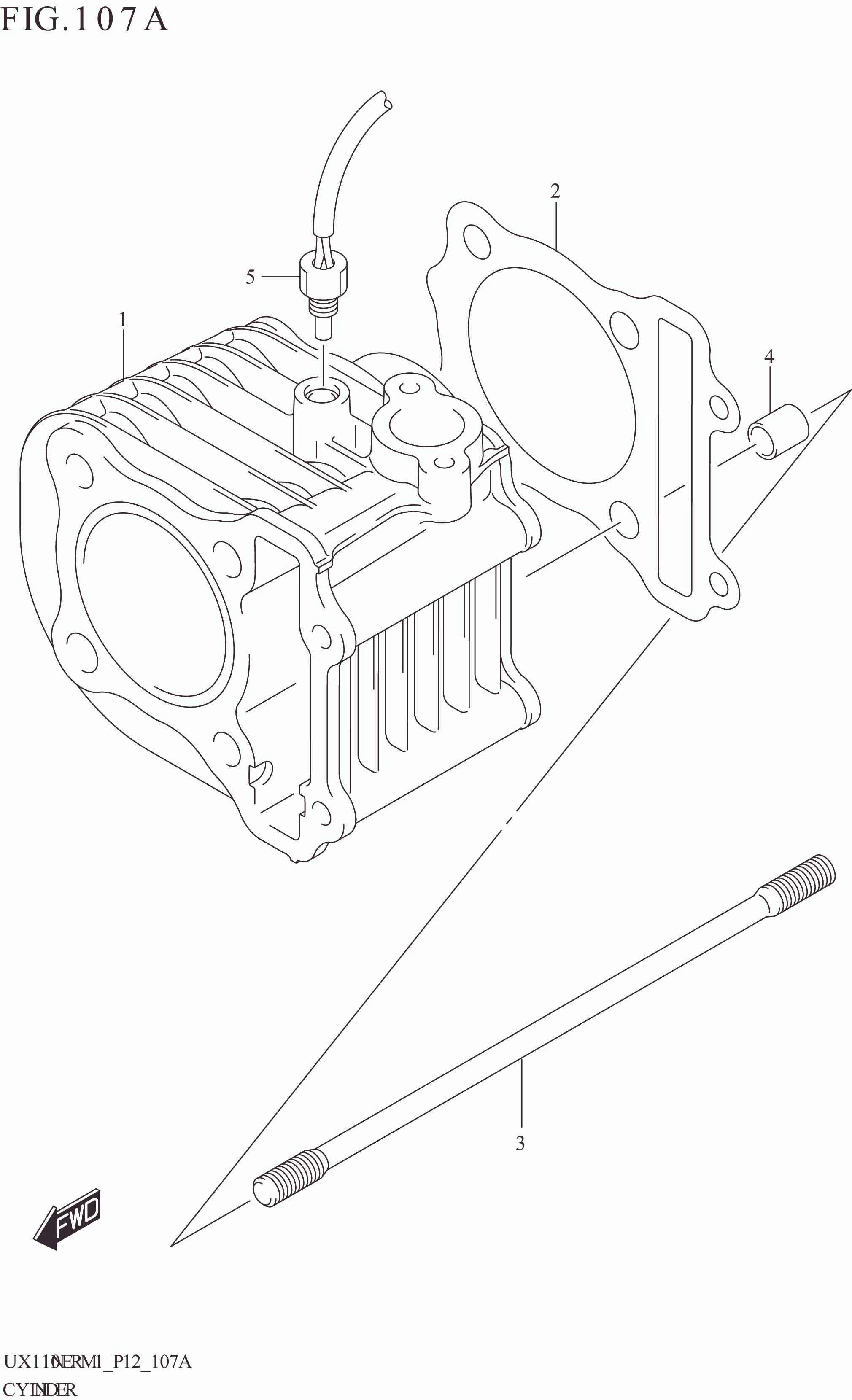

FIG. 107A CYLINDER

FIG. 107A CYLINDER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	11210-09J30-0F0	CYLINDER	1	Rp324.500
2	11241-09J00-000	GASKET,CYLINDER	1	Rp6.500
3	09108-08299-000	BOLT,CYLINDER STUD (L:185)	4	Rp16.500
4	09206-10016-000	PIN (8.2X10X13)	2	Rp3.500
5	13640-09J11-000	SENSOR,ENGINE TEMP	1	Rp182.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
