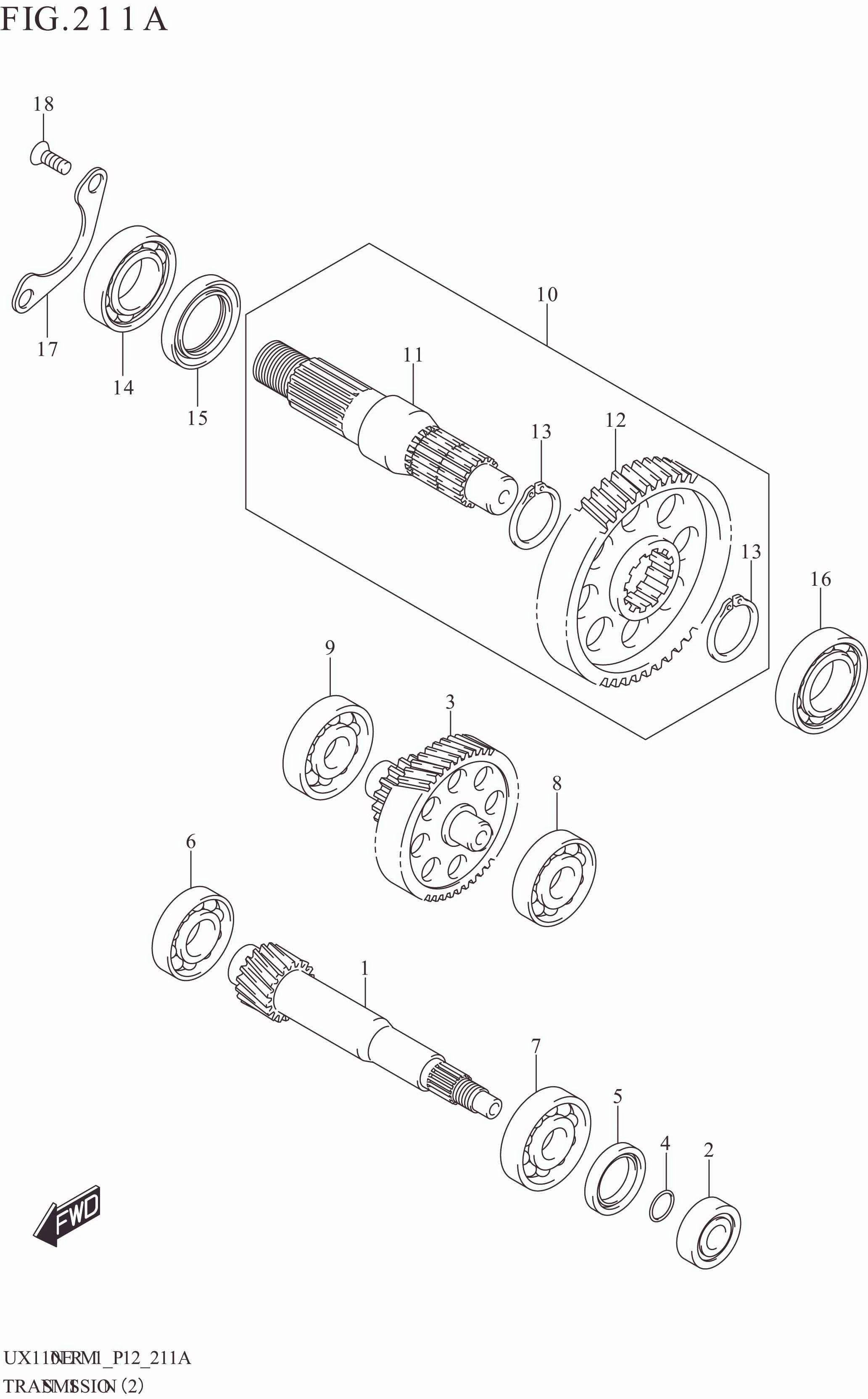

FIG. 211A TRANSMISSION (2)

FIG. 211A TRANSMISSION (2)
No No. Part Description Qty Price Per Pcs Remarks
1 24131-40J01-000 SHAFT DRIVE (NT:16) 1 Rp130.000
2 24132-09J00-000 BEARING,DRIVE SHAFT,L 1 Rp22.500
3 24150-40J00-000 SHAFT,IDLE (NT:13/44) 1 Rp164.500
4 09280-08L01-000 O-RING (D:1.9,ID:7.8) 1 Rp4.000
5 09283-20070-000 SEAL,OIL (20X28X5) 1 Rp8.000
6 08110-60020-000 BEARING 1 Rp43.000
7 08110-60040-000 BEARING 1 Rp38.000
8 08113-62010-000 BEARING 1 Rp32.500
9 08113-62020-000 BEARING 1 Rp30.500
10 24140-40J00-000 SHAFT,REAR AXLE 1 Rp233.500
11 24141-09J00-000 .SHAFT 1 Rp118.000
12 24371-40J00-000 .GEAR,FINAL DRIVEN (NT:47) 1 Rp117.000
13 08331-31249-000 .CIRCLIP 2 Rp8.500
14-1 09262-22050-000 BEARING (22X50X14) 1 Rp87.000
14-2 09262-22041-000 BEARING (22X50X14) 1 Rp97.000
15 09283-27L02-000 SEAL (27X40X6) 1 Rp10.500
16 08110-62030-000 BEARING 1 Rp33.500
17 24751-09J00-000 RETAINER,DRIVE SHAFT BEARING 1 Rp13.500
18 02122-0616A-000 SCREW 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
