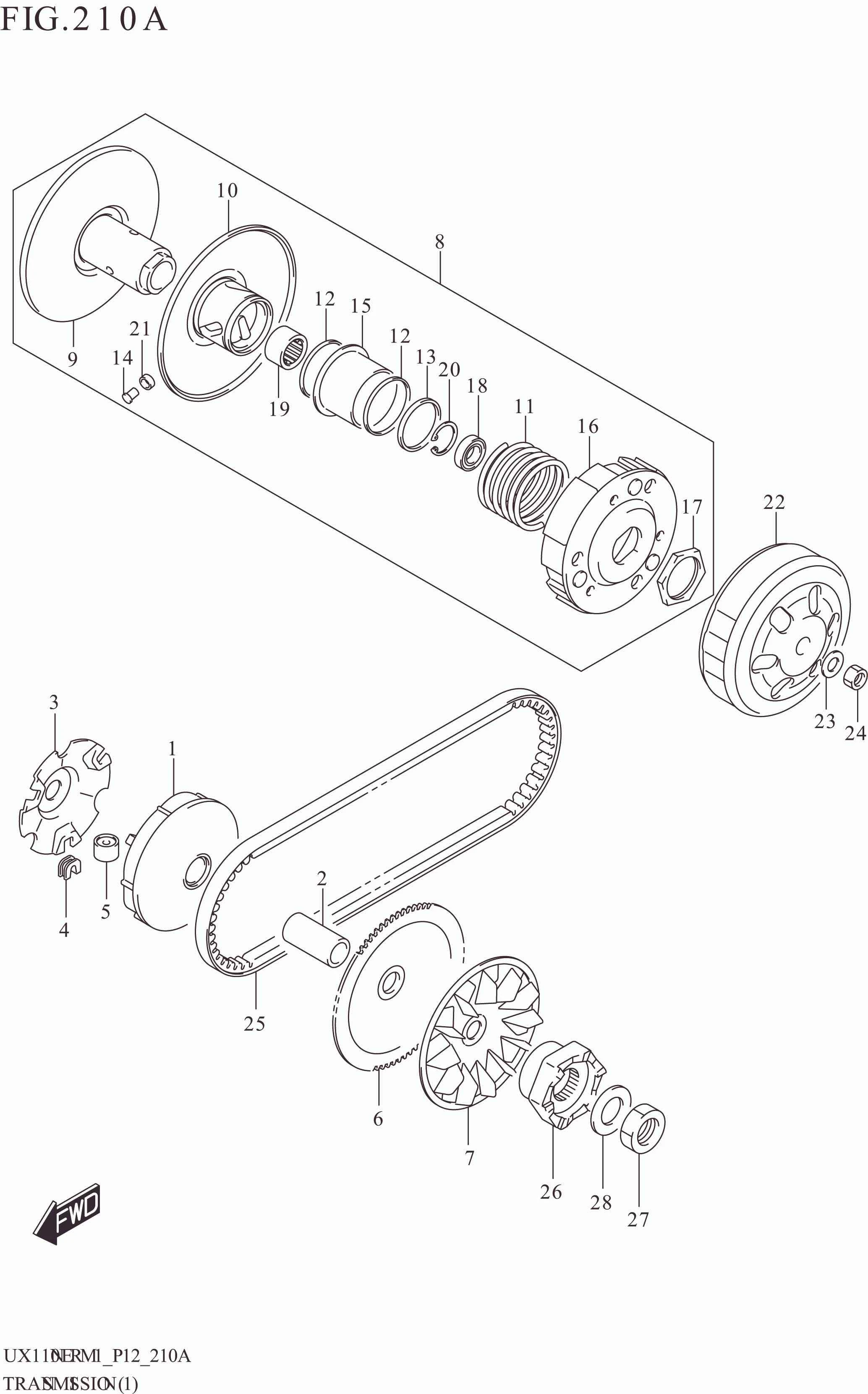

FIG. 210A TRANSMISSION (1)

FIG. 210A TRANSMISSION (1)
No No. Part Description Qty Price Per Pcs Remarks
1 21120-40J01-000 FACE,MOVABLE DRIVE 1 Rp130.000
2 21125-39J00-000 SPACER,MOVABLE DRIVE 1 Rp43.500
3 21431-40J00-000 PLATE,MOVABLE DRIVE 1 Rp33.500
4 21481-40J10-000 DAMPER,MOVABLE DRIVE PLATE 3 Rp8.000
5 21650-32G11-000 ROLLER,MOVABLE DRIVE 6 Rp13.500
6 21111-39J00-000 FACE,FIXED DRIVE (NT:70) 1 Rp94.000
7 21113-39J00-000 FAN,FIXED DRIVE 1 Rp24.000
8 21200-40J20-000 FACE ASSY,DRIVEN 1 Rp756.000
9 21210-39J10-000 .FACE,FIXED DRIVEN 1 Rp118.000
10 21240-39J10-000 .FACE,MOVABLE DRIVEN 1 Rp92.500
11 21243-39J00-000 .SPRING,MOVABLE DRIVEN 1 Rp25.500
12 21245-33G00-000 .O-RING,MOVABLE DRIVEN 2 Rp12.500
13 21247-39J00-000 .SEAL,MOVABLE DRIVEN (34X39X3) 2 Rp21.000
14 21248-33G00-001
SUB: 21248-33G00-000		 .PIN,MOVABLE DRIVEN 3 Rp12.500
15 21471-09J00-000 .SHEET,MOVABKE DRIVEN 1 Rp14.000
16 21501-40J10-000 .CLUTCH ASSY,SHOE 1 Rp411.500
17 21518-40J00-000 .NUT,SHOE CLUTCH 1 Rp10.500
18 09262-15049-000 .BEARING (15X24X5) 1 Rp38.000
19 09263-20105-000 .BEARING (20X26X14) 1 Rp107.500
20 09381-24005-000 .CIRCLIP 1 Rp8.000
21 21249-33G00-000 .SPACER,MOVABLE DRIVEN PIN 3 Rp4.500
22 21220-40J10-000 HOUSING,CLUTCH 1 Rp116.500
23 09164-12020-000 WASHER (12.2X22X1.2) 1 Rp9.500
24 09140-12039-000 NUT (M12) 1 Rp6.500
25 27601-09J50-000 V-BELT,DRIVE 1 Rp113.500
26 26231-39J00-000 STARTER,KICK,R 1 Rp42.500
27 26282-40J00-000 NUT,KICK STARTER 1 Rp8.500
28 09164-12020-000 WASHER (12.2X22X1.2) 1 Rp9.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
