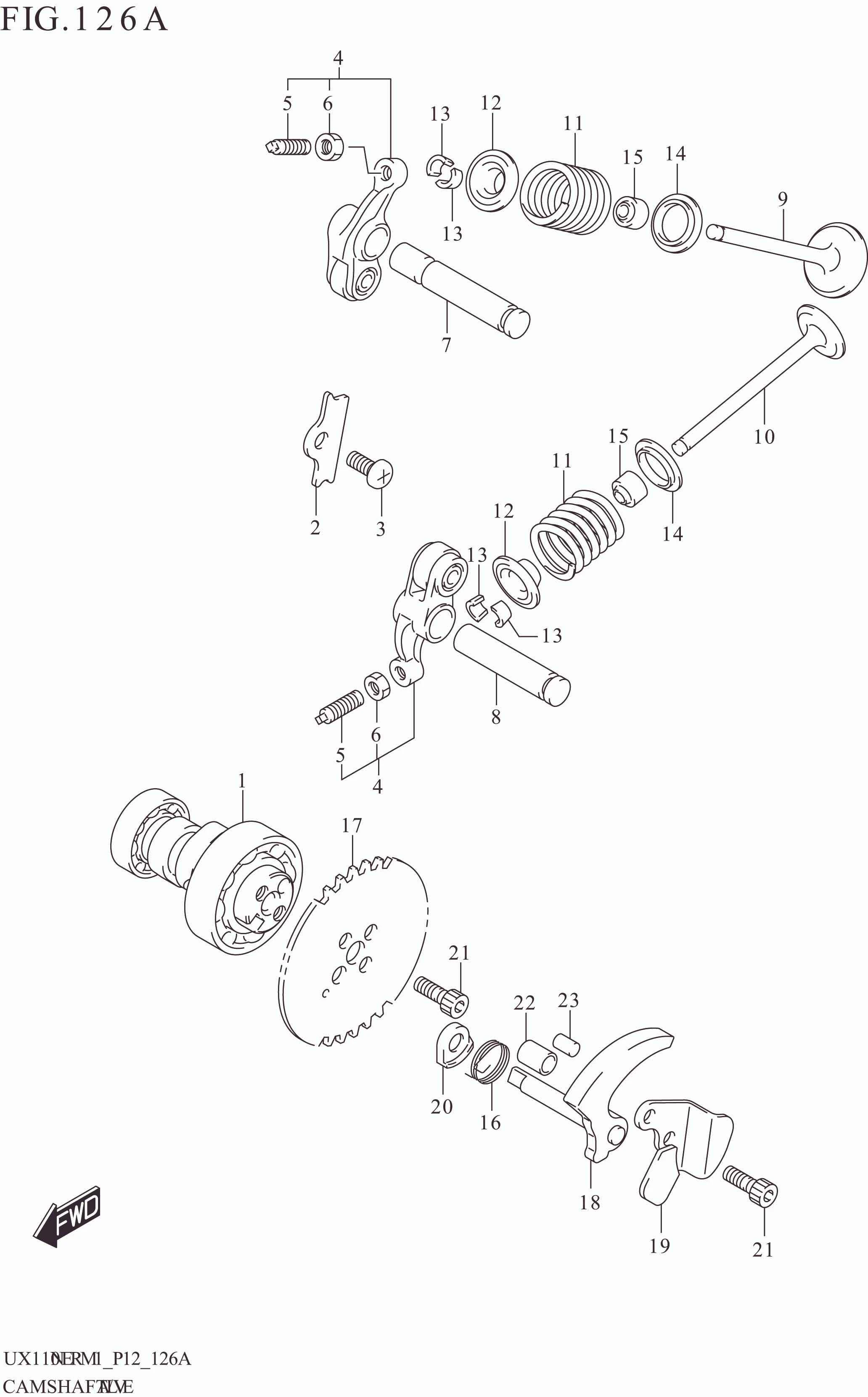

FIG. 126A CAMSHAFT/VALVE

FIG. 126A CAMSHAFT/VALVE
No No. Part Description Qty Price Per Pcs Remarks
1 12710-40J00-000 CAMSHAFT 1 Rp259.500
2 12862-09J10-000
SUB: 12862-09J00-000		 RETAINER,CAMSHAFT 1 Rp5.000
3 02112-0612A-000 SCREW 1 Rp3.500
4-1 12840-09J30-000
SUB: 12840-09J00-000		 ARM ASSY,VALVE ROCKER 2 Rp141.500
4-2 12840-09J20-000 ARM ASSY,VALVE ROCKER 2 Rp54.000
4-3 12840-09J30-000 ARM ASSY,VALVE ROCKER 2 Rp141.500
5-1 12842-09J20-000
SUB: 12842-09J00-000		 .SCREW,TAPPET ADJUSTING 2 Rp4.500
5-2 12842-09J20-000 .SCREW,TAPPET ADJUSTING 2 Rp4.500
6-1 12843-27A00-000 .NUT,TAPPET ADJUSTING 2 Rp19.000
6-2 12843-27A80-000 .NUT,TAPPET ADJUSTING 2 Rp3.000
7 12861-40J00-000 SHAFT,VALVE ROCKER ARM INTAKE 1 Rp12.500
8 12871-40J00-000 SHAFT,VALVE ROCKER ARM EXHAUST 1 Rp10.500
9 12911-22J00-000 VALVE,INTAKE 1 Rp25.000
10 12912-22J00-000 VALVE,EXHAUST 1 Rp40.500
11 12921-09J00-000 SPRING,VALVE 2 Rp11.000
12-1 12931-09G00-000 RETAINER,VALVE SPRING 2 Rp13.000
12-2 12931-09G00-000
SUB: 12931-09G20-000		 RETAINER,VALVE SPRING 2 Rp13.000
13 12932-09G00-000 COTTER,VALVE 4 Rp4.500
14 12933-09G00-000 SEAT,VALVE SPRING 2 Rp9.000
15 09289-05L01-000 SEAL (4.4X10.5X8.4) 2 Rp7.000
16 12725-20G00-000 SPRING,DECOMP CAM 1 Rp3.000
17 12741-09J00-000 SPROCKET,CAMSHAFT (NT:34) 1 Rp52.500
18 12950-09J20-000
SUB: 12950-09J10-000		 CAM,DECOMPRESSION 1 Rp41.000
19 12954-39J00-000 STOPPER,DECOMP CAM 1 Rp27.000
20 12955-33G00-000 WASHER,DECOMP SHAFT 1 Rp11.500
21 09106-05028-000 BOLT (5X15) 2 Rp6.500
22 09206-08008-000 PIN (6.3X8X12) 1 Rp4.000
23 09261-05005-000 PIN (5X8) 1 Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
