Nex II Cross

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.102A CYLINDER HEAD COVER FIG. 103A CYLINDER HEAD FIG. 107A CYLINDER FIG . 108A CRANKCASE FIG. 112A CRANKCASE COVER FIG. 120A CRANKSHAFT FIG. 126A CAMSHAFT/VALVE FIG. 127A CAM CHAIN FIG. 140A THROTTLE BODY FIG. 155A AIR CLEANER FIG. 163A MUFFLER FIG. 170A OIL PUMP FIG. 172A FUEL PUMP FIG. 181A COOLING FAN FIG. 210A TRANSMISSION (1)FIG. 211A TRANSMISSION (2)FIG. 240A KICK STARTER

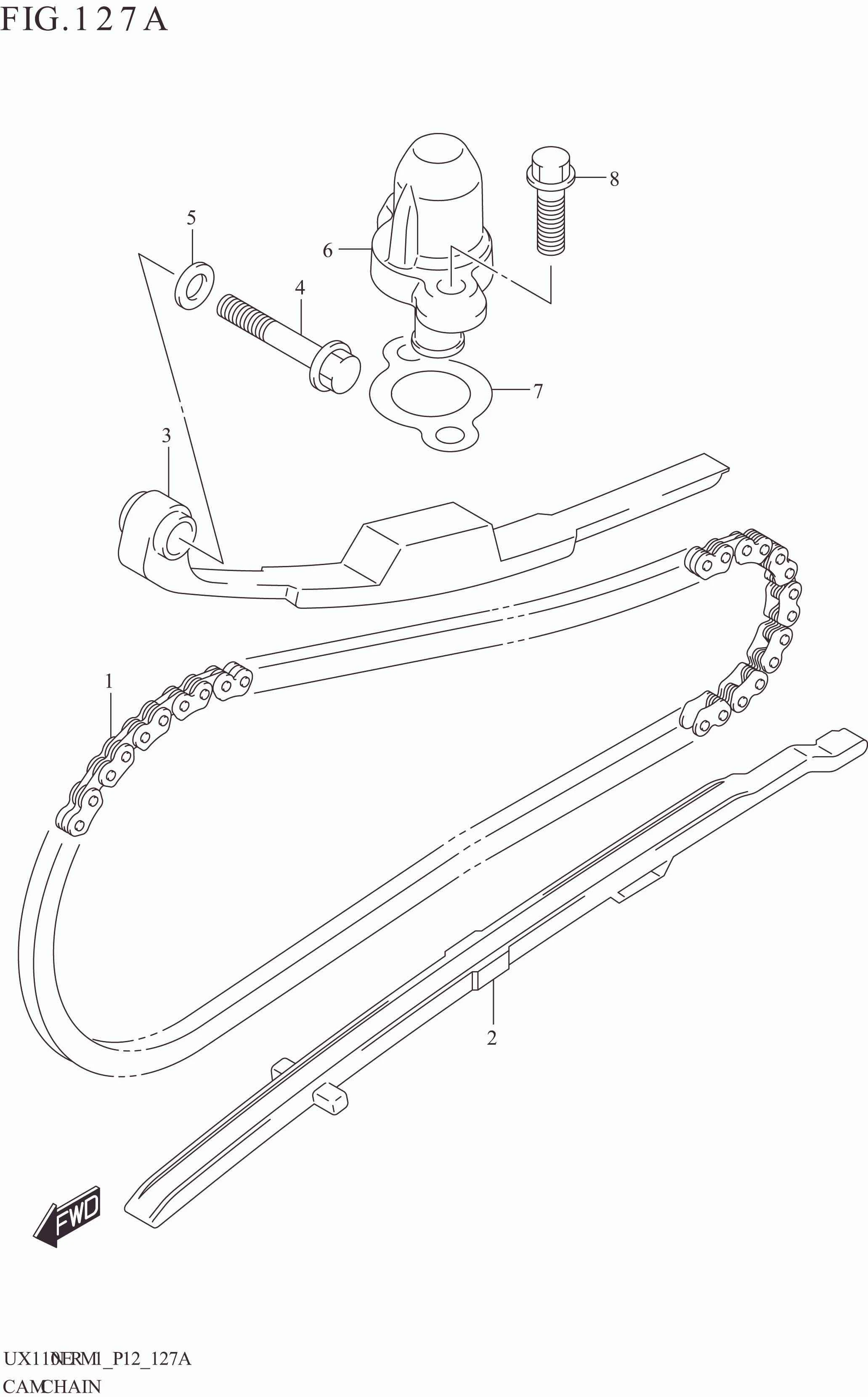

FIG. 127A CAM CHAIN

FIG. 127A CAM CHAIN

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	12760-22J00-000	CHAIN,CAMSHAFT DRIVE	1	Rp74.000
2	12771-40J00-000	GUIDE,CAM CHAIN	1	Rp9.500
3-1	12811-09J00-000	TENSIONER,CAM CHAIN	1	Rp47.000
3-2	12811-22J01-000	TENSIONER,CAM CHAIN	1	Rp57.500
4	09103-06247-000	BOLT (6X32)	1	Rp4.000
5	09168-06004-000	GASKET (6.2X11X1.2)	1	Rp2.500
6	12830-09J00-000	ADJUSTER ASSY,TENSIONER	1	Rp96.000
7	12837-46G10-000	GASKET,TENSIONER ADJUSTER	1	Rp4.000
8	01547-0620B-000 SUB: 01547-0620A-000	BOLT	2	Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
