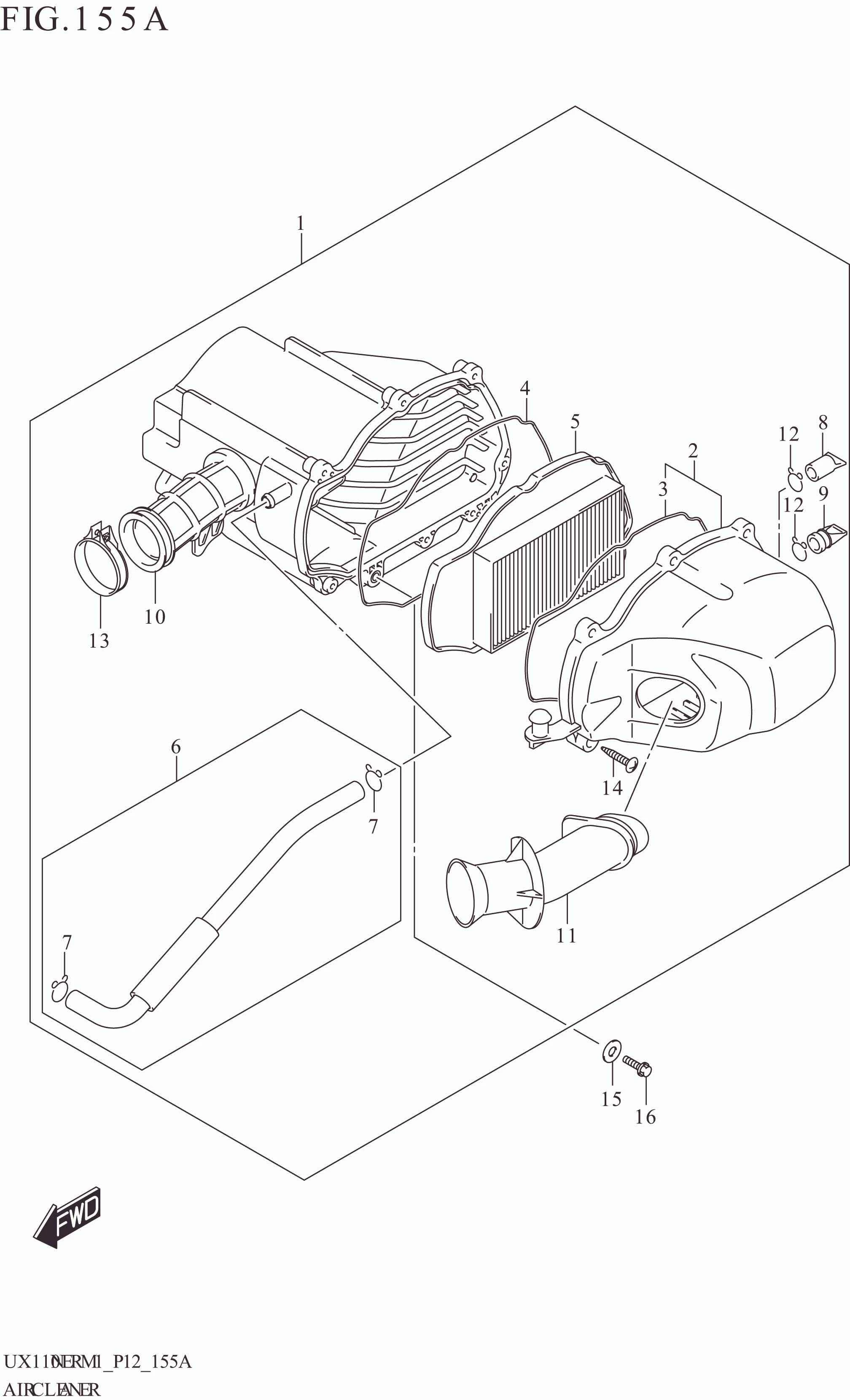

FIG. 155A AIR CLEANER

FIG. 155A AIR CLEANER
No No. Part Description Qty Price Per Pcs Remarks
1 13700-49K01-000 CLEANER ASSY,AIR 1 Rp251.500
2 13740-09J00-000 .CAP,AIR CLEANER 1 Rp29.000
3 13746-09J00-000 ..GASKET 1 Rp7.000
4 13746-09J00-000 .GASKET 1 Rp7.000
5 13780-09J00-000 .FILTER ASSY,AIR CLEANER 1 Rp44.500
6 13850-09JA1-000 .TUBE,BREATHER 1 Rp18.000
7 09401-14101-000 ..CLIP (ID:14.5) 2 Rp19.000
8 13871-49K00-000 .PLUG,DRAIN 1 Rp7.000
9 13878-09J00-000 .TUBE,DRAIN 1 Rp4.000
10 13881-49K00-000 .TUBE,OUTLET 1 Rp51.000
11 13891-09JA1-000 .TUBE,INLET 1 Rp35.500
12 09401-11101-000 .CLIP 1 Rp14.000
13 09402-36208-000 .CLAMP 1 Rp31.500
14 03541-0525A-000 .SCREW 7 Rp3.500
15 09160-06028-000 WASHER (6.5X18X1.0) 3 Rp3.500
16 01547-0620B-000
SUB: 01547-0620A-000		 BOLT 3 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
