Nex II Cross

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.102A CYLINDER HEAD COVERFIG. 103A CYLINDER HEADFIG. 107A CYLINDERFIG . 108A CRANKCASEFIG. 112A CRANKCASE COVERFIG. 120A CRANKSHAFTFIG. 126A CAMSHAFT/VALVEFIG. 127A CAM CHAINFIG. 140A THROTTLE BODYFIG. 155A AIR CLEANERFIG. 163A MUFFLERFIG. 170A OIL PUMPFIG. 172A FUEL PUMPFIG. 181A COOLING FANFIG. 210A TRANSMISSION (1)FIG. 211A TRANSMISSION (2)FIG. 240A KICK STARTER

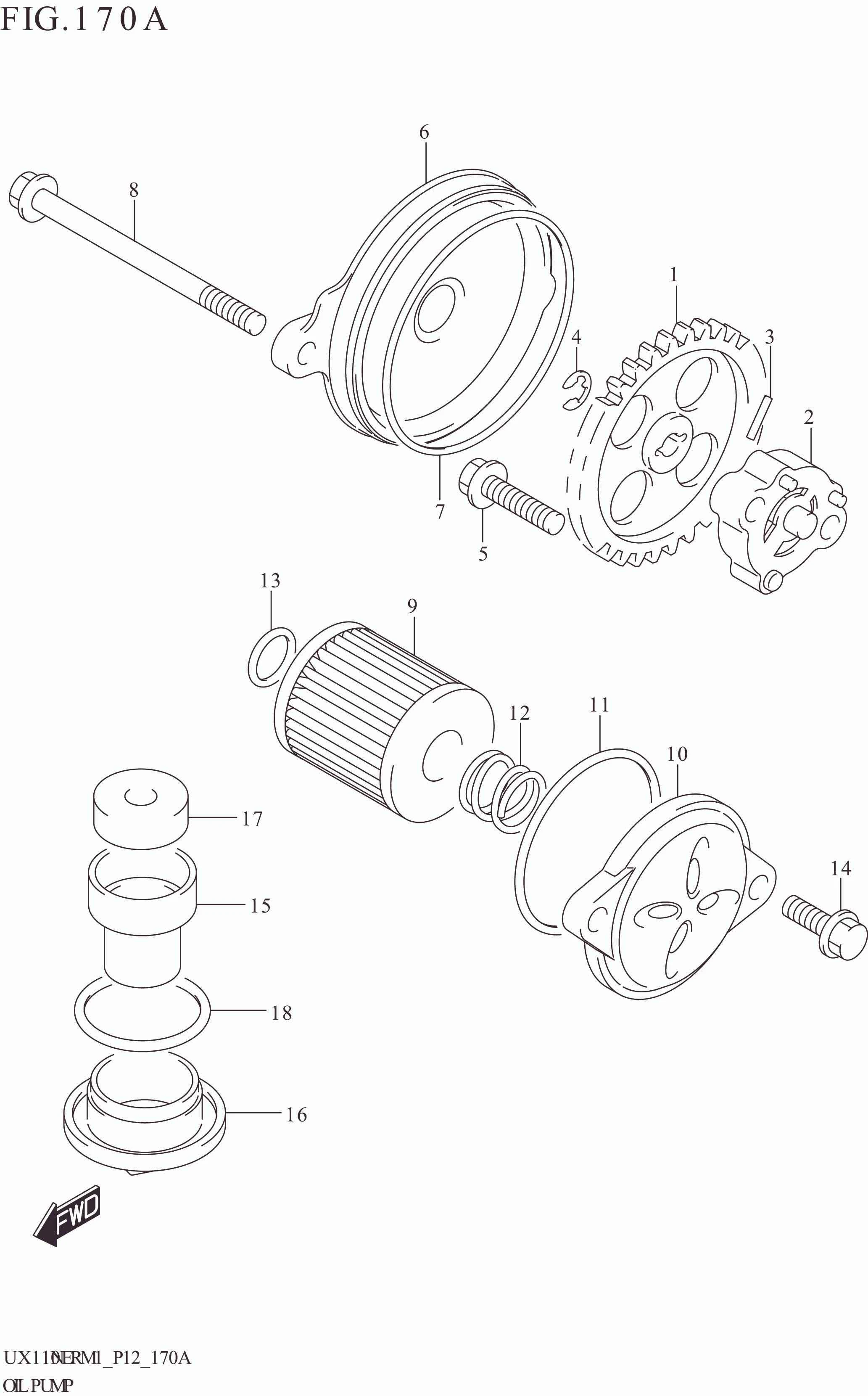

FIG. 170A OIL PUMP

FIG. 170A OIL PUMP
No No. Part Description Qty Price Per Pcs Remarks
1 16331-09J00-000 GEAR,OIL PUMP DRIVEN (NT:43) 1 Rp25.000
2 16400-09J00-000 PUMP ASSY,ENG OIL 1 Rp82.000
3 16421-20E00-000 PIN 1 Rp10.500
4 16423-20E00-000 CIRCLIP 1 Rp4.000
5 01547-0625A-000 BOLT 2 Rp6.500
6 16422-09J00-000 COVER,OIL PUMP 1 Rp22.000
7 16423-09J00-000 O-RING,OIL PUMP COVER 1 Rp12.500
8 01547-0680A-000 BOLT 2 Rp4.000
9 16510-09J00-000 FILTER,ENG OIL 1 Rp11.500
10 16512-09J00-000 CAP,OIL FILTER 1 Rp12.500
11 16518-09J00-000 O-RING,OIL FILTER CAP 1 Rp4.000
12 16519-09J00-000 SPRING,OIL FILTER 1 Rp3.000
13 09280-13010-000 O RING (D:1.9,ID:12.5) 1 Rp3.000
14 01547-0616A-000 BOLT 2 Rp6.500
15 16520-09J00-000 STRAINER,ENG OIL 1 Rp11.500
16 16523-09J00-000 CAP,OIL STRAINER 1 Rp11.000
17 16526-09J00-000 PLUG,OIL STRAINER 1 Rp5.500
18 16525-09J00-000 O-RING 1 Rp9.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
