Preview Engine Transmission Electrical Suspension Body

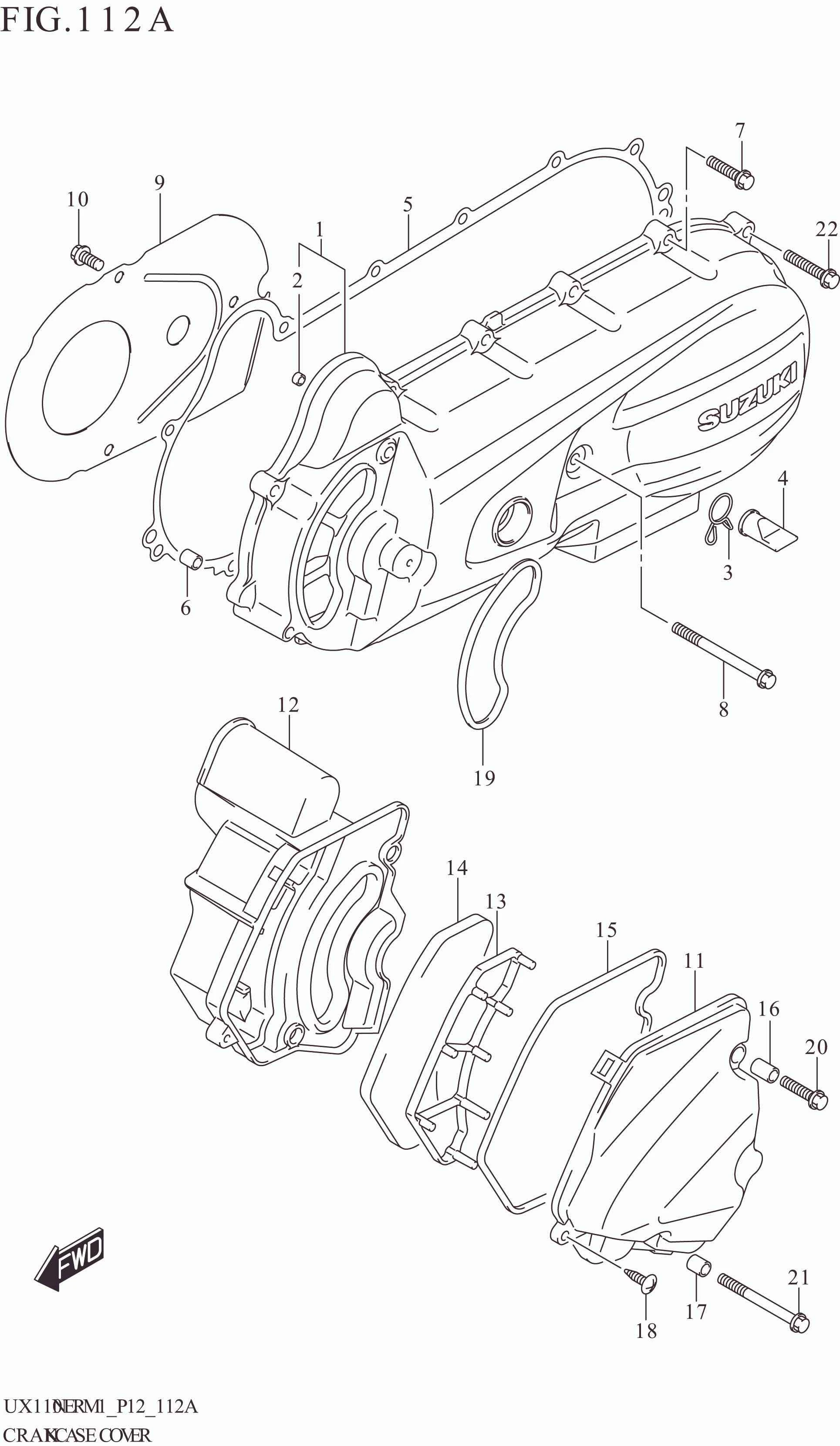

No	No. Part	Description	Qty	Price Per Pcs
1	11340-09J20-000	COVER,CLUTCH	1	Rp529.500
2	11325-09J00-000	.BUSH	1	Rp13.000
3	11344-13H00-000	CLIP	1	Rp3.000
4	11345-13H10-000	PLUG,WATER DRAIN	1	Rp4.500
5	11482-09J00-000	GASKET,CLUTCH COVER (NA)	1	Rp20.500
6	09206-08008-000	PIN (6.3X8X12)	2	Rp4.000
7	01547-0625A-000	BOLT	10	Rp6.500
8	01547-0670A-000	BOLT	1	Rp7.500
9	11346-09J00-000	PLATE,CLUTCH COVER AIR INTAKE	1	Rp19.000
10	01547-0610A-000 SUB: 01547-0612A-000	BOLT	3	Rp3.000
11	11381-09J00-000	DUCT,BELT COOLING NO.1	1	Rp23.000
12	11382-09J00-000	DUCT,BELT COOLING NO.2	1	Rp17.500
13	11383-09J00-000	PLATE,BELT COOLING DUCT	1	Rp6.500
14	11384-09J00-000	FILTER,BELT COOLING	1	Rp20.500
15	11386-09J00-000	GASKET,BELT COOLING DUCT NO.2	1	Rp4.000
16	09180-06268-000	SPACER (6.5X9X13.5)	1	Rp13.000
17	09180-06307-000	SPACER (6.5X9X10)	1	Rp5.000
18	03541-0516A-000	SCREW	1	Rp3.500
19	11385-09J00-000	GASKET,BELT COOLING DUCT NO.1	1	Rp3.000
20	01547-0625A-000	BOLT	1	Rp6.500
21	01547-0660A-000	BOLT	1	Rp7.500
22	01547-0630A-000	BOLT	2	Rp6.500
