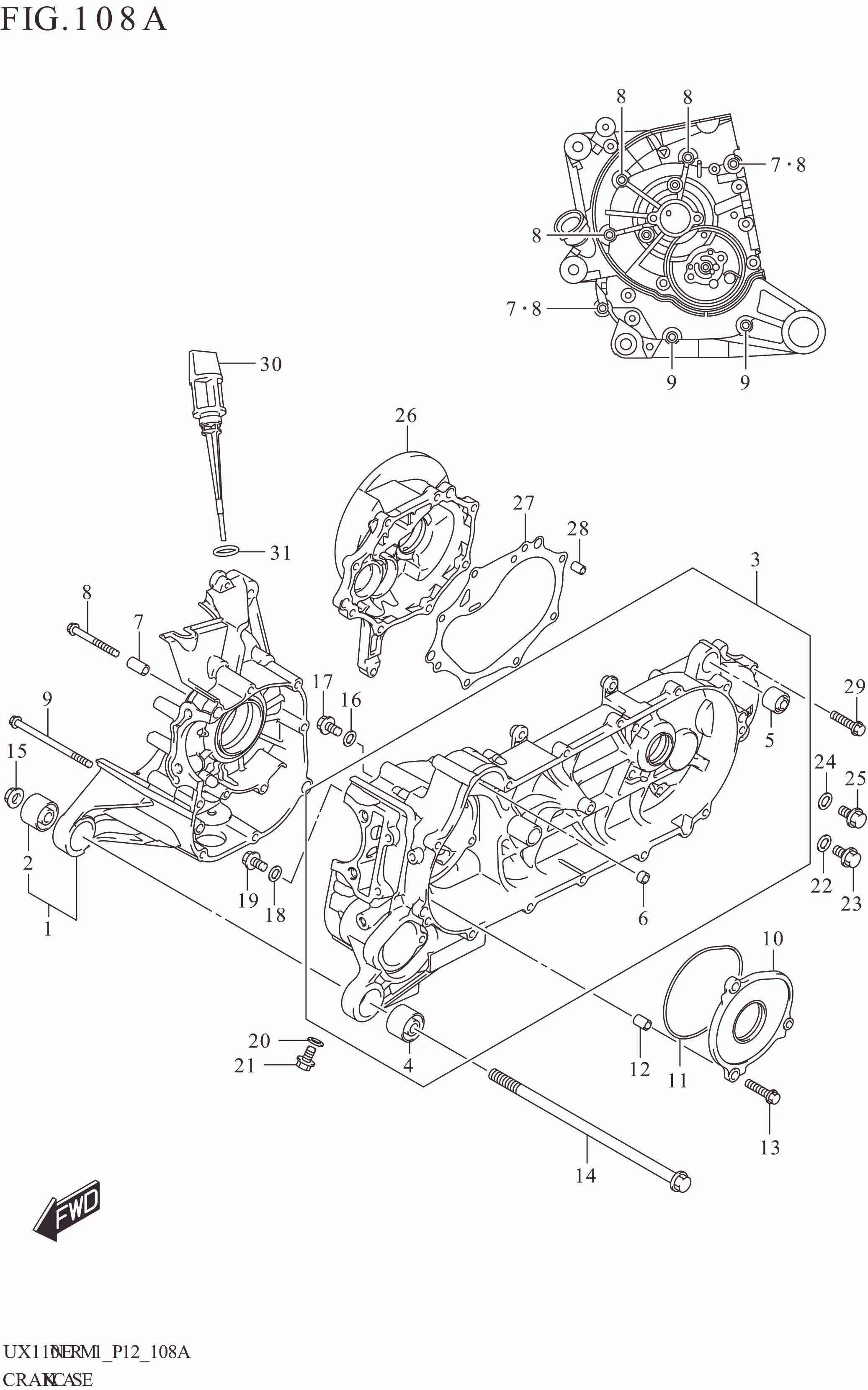

FIG . 108A CRANKCASE

FIG . 108A CRANKCASE
No No. Part Description Qty Price Per Pcs Remarks
1 11310-09831-000 CRANKCASE SET,R 1 Rp538.000
2 11315-09J01-000 .BUSH,ENGINE MOUNTING 1 Rp35.000
3 11320-09850-000 CRANKCASE SET LH 1 Rp831.500
4 11315-09J01-000 .BUSH,ENGINE MOUNTING 1 Rp35.000
5 11316-09J00-000 .BUSH,REAR SHOCK ABS 1 Rp17.000
6 11325-09J00-000 .BUSH 1 Rp13.000
7 09206-10014-000 PIN (6.4X10X20) 2 Rp3.000
8 01547-0655A-000 BOLT 5 Rp7.500
9 01547-0695A-000 BOLT 2 Rp7.500
10 11323-09J00-000 CAP,CRANKCASE,L 1 Rp126.500
11 11324-09J00-000 O-RING,CRANKCASE,L CAP 1 Rp5.500
12 09206-08008-000 PIN (6.3X8X12) 2 Rp4.000
13 01547-0625A-000 BOLT 3 Rp6.500
14 11611-39J00-000 BOLT,ENG MTG (L:240) 1 Rp35.500
15 08316-1010A-000 NUT 1 Rp3.500
16 09168-08008-000 GASKET (8.2X14X1) 2 Rp3.000
17 01550-0812A-000 BOLT 2 Rp3.500
18 09168-08008-000 GASKET (8.2X14X1) 1 Rp3.000
19 01550-0812A-000 BOLT 1 Rp3.500
20 09168-08008-000 GASKET (8.2X14X1) 1 Rp3.000
21 01550-0812A-000 BOLT 1 Rp3.500
22 09168-08008-000 GASKET (8.2X14X1) 1 Rp3.000
23 01550-0812A-000 BOLT 1 Rp3.500
24 09168-08008-000 GASKET (8.2X14X1) 1 Rp3.000
25 01550-0812A-000 BOLT 1 Rp3.500
26 11430-09830-000 COVER SET,GEAR BOX 1 Rp354.500
27 11484-09J00-000 GASKET,GEAR BOX COVER 1 Rp8.500
28 09206-08008-000 PIN (6.3X8X12) 2 Rp4.000
29 01547-0630A-000 BOLT 8 Rp6.500
30 11971-09J00-000 GAUGE,OIL LEVEL 1 Rp23.000
31 09280-17003-000 O RING (D:3.1,ID:16.8) 1 Rp2.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
