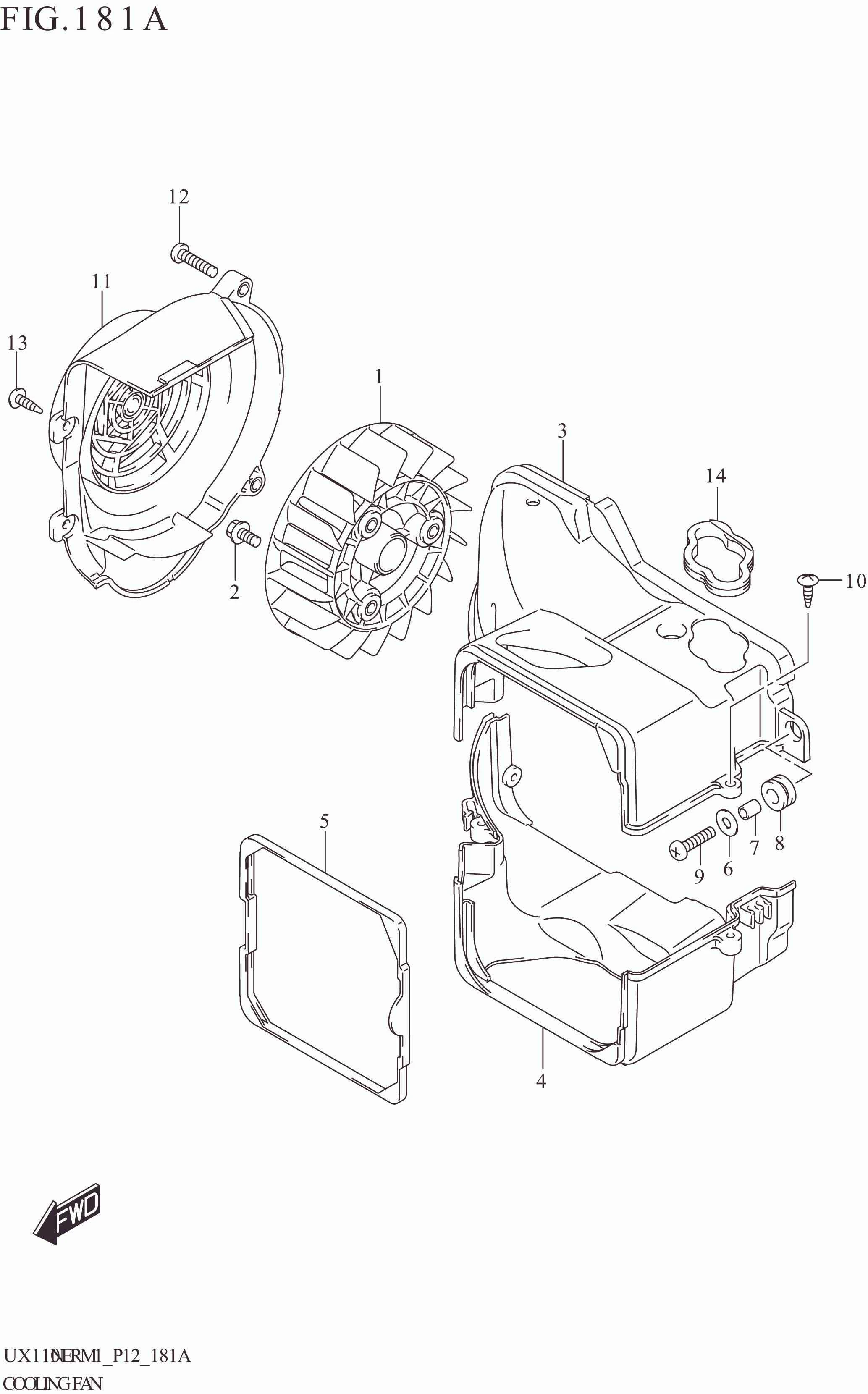

FIG. 181A COOLING FAN

FIG. 181A COOLING FAN
No No. Part Description Qty Price Per Pcs Remarks
1 17110-09J00-000 FAN,COOLING 1 Rp30.500
2 01550-0612A-000 BOLT 3 Rp3.500
3 17121-09JB0-000 COWLING,CYLINDER UPPER 1 Rp34.000
4 17122-09JA0-000 COWLING,CYLINDER LWR 1 Rp40.500
5 17123-09J00-000 MOLD,CYLINDER COWLING 1 Rp17.500
6 09160-06129-000 WASHER (6.5X16X1) 1 Rp5.500
7 09180-06307-000 SPACER (6.5X9X10) 1 Rp5.000
8 09320-09016-000 CUSHION (9X18X9.5) 1 Rp4.000
9 02112-0625A-000 SCREW 1 Rp4.000
10 03541-0516A-000 SCREW 2 Rp3.500
11 17130-09J50-000 COWLING COMP,FAN 1 Rp35.500
12 02112-1625A-000 SCREW 2 Rp3.500
13 03541-0516A-000 SCREW 2 Rp3.500
14 17124-39J00-000 MOLD,TENSIONER ADJUSTER 1 Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
