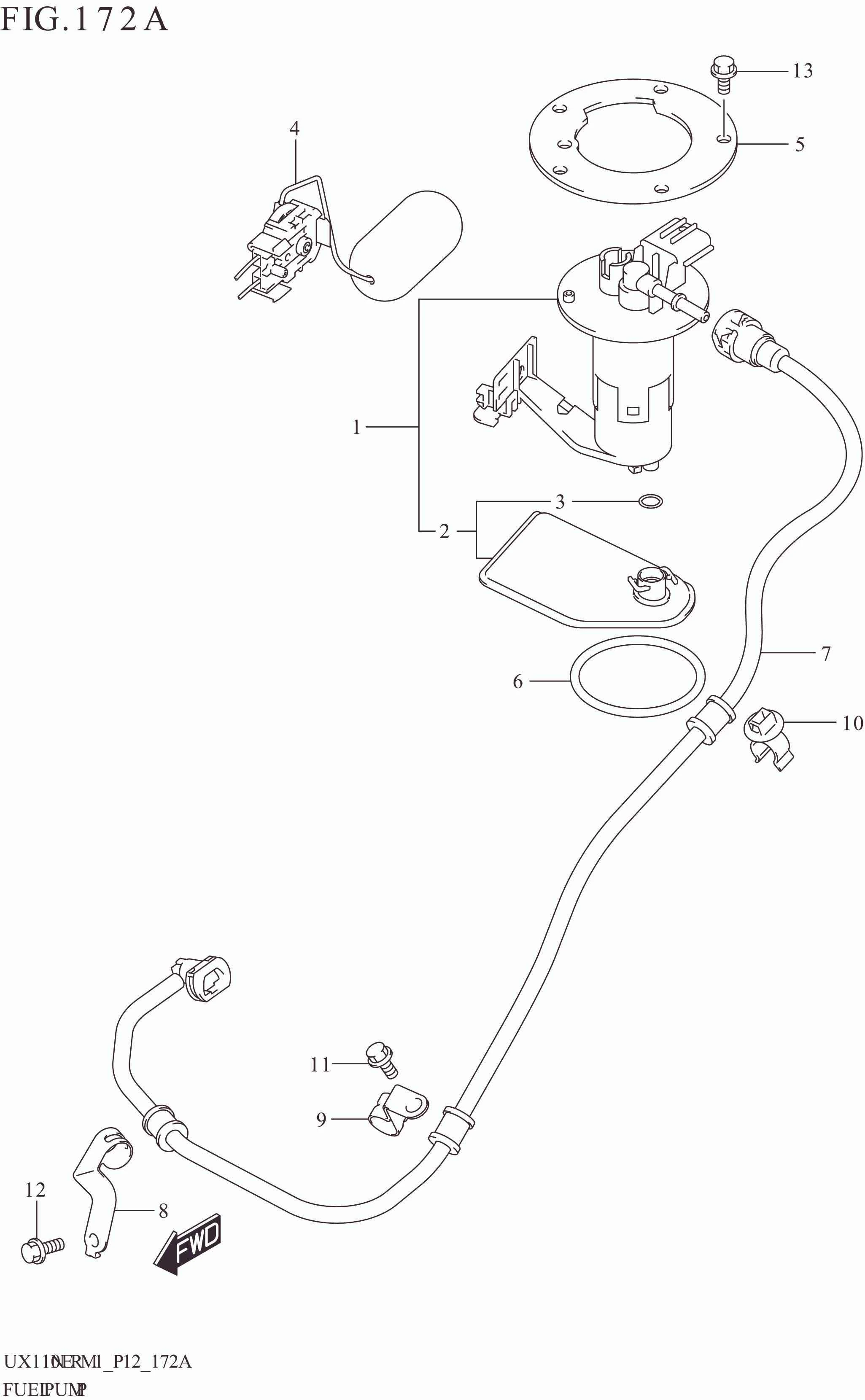

FIG. 172A FUEL PUMP

FIG. 172A FUEL PUMP
No No. Part Description Qty Price Per Pcs Remarks
1 15100-09JB2-000 PUMP ASSY,FUEL 1 Rp517.500
2 15420-09JB0-000 .FILTER,FUEL 1 Rp266.500
3 15424-09JB0-000 ..O RING 1 Rp10.000
4 34810-49K10-000 GAUGE ASSY,FUEL LEVEL SENDER 1 Rp108.500
5 15121-09JC0-000 PLATE,FUEL PUMP 1 Rp10.500
6 15201-09JA0-000 O-RING,FUEL PUMP 1 Rp54.500
7 15810-49K01-000 HOSE,FUEL 1 Rp127.500
8 15891-49K00-000 CLAMP,FUEL HOSE FR 1 Rp10.500
9 15892-49K00-000 CLAMP,FUEL HOSE MR 1 Rp7.000
10 15893-09JA0-000 CLAMP,FUEL HOSE RR 1 Rp11.000
11 01547-0610A-000
SUB: 01547-0612A-000		 BOLT 1 Rp3.000
12 01547-0610A-000
SUB: 01547-0612A-000		 BOLT 1 Rp3.000
13 01547-0610A-000 BOLT 5 Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
