Nex II Cross

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.102A CYLINDER HEAD COVER FIG. 103A CYLINDER HEAD FIG. 107A CYLINDER FIG . 108A CRANKCASE FIG. 112A CRANKCASE COVER FIG. 120A CRANKSHAFT FIG. 126A CAMSHAFT/VALVE FIG. 127A CAM CHAIN FIG. 140A THROTTLE BODY FIG. 155A AIR CLEANER FIG. 163A MUFFLER FIG. 170A OIL PUMP FIG. 172A FUEL PUMP FIG. 181A COOLING FAN FIG. 210A TRANSMISSION (1)FIG. 211A TRANSMISSION (2)FIG. 240A KICK STARTER

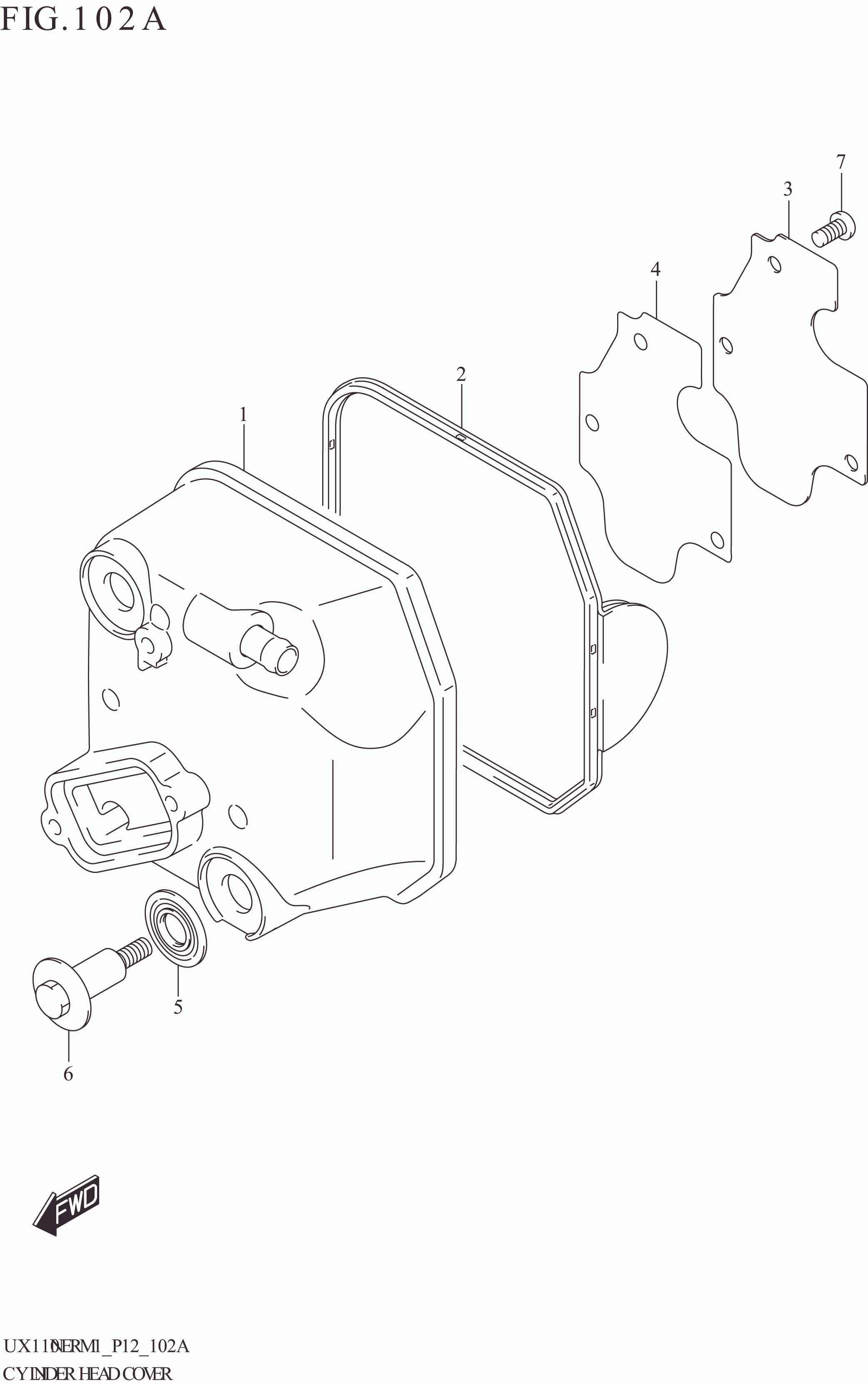

FIG.102A CYLINDER HEAD COVER

FIG.102A CYLINDER HEAD COVER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	11170-09J30-000	COVER,CYLINDER HEAD	1	Rp251.500
2	11173-09J00-000	GASKET,CYL HEAD COVER	1	Rp30.500
3	11176-09J10-000	PLATE,BREATHER (T:0.8)	1	Rp5.000
4	11177-09J00-000	GASKET,BREATHER PLATE	1	Rp7.000
5	11191-27E40-000	WASHER,HEAD COVER	2	Rp13.000
6	09119-06120-000	BOLT,CYL HEAD COVER (6X21.7)	2	Rp11.000
7	DISCONTINUE SUB: 02112-0510A-000	SCREW	3	-

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
