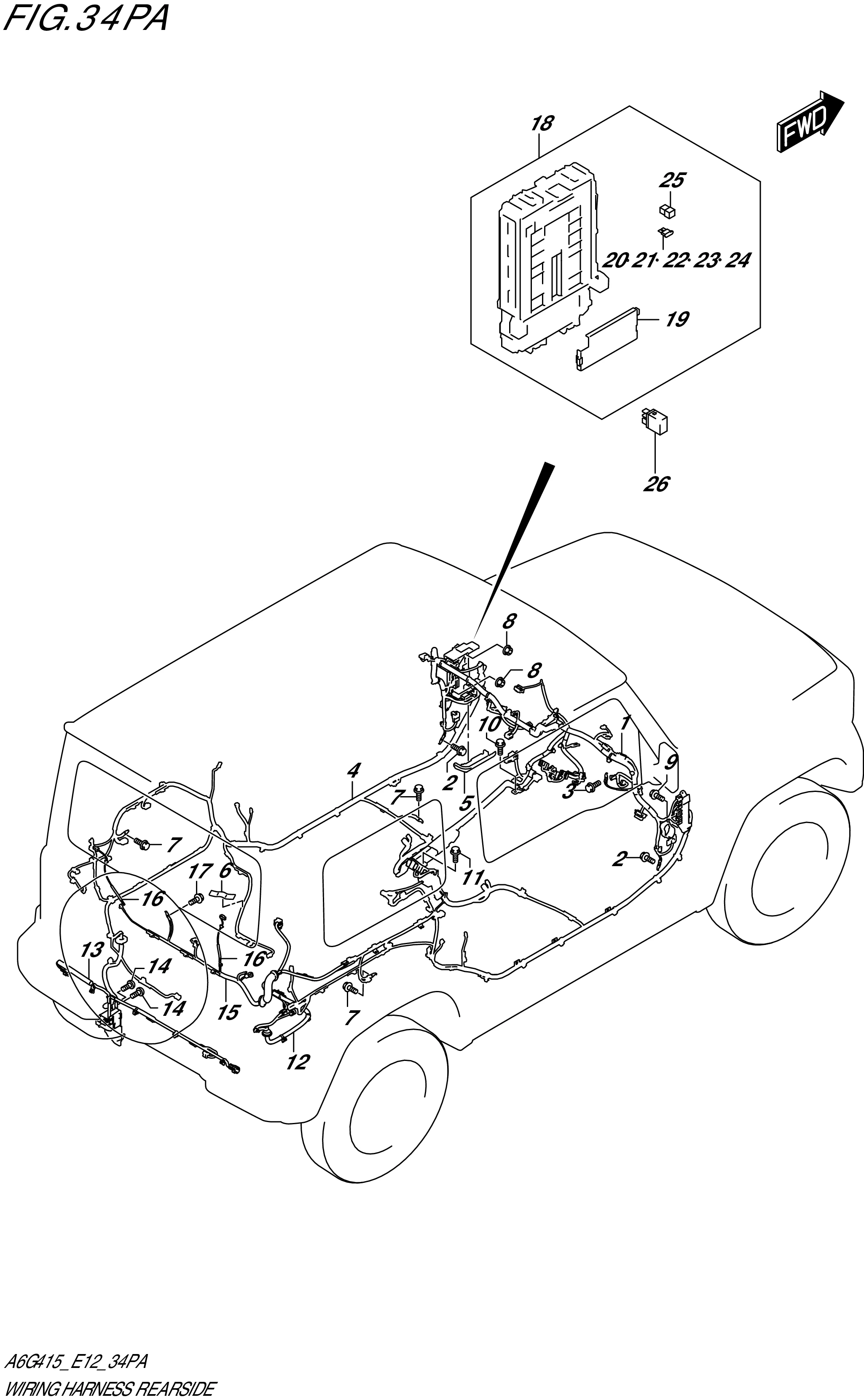

FIG. 34PA - WIRING HARNESS REAR SIDE

FIG. 34PA - WIRING HARNESS REAR SIDE
No No. Part Description Qty Price Per Pcs Remarks
1-2 36620-78R71-000 HARNESS ASSY,I/P 1 Rp10.383.500
1-1 36620-78RE0-000 HARNESS ASSY,I/P 1 Rp9.905.500
2 09115-06005-000 BOLT (6X16) 2 Rp14.000
3 02162-0612A-000 SCREW (6X12) 1 Rp11.000
4 36630-77RA0-000 HARNESS ASSY,FLOOR 1 Rp4.934.000
5 36744-77R00-000 COVER,CONNECTOR HOLDER L 1 Rp143.000
6 36930M82000-000 COVER,HARNESS 1 Rp6.500
7 09115-06005-000 BOLT (6X16) 3 Rp14.000
8 08316-1008A-000 NUT 2 Rp3.500
9 01551-0616C-000 BOLT (6X16) 1 Rp14.500
10 02162-0612A-000 SCREW (6X12) 1 Rp11.000
11 02162-0612A-000 SCREW (6X12) 1 Rp11.000
12 36840-77R00-000 WIRE,FRAME 1 Rp937.500
13 36843-78R10-000 WIRE,RR BUMPER 1 Rp840.000
14 03541-0516A-000
SUB: 03541M0516A-000		 SCREW 2 Rp3.500
15 36680-77R10-000 HARNESS ASSY,BACK DOOR 1 Rp994.500
16 36890-77R00-000 WIRE,RR DEF 2 Rp560.500
17 09115-06005-000 BOLT (6X16) 1 Rp14.000
18 36710-52R00-000 BOX ASSY,JUNCTION 1 Rp1.918.000
19 36699-52R00-000 .COVER,FUSE 1 Rp73.000
20 09481-05501-000 .FUSE,5A (5A) 12 Rp17.000
21 09481-10504-000 .FUSE (10A) 11 Rp12.500
22 09481-15504-000 .FUSE (15A) 7 Rp13.000
23 09481-20504-000 .FUSE (20A) 5 Rp14.500
24 09481-25504-000 .FUSE (25A) 1 Rp17.500
25 09481-30403-000 .FUSE (30A) 1 Rp41.000
26 38860-76F01-000
SUB: 38860B76F01N000		 RELAY ASSY 1 Rp47.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
