New Jimny 3 Doors

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 351- ELECTRICAL CONTROL INSTRUMENTAL PANELFIG. 360A- LOCK SETFIG. 370A- FRONT WINDOW WIPERFIG. 374A- WINDOW WASHERFIG. 376A- REAR WINDOW WIPERFIG. 392A- AUDIO (N_TUNER)FIG. 392B- AUDIO (W_TUNER)FIG.300A-ENGINE ELECTRICALFIG.302A-STARTING MOTORFIG.304A-GENERATORFIG.320A-BATTERYFIG/324A-SPEEDOMETERFIG.330A-HEADLAMPFIG.332A-FRONT FOG LAMPFIG.334A-TURN SIGNAL LAMPFIG.338A-ROOM LAMPFIG.344B-ENGINE ROOM HARNESS (4AT)FIG.348A-ENGINE HARNESS BRACKET (5MT)FIG.348B-ENGINE HARNESS BRACKET (4AT)FIG.350A-ELECTRICAL CONTROL BODYFIG.336A-REAR LAMPFIG.344A-ENGINE ROOM HARNESS (5MT)FIG. 34PA - WIRING HARNESS REAR SIDEFIG. 34WA - BODY HARNESS

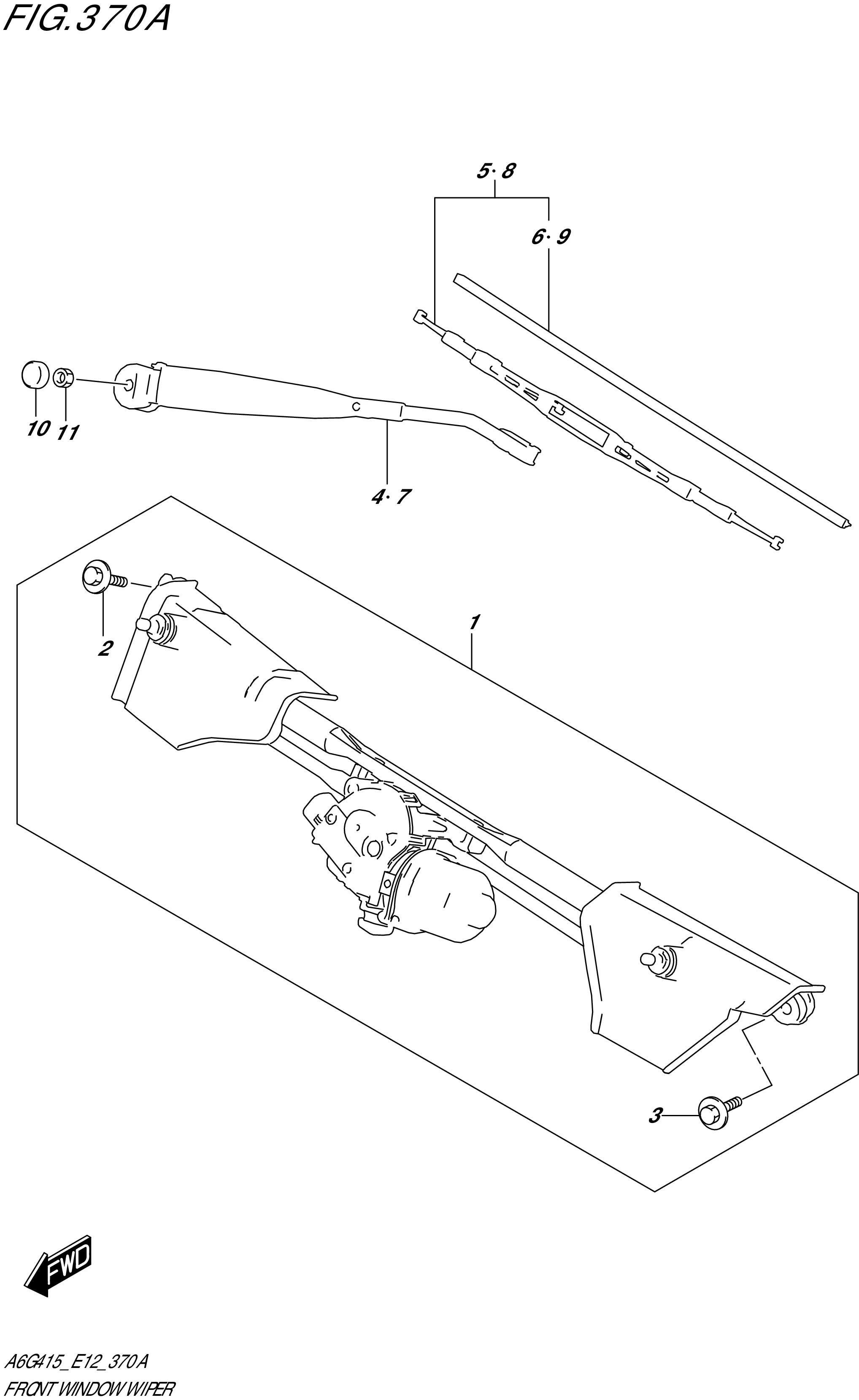

FIG. 370A- FRONT WINDOW WIPER

FIG. 370A- FRONT WINDOW WIPER
No No. Part Description Qty Price Per Pcs Remarks
1 38100-77R10-000 WIPER ASSY,WINDSHIELD 1 Rp3.844.000
2 38116M72J00-000 .BOLT,WIPER DRIVER 1 Rp48.000
3 38116-82K00-000 .BOLT,WIPER ASST 1 Rp53.000
4 38310-77R10-000 ARM ASSY,WIPER DRVR 1 Rp436.500
5 38340-77R10-000 BLADE ASSY,WIPER 1 Rp357.500
6 38346-77R00-000 .RUBBER,BLADE 1 Rp138.000
7 38330-77R10-000 ARM ASSY,WIPER ASST 1 Rp459.000
8 38340-77R10-000 BLADE ASSY,WIPER 1 Rp357.500
9 38346-77R00-000 .RUBBER,BLADE 1 Rp138.000
10 38315-67L10-000
SUB: 38315B67L10N000		 CAP,WIPER PIVOT 2 Rp4.500
11 08310-0008A-000
SUB: 08310M0008A-000		 NUT 2 Rp12.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
