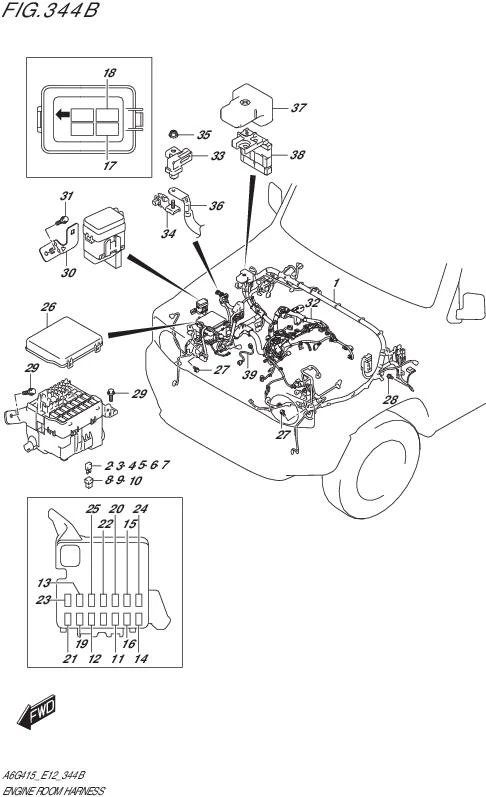

FIG.344B-ENGINE ROOM HARNESS (4AT)

FIG.344B-ENGINE ROOM HARNESS (4AT)
No No. Part Description Qty Price Per Pcs Remarks
1 36610-78RL0-000 HARNESS ASSY,MAIN 1 Rp17.888.500
2 09481-05501-000 .FUSE(5A) 1 Rp17.000
3 09481-10504-000 .FUSE (10A) 2 Rp12.500
4 09481-15504-000 .FUSE (15A) 7 Rp13.000
5 09481-20504-000 .FUSE (20A) 1 Rp14.500
6 09481-25504-000 .FUSE (25A) 2 Rp17.500
7 09481-30504-000 .FUSE (30A) 2 Rp15.000
8 09481-30403-000 .FUSE (30A) 2 Rp41.000
9 09481M40403-000 .FUSE (40A) 3 Rp22.500
10 09481-50403-000 .FUSE (50A) 2 Rp51.000
11 38860-76F01-000
SUB: 38860B76F01N000		 .RELAY ASSY 1 Rp47.000
12 38860-76F01-000
SUB: 38860B76F01N000		 .RELAY ASSY 1 Rp47.000
13 38860-76F01-000
SUB: 38860B76F01N000		 .RELAY ASSY 1 Rp47.000
14 38860-76F01-000
SUB: 38860B76F01N000		 .RELAY ASSY 1 Rp47.000
15 38860-76F01-000
SUB: 38860B76F01N000		 .RELAY ASSY 1 Rp47.000
16 38860-76F01-000
SUB: 38860B76F01N000		 .RELAY ASSY 1 Rp47.000
17 38860-76F01-000
SUB: 38860B76F01N000		 .RELAY ASSY 1 Rp47.000
18 38860-76F01-000
SUB: 38860B76F01N000		 .RELAY ASSY 1 Rp47.000
19 38860-76F01-000
SUB: 38860B76F01N000		 .RELAY ASSY 1 Rp47.000
20 38860-76F01-000
SUB: 38860B76F01N000		 .RELAY ASSY 1 Rp47.000
21 38860-76F01-000
SUB: 38860B76F01N000		 RELAY ASSY 1 Rp47.000
22 38860-76F01-000
SUB: 38860B76F01N000		 RELAY ASSY 1 Rp47.000
23 38860-76F01-000
SUB: 38860B76F01N000		 RELAY ASSY 1 Rp47.000
24 38860-76F01-000
SUB: 38860B76F01N000		 RELAY ASSY 1 Rp47.000
25 38860-78F00-000 RELAY ASSY 1 Rp274.000
26 36717-77R02-000
SUB: 36717-77R00-000		 COVER,RELAY BOX 1 Rp154.500
27 09115-06005-000 BOLT (6X16) 2 Rp14.000
28 09115-06005-000 BOLT (6X16) 1 Rp14.000
29 01551-0616C-000 BOLT (6X16) 2 Rp14.500
30 36651-77R20-000 BRACKET,SUB RELAY BOX 1 Rp69.000
31 01551-0616C-000 BOLT (6X16) 1 Rp14.500
32 36950-78R10-000 HARNESS SET,ENG 1 Rp11.483.500
33 32810-74P00-000 .SENSOR ASSY,CURRENT 1 Rp1.190.500
34 33886-82K00-000 .TERMINAL 1 Rp171.500
35 33887-71L00-000 .NUT 1 Rp23.500
36 36650-78R10-000 .HARNESS ASSY,ENG 1 Rp11.721.500
37 36694-75J00-000 ..COVER,BATTERY TERMINAL 1 Rp144.500
38 36739M68P00-000 ..FUSE,BATTERY 1 Rp543.500
39 33222-78R00-000 WIRE,CKP 1 Rp337.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
