New Jimny 3 Doors

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 351- ELECTRICAL CONTROL INSTRUMENTAL PANELFIG. 360A- LOCK SETFIG. 370A- FRONT WINDOW WIPERFIG. 374A- WINDOW WASHERFIG. 376A- REAR WINDOW WIPERFIG. 392A- AUDIO (N_TUNER)FIG. 392B- AUDIO (W_TUNER)FIG.300A-ENGINE ELECTRICALFIG.302A-STARTING MOTORFIG.304A-GENERATORFIG.320A-BATTERYFIG/324A-SPEEDOMETERFIG.330A-HEADLAMPFIG.332A-FRONT FOG LAMPFIG.334A-TURN SIGNAL LAMPFIG.338A-ROOM LAMPFIG.344B-ENGINE ROOM HARNESS (4AT)FIG.348A-ENGINE HARNESS BRACKET (5MT)FIG.348B-ENGINE HARNESS BRACKET (4AT)FIG.350A-ELECTRICAL CONTROL BODYFIG.336A-REAR LAMPFIG.344A-ENGINE ROOM HARNESS (5MT)FIG. 34PA - WIRING HARNESS REAR SIDEFIG. 34WA - BODY HARNESS

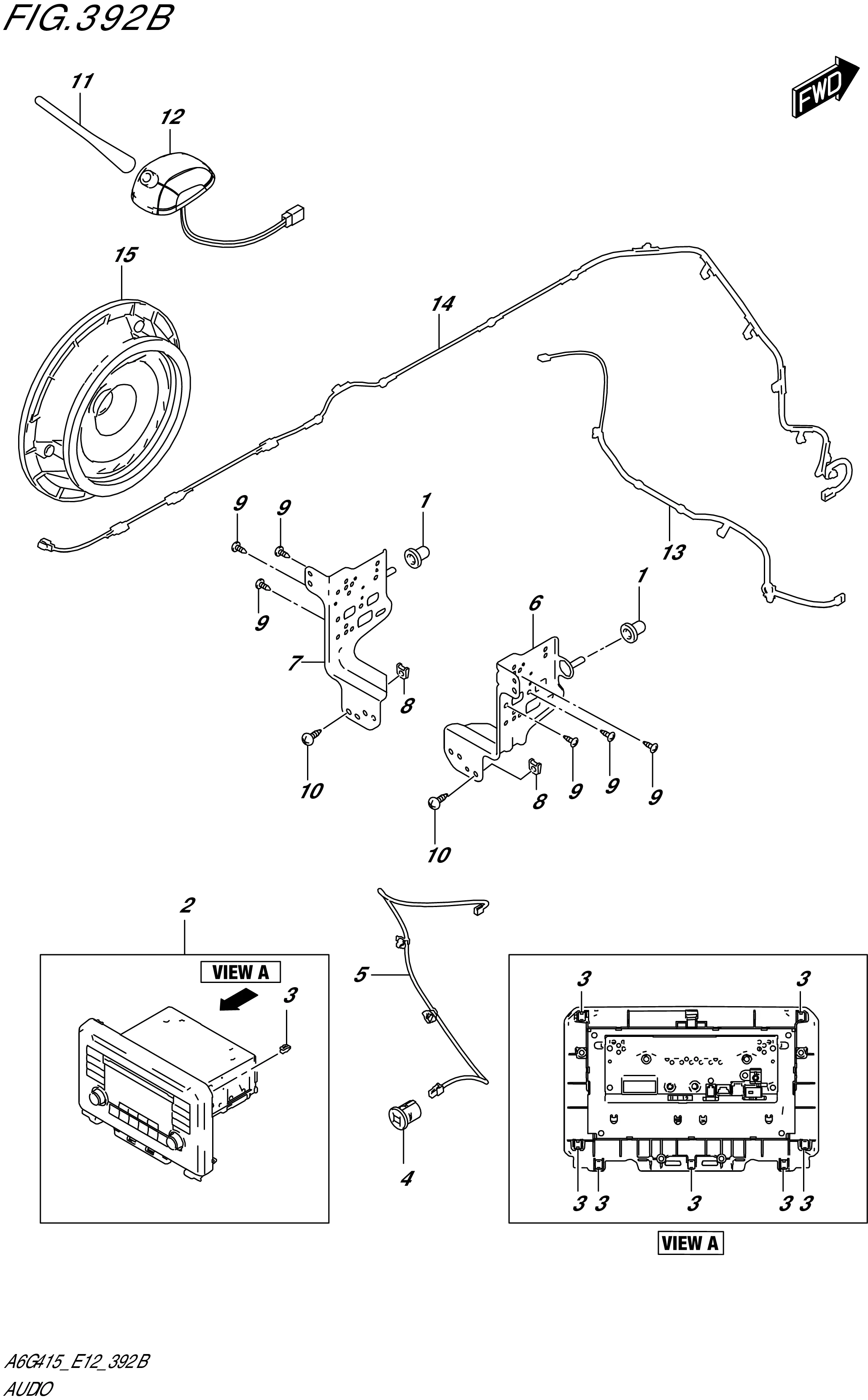

FIG. 392B- AUDIO (W_TUNER)

FIG. 392B- AUDIO (W_TUNER)
No No. Part Description Qty Price Per Pcs Remarks
1 34955-59J00-000 BUSH,RADIO BRKT 2 Rp18.500
2 DISCONTINUE
SUB: 39101-77R60-BKZ		 TUNER ASSY (BLACK/CHROME) 1 -
3 09409-08352-000 .CLIP 7 Rp19.000
4 39105-80P00-000 SOCKET,USB 1 Rp232.500
5 39106-77R00-000 CABLE,USB 1 Rp663.000
6 39321-77R00-000 BRACKET,TUNER,R 1 Rp98.000
7 39322-77R00-000 BRACKET,TUNER,L 1 Rp98.000
8 09148-05045-000
SUB: 09148B05045N000		 NUT (M5) 2 Rp4.000
9 02142-0508A-000
SUB: 02142B0508AN000		 SCREW 6 Rp3.500
10 03541-0516A-000
SUB: 03541M0516A-000		 SCREW 2 Rp3.500
11 39251-64J00-000 ROD,ANTENNA 1 Rp182.500
12 39253-71L11-000 BASE, ANTENNA 1 Rp865.500
13 39270-77R00-000 FEEDER,I/P 1 Rp303.000
14 39271-77R00-000 FEEDER,ROOF 1 Rp394.500
15 39102-77R00-000 SPEAKER ASSY 2 Rp664.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
