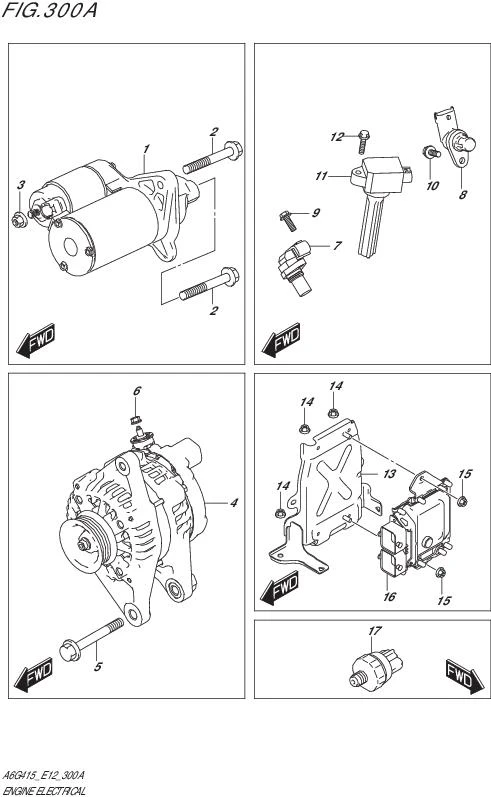

FIG.300A-ENGINE ELECTRICAL

FIG.300A-ENGINE ELECTRICAL
No No. Part Description Qty Price Per Pcs Remarks
1 31100-78R00-000 MOTOR ASSY,STARTING 1 Rp6.992.500
2 01550-0825A-000 BOLT (8X25) 4 Rp3.500
3 01550-1060A-000
SUB: 01550M1060A-000		 BOLT (10X60) 2 Rp5.500
4 08316-1008A-000 NUT 1 Rp3.500
5 31400-81P00-000 GENERATOR ASSY 1 Rp9.034.500
6 01550-1085A-000 BOLT 1 Rp7.000
7 08316-1006A-000 NUT (6X12) 1 Rp2.000
8-1 33220-64L10-000 SENSOR ASSY,CAM POSN 1 Rp883.000
8-2 33220-86P00-000 SENSOR ASSY,POSN 1 Rp869.500
9 09103-06283-000 BOLT,6X16 (6X16) 1 Rp20.500
10 01550-0616A-000
SUB: 01550M0616A-000		 BOLT (6X16) 1 Rp3.500
11 33400-78R01-000
SUB: 33400-78R00-000		 COIL ASSY,IGNITION 4 Rp1.560.000
12 01560-0625B-000 BOLT (6X23) 4 Rp23.000
13 33924-78R00-000 BRACKET,EPI CONT 1 Rp338.500
14 09159-06076-000 NUT (M6) 3 Rp19.500
15 09159-06076-000 NUT (M6) 2 Rp19.500
16 33910-78R00-000 BASE ASSY,EPI CONT 1 Rp15.211.000
17 37820-80GP0-000 SWITCH ASSY,OIL PRESSURE 1 Rp144.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
