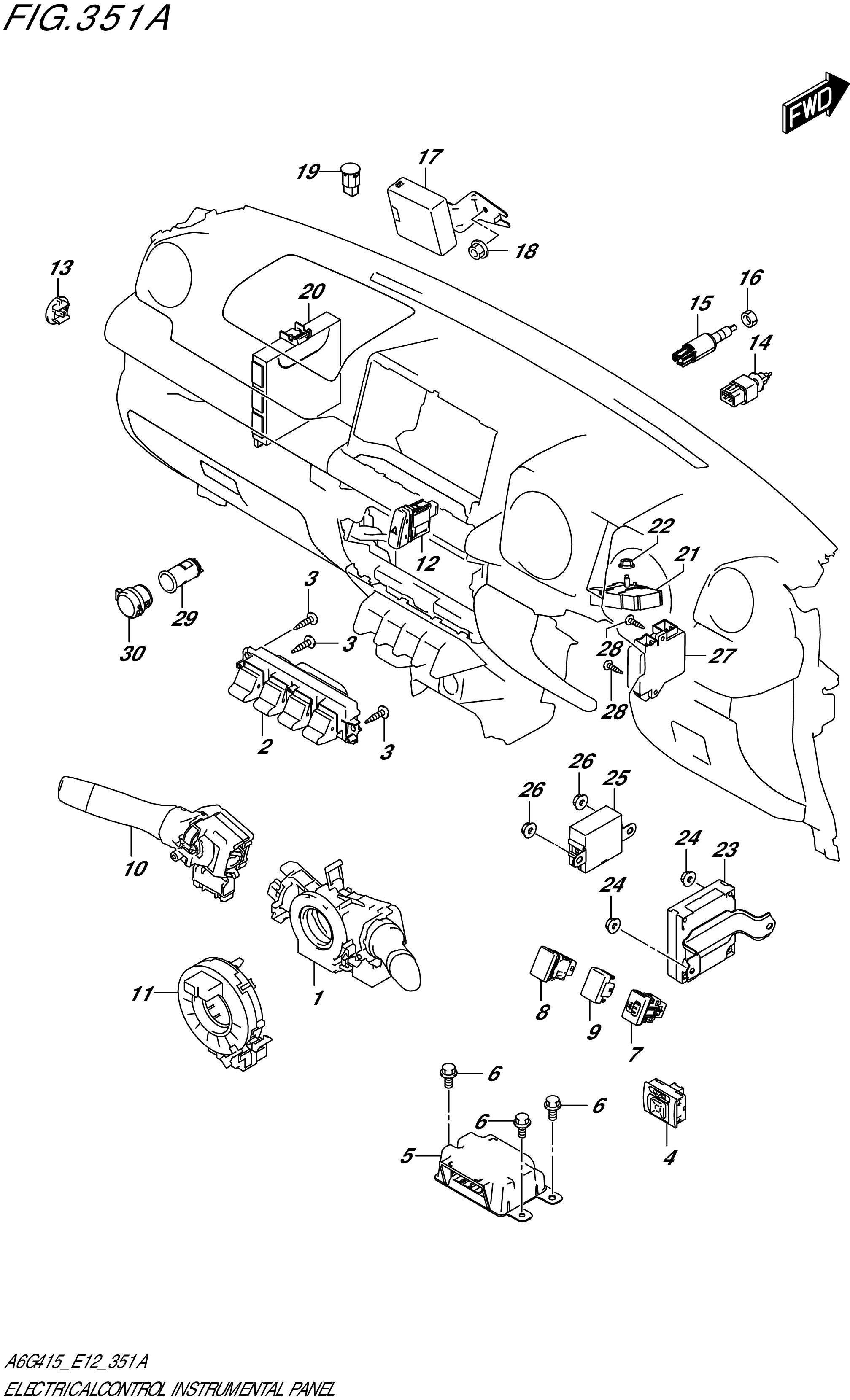

FIG. 351- ELECTRICAL CONTROL INSTRUMENTAL PANEL

FIG. 351- ELECTRICAL CONTROL INSTRUMENTAL PANEL
No No. Part Description Qty Price Per Pcs Remarks
1 37210-74PA3-000
SUB: 37210-74PA2-000		 SWITCH ASSY,LIGHTING & TURN 1 Rp2.196.000
2 37595-77R01-BJA
SUB: 37595-77R00-BJA		 SWITCH ASSY,MODE SELECT (BLACK/CHROME) 1 Rp2.954.000
3 03541-0516A-000
SUB: 03541M0516A-000		 SCREW 3 Rp3.500
4 37950-77R10-000 SWITCH ASSY,MIRROR 1 Rp474.000
5 38910-77R10-000 CONTROLLER ASSY,A/B 1 Rp7.665.500
6 09115-06005-000 BOLT (6X16) 3 Rp14.000
7 35180-81P00-000 SWITCH ASSY,HEADLAMP LEVELING 1 Rp280.500
8 37930-81P00-000 SWITCH ASSY,HEADLAMP CLEANER 1 Rp337.500
9 37285-74P11-000
SUB: 37285-74P00-000		 CAP,OPTION SW HOLE 3 Rp41.000
10 37310-74P10-000 SWITCH ASSY,WIPER & WASHER 1 Rp1.305.500
11 37480-79R20-000 CABLE ASSY,CONTACT COIL 1 Rp1.544.000
12 37430-77R00-000 SWITCH ASSY,HAZARD WARNING 1 Rp350.500
13 38975-57L00-5PK CAP,A/B ON OFF SWITCH HOLE (BLACK) 1 Rp36.500
14 37740-81K00-000
SUB: 37740-75H10-000		 SWITCH ASSY,STOP LAMP 1 Rp77.500
15 37970-64J00-000 SWITCH ASSY,CLUTCH 1 Rp507.000
16 09140-10043-000 NUT (10X6) 1 Rp14.500
17 38622-78R00-000 CONTROLLER ASSY,HLC 1 Rp2.943.500
18 DISCONTINUE
SUB: 09159-06108-000		 NUT (M6) 1 -
19 38680-62R00-000 SENSOR ASSY,AUTO LIGHT 1 Rp639.500
20 36775-77RR4-000
SUB: 36775-77RR2-000		 CONTROLLER ASSY,BODY ELEC 1 Rp4.649.000
21 33580-79R03-000
SUB: 33580-79R01-000		 CONTROLLER ASSY,GATEWAY 1 Rp3.035.000
22 08316-1006A-000 NUT (6X12) 1 Rp2.000
23 3E130-78R20-000 CONTROLLER ASSY,AT 1 Rp10.634.000
24 09159-08150-000 NUT (M8X1.25) 2 Rp16.500
25 38885-78R01-000
SUB: 38885-78R00-000		 CONTROLLER ASSY,4WD SHIFT 1 Rp4.107.500
26 08316-1008A-000 NUT 2 Rp3.500
27 38720-77R01-000
SUB: 38720-77R00-000		 CONTROLLER ASSY,EPS 1 Rp6.344.000
28 02142-0516B-000
SUB: 02142B0516BN000		 SCREW 2 Rp4.000
29 39420-76F00-000 BODY,SOCKET 1 Rp103.000
30 39441-63J01-P4Z COVER,SOCKET (GRAY) 1 Rp65.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
