  5. FIG. 376A- REAR WINDOW WIPER

New Jimny 3 Doors

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 351- ELECTRICAL CONTROL INSTRUMENTAL PANELFIG. 360A- LOCK SETFIG. 370A- FRONT WINDOW WIPERFIG. 374A- WINDOW WASHERFIG. 376A- REAR WINDOW WIPERFIG. 392A- AUDIO (N_TUNER)FIG. 392B- AUDIO (W_TUNER)FIG.300A-ENGINE ELECTRICALFIG.302A-STARTING MOTORFIG.304A-GENERATORFIG.320A-BATTERYFIG/324A-SPEEDOMETERFIG.330A-HEADLAMPFIG.332A-FRONT FOG LAMPFIG.334A-TURN SIGNAL LAMPFIG.338A-ROOM LAMPFIG.344B-ENGINE ROOM HARNESS (4AT)FIG.348A-ENGINE HARNESS BRACKET (5MT)FIG.348B-ENGINE HARNESS BRACKET (4AT)FIG.350A-ELECTRICAL CONTROL BODYFIG.336A-REAR LAMPFIG.344A-ENGINE ROOM HARNESS (5MT)FIG. 34PA - WIRING HARNESS REAR SIDEFIG. 34WA - BODY HARNESS

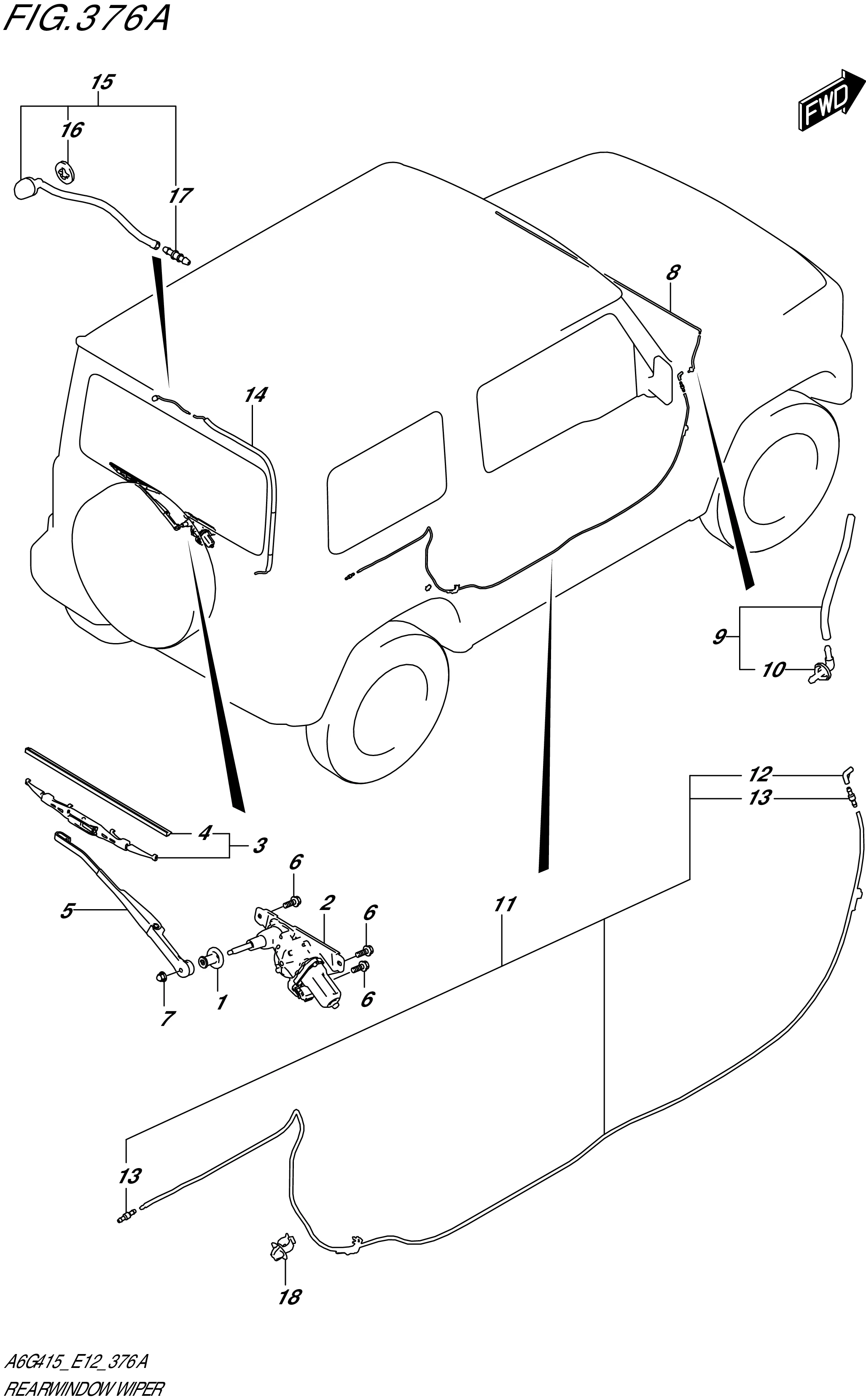

FIG. 376A- REAR WINDOW WIPER

FIG. 376A- REAR WINDOW WIPER
No No. Part Description Qty Price Per Pcs Remarks
1 38274-77R00-000 CAP,WIPER PIVOT 1 Rp71.000
2 38810-77R00-000 WIPER ASSY,RR WINDOW 1 Rp2.634.000
3 38340-77R40-000 BLADE ASSY,WIPER 1 Rp329.000
4 38346-77R20-000 .RUBBER,BLADE 1 Rp85.000
5 38821-77R00-000 ARM ASSY,RR WIPER 1 Rp410.500
6 09122-76001-000 SCREW (6X16) 3 Rp16.500
7 08313-2006A-000 NUT 1 Rp14.000
8 38834-77R00-000 HOSE ASSY,RR WASHER NO.1 1 Rp138.500
9 38834-77R10-000 HOSE ASSY,RR WASHER NO.2 1 Rp90.000
10 38496-76R00-000 .L-JOINT 1 Rp46.500
11 38834-77R20-000 HOSE ASSY,RR WASHER FLOOR 1 Rp213.500
12 38454-71B10-000 .JOINT,ELBOW 1 Rp61.000
13 38496-56B00-000 .CONNECTOR 2 Rp33.500
14 38835-77R00-000 HOSE ASSY,RR WASHER BACK DOOR 1 Rp399.500
15 38840-77R00-000 NOZZLE ASSY,REAR WASHER 1 Rp129.000
16 38843-60B00-000 .GASKET,WASHER NOZZLE 1 Rp41.000
17 38833M79500-000 .VALVE,CHECK 1 Rp8.000
18 09403-08333-000 CLAMP 1 Rp22.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
