New Jimny 3 Doors

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 351- ELECTRICAL CONTROL INSTRUMENTAL PANELFIG. 360A- LOCK SETFIG. 370A- FRONT WINDOW WIPERFIG. 374A- WINDOW WASHERFIG. 376A- REAR WINDOW WIPERFIG. 392A- AUDIO (N_TUNER)FIG. 392B- AUDIO (W_TUNER)FIG.300A-ENGINE ELECTRICALFIG.302A-STARTING MOTORFIG.304A-GENERATORFIG.320A-BATTERYFIG/324A-SPEEDOMETERFIG.330A-HEADLAMPFIG.332A-FRONT FOG LAMPFIG.334A-TURN SIGNAL LAMPFIG.338A-ROOM LAMPFIG.344B-ENGINE ROOM HARNESS (4AT)FIG.348A-ENGINE HARNESS BRACKET (5MT)FIG.348B-ENGINE HARNESS BRACKET (4AT)FIG.350A-ELECTRICAL CONTROL BODYFIG.336A-REAR LAMPFIG.344A-ENGINE ROOM HARNESS (5MT)FIG. 34PA - WIRING HARNESS REAR SIDEFIG. 34WA - BODY HARNESS

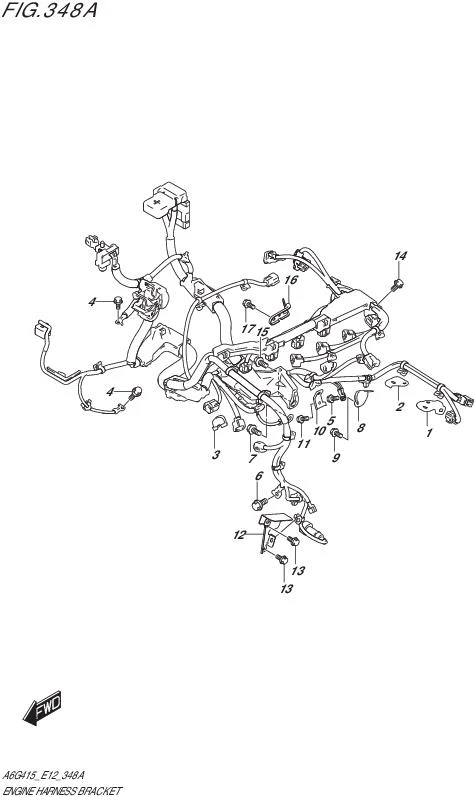

FIG.348A-ENGINE HARNESS BRACKET (5MT)

FIG.348A-ENGINE HARNESS BRACKET (5MT)
No No. Part Description Qty Price Per Pcs Remarks
1 36653-77R50-000 BRACKET,ENG HARN MT 1 Rp121.000
2 36653-77R60-000 BRACKET,ENG HARN MT 1 Rp116.000
3 36997-72M10-000 COVER,TERMINAL 1 Rp58.500
4 09115-06005-000 BOLT (6X16) 2 Rp14.000
5 01550M0612A-000 BOLT (6X12) 1 Rp5.000
6 01550-0816A-000
SUB: 01550B0816AN000		 BOLT (8X16) 1 Rp6.000
7 01550-1016A-000
SUB: 01550B1016AN000		 BOLT (10X16) 1 Rp5.500
8 36653-77R70-000 BRACKET,ENG HARN MT 1 Rp64.500
9 01550M0612A-000 BOLT (6X12) 1 Rp5.000
10 36651-54M10-000 BRACKET,BTRY GND 1 Rp40.500
11 01550M0612A-000 BOLT (6X12) 1 Rp5.000
12 36653-78R00-000 BRACKET,ENG HARN 1 Rp198.000
13 01550M0612A-000 BOLT (6X12) 2 Rp5.000
14 01550M0612A-000 BOLT (6X12) 1 Rp5.000
15 01550M0612A-000 BOLT (6X12) 1 Rp5.000
16 33221-78R00-000 BRACKET,CKP SENSOR WIRE 1 Rp145.500
17 01550M0612A-000 BOLT (6X12) 1 Rp5.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
