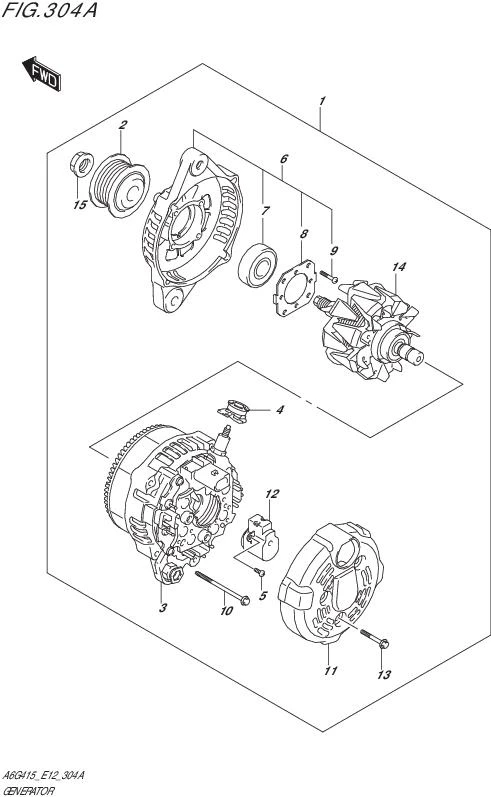

FIG.304A-GENERATOR

FIG.304A-GENERATOR
No No. Part Description Qty Price Per Pcs Remarks
1 31400-81P00-000 GENERATOR ASSY 1 Rp9.034.500
2 31171-81P00-000 .PULLEY 1 Rp963.500
3 31401-81P00-000 .COIL ASSY,ALTERNATOR 1 Rp4.756.000
4 31514-61P20-000 .TERMINAL 1 Rp22.500
5 31516-85250-000 .SCREW 3 Rp22.500
6 31580-81P00-000 .FRAME ASSY 1 Rp593.000
7 31582-58J20-000 ..BEARING 1 Rp416.500
8 31585-82111-000
SUB: 31585B82111N000		 ..RETAINER,BEARING 1 Rp20.000
9 31586-73J00-000 ..SCREW 4 Rp42.500
10 31587-72M00-000 .BOLT 4 Rp49.500
11 31614-74P00-000 .COVER,END,RR 1 Rp156.500
12 31656-61J20-000 .HOLDER ASSY,BRUSH 1 Rp87.000
13 31692-77M00-000 .BOLT 3 Rp22.500
14 31710-81P00-000 .ROTOR ASSY 1 Rp4.711.000
15 31775-86510-000
SUB: 31775B86510N000		 .NUT 1 Rp14.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
