New Jimny 3 Doors

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 351- ELECTRICAL CONTROL INSTRUMENTAL PANELFIG. 360A- LOCK SETFIG. 370A- FRONT WINDOW WIPERFIG. 374A- WINDOW WASHERFIG. 376A- REAR WINDOW WIPERFIG. 392A- AUDIO (N_TUNER)FIG. 392B- AUDIO (W_TUNER)FIG.300A-ENGINE ELECTRICALFIG.302A-STARTING MOTORFIG.304A-GENERATORFIG.320A-BATTERYFIG/324A-SPEEDOMETERFIG.330A-HEADLAMPFIG.332A-FRONT FOG LAMPFIG.334A-TURN SIGNAL LAMPFIG.338A-ROOM LAMPFIG.344B-ENGINE ROOM HARNESS (4AT)FIG.348A-ENGINE HARNESS BRACKET (5MT)FIG.348B-ENGINE HARNESS BRACKET (4AT)FIG.350A-ELECTRICAL CONTROL BODYFIG.336A-REAR LAMPFIG.344A-ENGINE ROOM HARNESS (5MT)FIG. 34PA - WIRING HARNESS REAR SIDEFIG. 34WA - BODY HARNESS

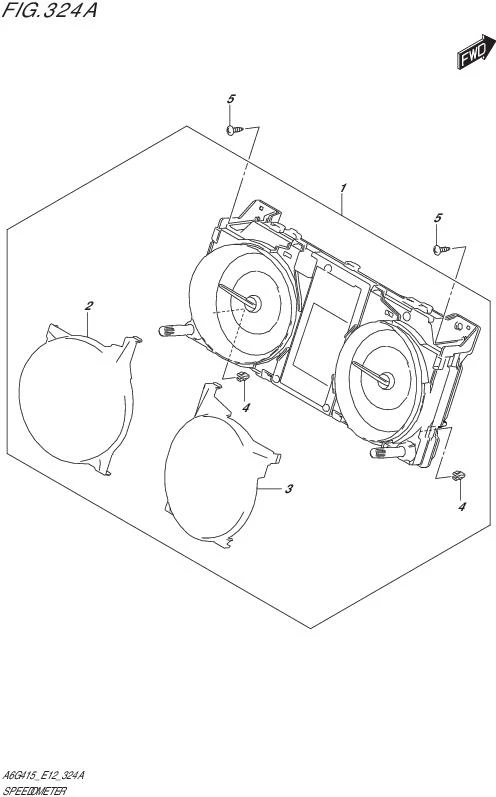

FIG/324A-SPEEDOMETER

FIG/324A-SPEEDOMETER
No No. Part Description Qty Price Per Pcs Remarks
1-1 34100-77RQ0-000 SPEEDOMETER ASSY,COMB 1 Rp7.358.000
1-2 34100-77RU0-000 SPEEDOMETER ASSY,COMB 1 Rp7.348.000
2 34112-77R00-000 .GLASS,METER WINDOW 1 Rp304.500
3 34112-77R10-000 .GLASS,METER WINDOW 1 Rp304.500
4 09409-08351-000 .CLIP 2 Rp21.000
5 03541-0516A-000
SUB: 03541M0516A-000		 SCREW 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
