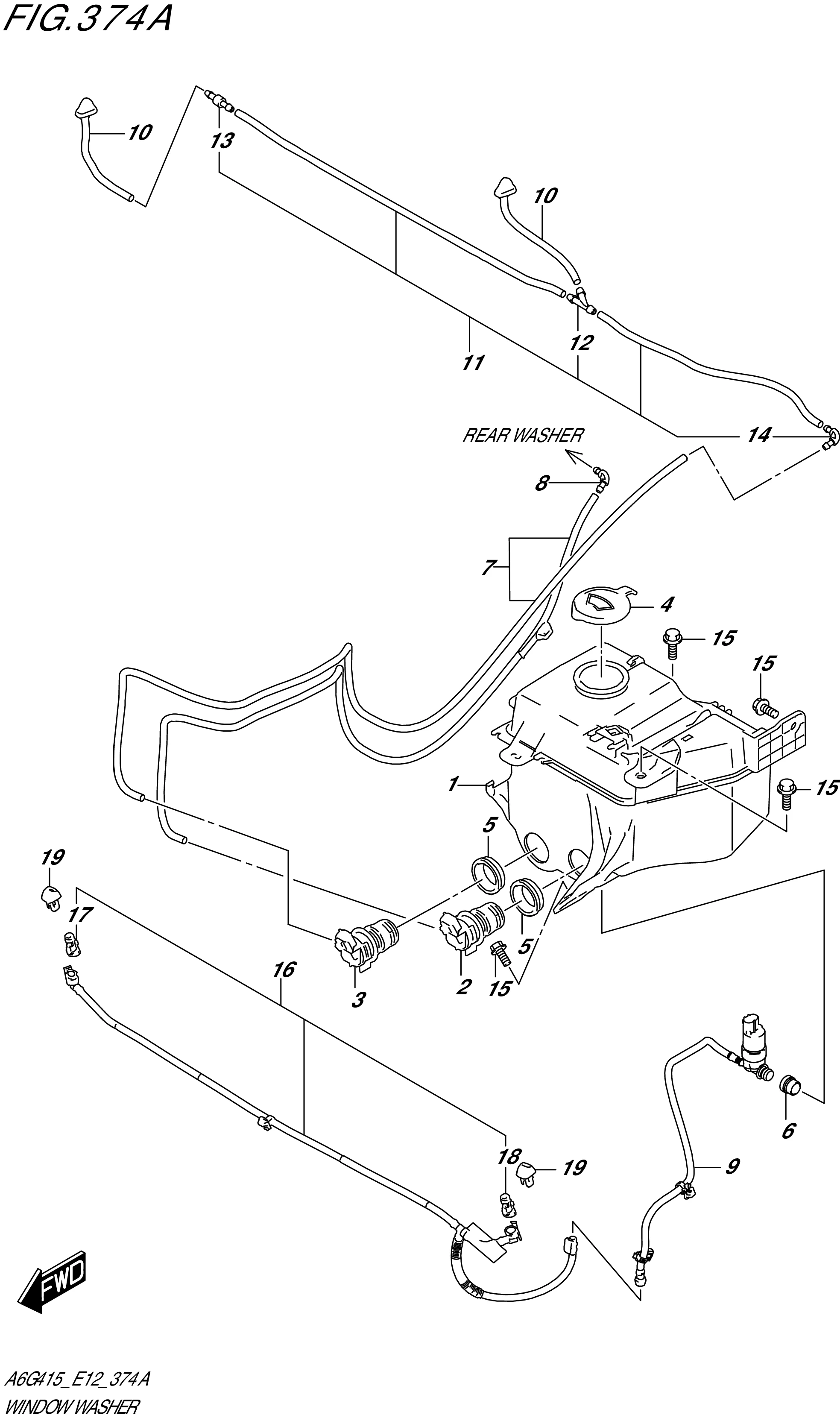

FIG. 374A- WINDOW WASHER

FIG. 374A- WINDOW WASHER
No No. Part Description Qty Price Per Pcs Remarks
1 38403-77R10-000 TANK ASSY,WASHER 1 Rp612.000
2 38410-81M00-000 PUMP ASSY, WASHER 1 Rp753.000
3 38410-84M10-000 PUMP ASSY,WASHER FR 1 Rp551.000
4 38452-81A00-000 CAP,WASHER TANK 1 Rp29.000
5 38453-57L00-000 GROMMET 2 Rp51.000
6 38453-77RA0-000 GROMMET,HLC PUMP 1 Rp99.000
7 38459-77R00-000 HOSE SET 1 Rp181.000
8 38496-57L00-000 L JOINT 1 Rp37.000
9 39120-77R00-000 HOSE ASSY,HEADLAMP CLEANE 1 Rp1.419.500
10 38480-77R00-000 NOZZLE,WASHER 2 Rp114.000
11 38832-77R00-000 HOSE ASSY,FR WASHER 1 Rp138.500
12 38496-60G00-000 .JOINT,3WAY 1 Rp29.000
13 38833M79500-000 .VALVE,CHECK 1 Rp8.000
14 38496-81P10-000 .L-JOINT 1 Rp26.500
15 72435-74P00-000 SCREW 4 Rp18.500
16 39120-77R10-000 HOSE ASSY,HDLMP CLNR NO.2 1 Rp1.284.500
17 39151-77R00-000 .NOZZLE,R 1 Rp401.500
18 39152-77R00-000 .NOZZLE,L 1 Rp401.500
19 39153-77R00-000 CASE ASSY,HEADLAMP CLEANER 2 Rp114.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
