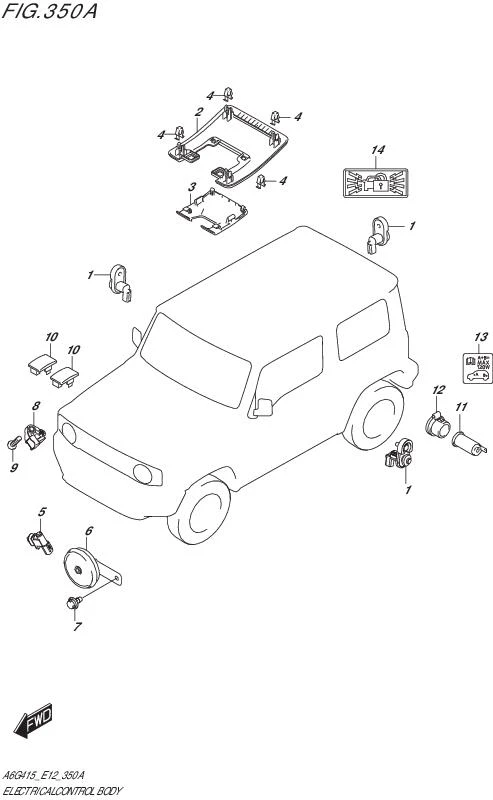

FIG.350A-ELECTRICAL CONTROL BODY

FIG.350A-ELECTRICAL CONTROL BODY
No No. Part Description Qty Price Per Pcs Remarks
1 37670-52R00-000 SET,DOOR SW 3 Rp147.500
2 78171-77R10-6GS COVER,INSIDE REAR VIEW MIRROR(GRAY) 1 Rp216.000
3 78172-77R00-6GS CAP,INSIDE REAR VIEW MIRROR (GRAY) 1 Rp121.000
4 09409-08349-000 CLIP 4 Rp4.500
5 95643-74P00-000 SENSOR, OUTSIDE AIR TEMP 1 Rp280.000
6 38500-77R00-000 HORN ASSY 1 Rp708.500
7 09115-08001-000 BOLT (8X18) 1 Rp21.500
8 38930-77R00-000 SENSOR ASSY,FORWARD 1 Rp1.278.000
9 02162-0620A-000
SUB: 02162-0620C-000		 SCREW 1 Rp5.500
10 37285-75F30-000
SUB: 37285-75F10-000		 CAP,OPTION SW HOLE 2 Rp37.500
11 39420-76F00-000 BODY,SOCKET 1 Rp103.000
12 39441-63J01-P4Z COVER,SOCKET (GRAY) 1 Rp65.500
13 39442-65P00-000 LABEL,ACC SOCKET 1 Rp29.000
14 36771-79M01-000 LABEL,SECURITY ALARM 1 Rp5.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
