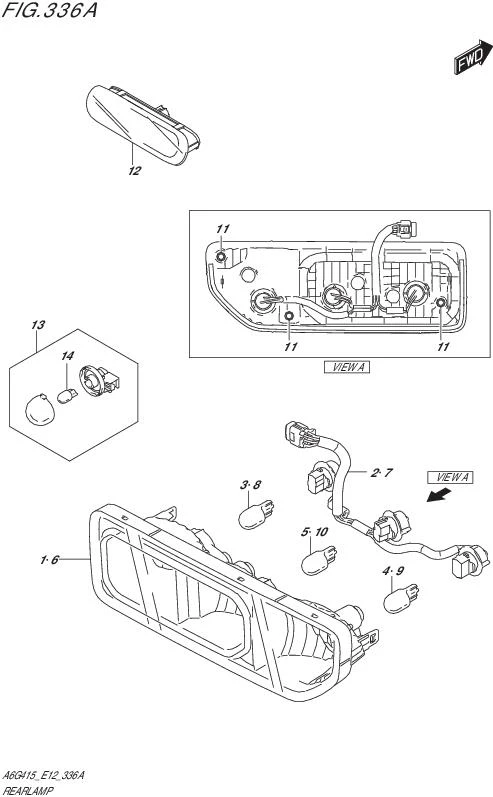

FIG.336A-REAR LAMP

FIG.336A-REAR LAMP
No No. Part Description Qty Price Per Pcs Remarks
1 35650-77R00-000 LAMP UNIT,RR COMB,R 1 Rp1.099.500
2 35658-77R00-000 CORD ASSY,RH 1 Rp328.500
3 09471-12191-000 BULB (12V21W) 1 Rp52.500
4 09471-12192-000 BULB (12V21/5W) 1 Rp56.000
5 09471-12202-000 BULB (12V21W) 1 Rp78.000
6 35670-77R00-000 LAMP UNIT,RR COMB,L 1 Rp1.099.500
7 35678-77R00-000 CORD ASSY,LH 1 Rp328.500
8 09471-12191-000 BULB (12V21W) 1 Rp52.500
9 09471-12192-000 BULB (12V21/5W) 1 Rp56.000
10 09471-12202-000 BULB (12V21W) 1 Rp78.000
11 08313-2006C-000 NUT,REAR COMB LAMP 6 Rp19.000
12 35810-81M01-000 LAMP ASSY, HIGH MOUNT STOP 1 Rp585.500
13 35910-75F22-000 LAMP ASSY,LICENSE 2 Rp171.500
14 09471-12216-000 .BULB,12V5W (12V5W) 2 Rp15.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
