New Jimny 3 Doors

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 351- ELECTRICAL CONTROL INSTRUMENTAL PANELFIG. 360A- LOCK SETFIG. 370A- FRONT WINDOW WIPERFIG. 374A- WINDOW WASHERFIG. 376A- REAR WINDOW WIPERFIG. 392A- AUDIO (N_TUNER)FIG. 392B- AUDIO (W_TUNER)FIG.300A-ENGINE ELECTRICALFIG.302A-STARTING MOTORFIG.304A-GENERATORFIG.320A-BATTERYFIG/324A-SPEEDOMETERFIG.330A-HEADLAMPFIG.332A-FRONT FOG LAMPFIG.334A-TURN SIGNAL LAMPFIG.338A-ROOM LAMPFIG.344B-ENGINE ROOM HARNESS (4AT)FIG.348A-ENGINE HARNESS BRACKET (5MT)FIG.348B-ENGINE HARNESS BRACKET (4AT)FIG.350A-ELECTRICAL CONTROL BODYFIG.336A-REAR LAMPFIG.344A-ENGINE ROOM HARNESS (5MT)FIG. 34PA - WIRING HARNESS REAR SIDEFIG. 34WA - BODY HARNESS

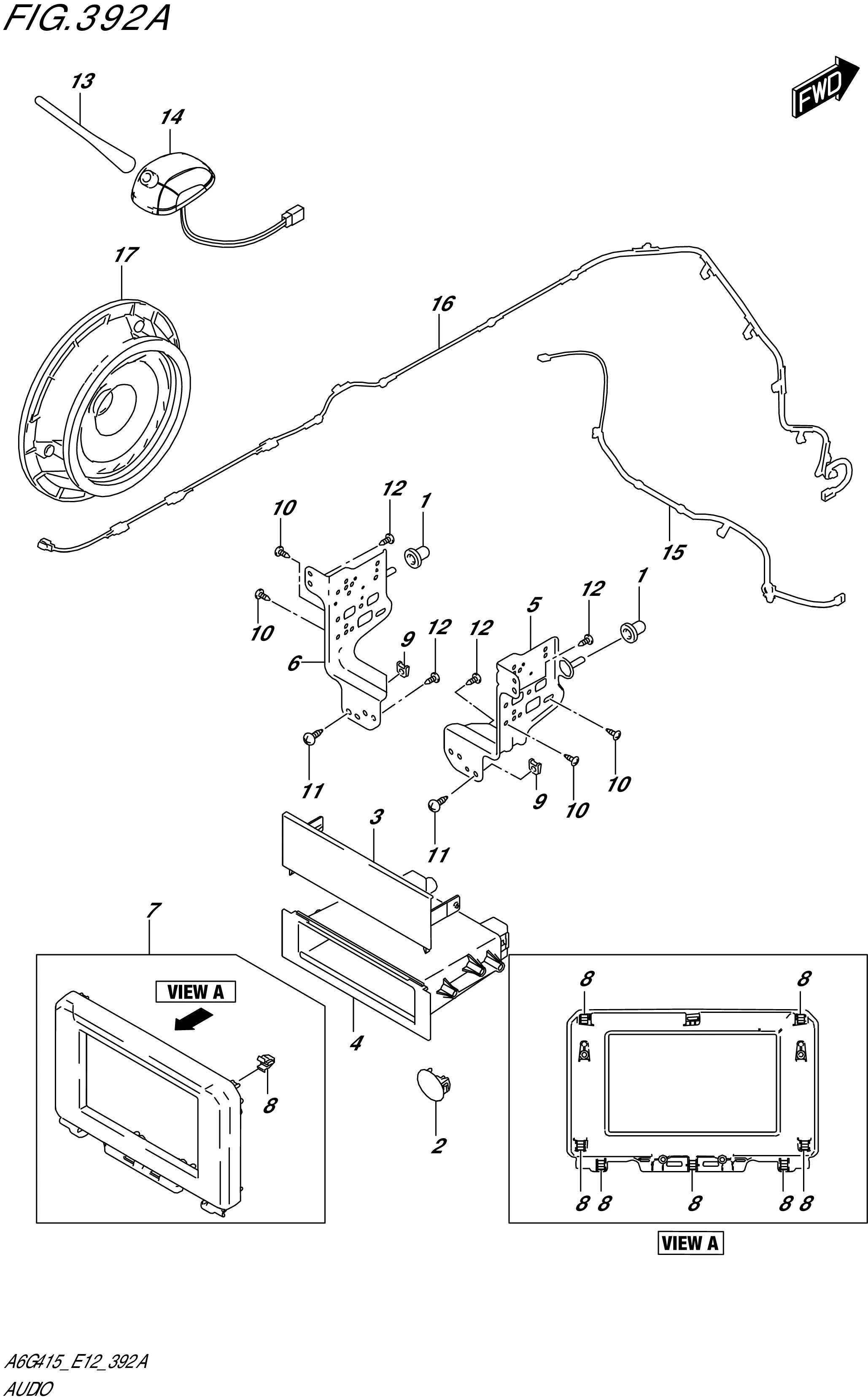

FIG. 392A- AUDIO (N_TUNER)

FIG. 392A- AUDIO (N_TUNER)
No No. Part Description Qty Price Per Pcs Remarks
1 34955-59J00-000 BUSH,RADIO BRKT 2 Rp18.500
2 37275-65H00-000 CAP 1 Rp43.500
3 DISCONTINUE
SUB: 39161B80J00N000		 COVER,RADIO HOLE 1 -
4 39182-77M10-000
SUB: 39182B77M10N000		 POCKET,TUNER 1 Rp38.000
5 39321-77R00-000 BRACKET,TUNER,R 1 Rp98.000
6 39322-77R00-000 BRACKET,TUNER,L 1 Rp98.000
7 73821-78R00-5PK GARNISH,I/P CENTER (BLACK) 1 Rp179.500
8 09409-08352-000 .CLIP 7 Rp19.000
9 09148-05045-000
SUB: 09148B05045N000		 NUT (M5) 2 Rp4.000
10 03241-0512A-000
SUB: 03241B0512AN000		 SCREW 4 Rp3.500
11 03541-0516A-000
SUB: 03541M0516A-000		 SCREW 2 Rp3.500
12 03541-0516A-000
SUB: 03541M0516A-000		 SCREW 4 Rp3.500
13 39251-64J00-000 ROD,ANTENNA 1 Rp182.500
14 39253-71L11-000 BASE, ANTENNA 1 Rp865.500
15 39270-77R00-000 FEEDER,I/P 1 Rp303.000
16 39271-77R00-000 FEEDER,ROOF 1 Rp394.500
17 39102-77R00-000 SPEAKER ASSY 2 Rp664.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
