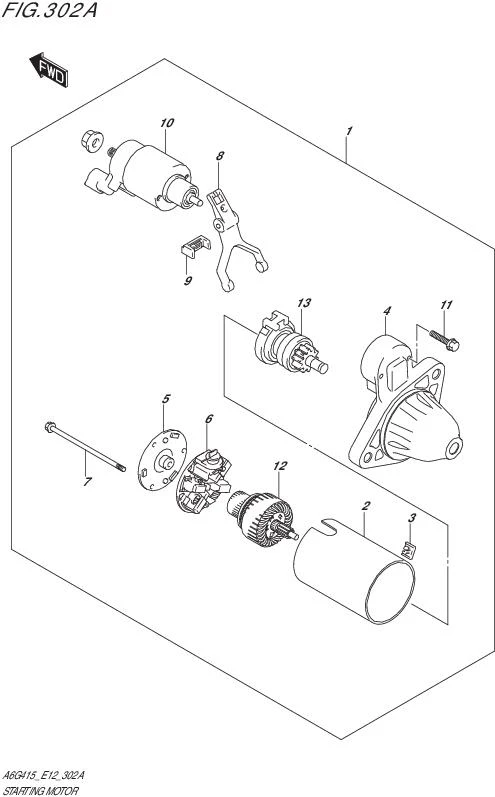

FIG.302A-STARTING MOTOR

FIG.302A-STARTING MOTOR
No No. Part Description Qty Price Per Pcs Remarks
1 31100-78R00-000 MOTOR ASSY,STARTING 1 Rp6.992.500
2 31110-78R00-000 .YOKE ASSY 1 Rp1.771.000
3 31116-74P00-000 .CAP,DRAIN 1 Rp66.000
4 31150-78R00-000 .HOUSING ASSY 1 Rp896.500
5 31170-74P00-000 .FRAME ASSY 1 Rp252.000
6 31173-50M00-000 .HOLDER ASSY,STARTER BRUSH 1 Rp560.500
7 31174-58M00-000 .BOLT,COMMUTATOR END 3 Rp134.000
8 31191-58M00-000 .LEVER,STARTER DRIVE 1 Rp203.500
9 31198-74P00-000 .SEAL,PINION DRIVE 1 Rp112.500
10 31220-78R00-000 .SWITCH ASSY 1 Rp1.609.500
11 31221-50M00-000 .BOLT,SWITCH 2 Rp93.000
12 31311-74P00-000 .ARMATURE ASSY 1 Rp2.292.000
13 31340-78R00-000 .SHAFT ASSY,EGT 1 Rp1.594.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
