New Jimny 3 Doors

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 351- ELECTRICAL CONTROL INSTRUMENTAL PANELFIG. 360A- LOCK SETFIG. 370A- FRONT WINDOW WIPERFIG. 374A- WINDOW WASHERFIG. 376A- REAR WINDOW WIPERFIG. 392A- AUDIO (N_TUNER)FIG. 392B- AUDIO (W_TUNER)FIG.300A-ENGINE ELECTRICALFIG.302A-STARTING MOTORFIG.304A-GENERATORFIG.320A-BATTERYFIG/324A-SPEEDOMETERFIG.330A-HEADLAMPFIG.332A-FRONT FOG LAMPFIG.334A-TURN SIGNAL LAMPFIG.338A-ROOM LAMPFIG.344B-ENGINE ROOM HARNESS (4AT)FIG.348A-ENGINE HARNESS BRACKET (5MT)FIG.348B-ENGINE HARNESS BRACKET (4AT)FIG.350A-ELECTRICAL CONTROL BODYFIG.336A-REAR LAMPFIG.344A-ENGINE ROOM HARNESS (5MT)FIG. 34PA - WIRING HARNESS REAR SIDEFIG. 34WA - BODY HARNESS

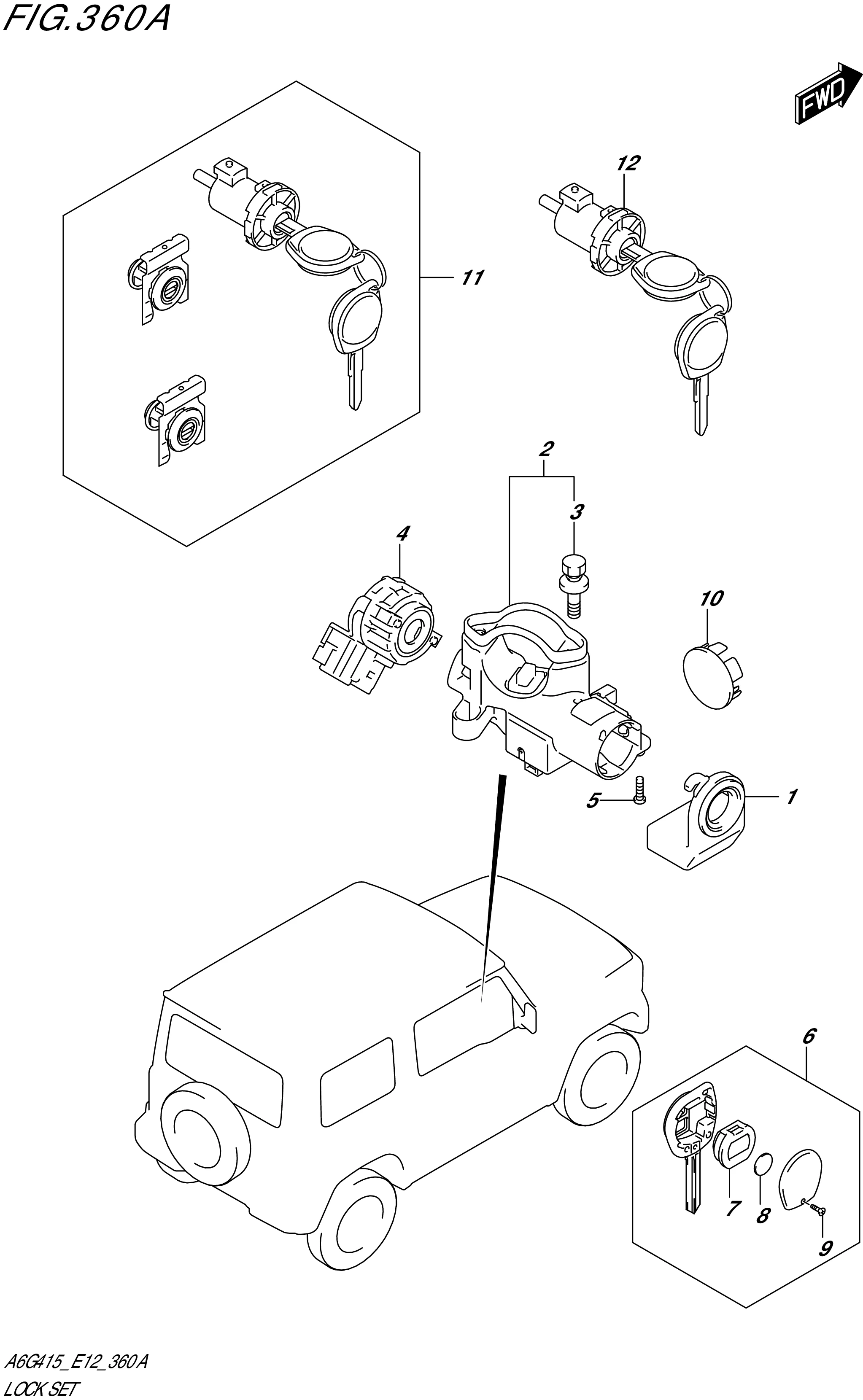

FIG. 360A- LOCK SET

FIG. 360A- LOCK SET
No No. Part Description Qty Price Per Pcs Remarks
1-1 33970-78R00-000 CONTROLLER ASSY,IMM 1 Rp3.136.500
1-2 33970-79R00-000 CONTROLLER ASSY,IMM 1 Rp2.798.500
2-1 37101-63R00-000 BODY,STEERING LOCK 1 Rp928.500
2-2 37101-63R10-000 BODY,STEERING LOCK 1 Rp928.500
3 37152-73H00-000 .BOLT,STEERING LOCK 2 Rp44.500
4 37111-63R00-000 SWITCH 1 Rp195.000
5 37152-63R10-000 SCREW,IMM CONT 1 Rp27.000
6 37145-77R11-000
SUB: 37145-77R10-000		 KEY, BLANK 1 Rp1.378.500
7 37182-78R00-000 .SWITCH ASSY, TRANSMITTER 1 Rp748.000
8 37185-54G10-000 ..BATTERY (CR1616) 1 Rp32.000
9 37186-54G70-000 .SCREW 1 Rp30.500
10 37295-65P00-5PK CAP,ENGINE START SWITCH (BLACK) 1 Rp41.000
11-1 3710C-77890-000 LOCK SET 1 Rp2.750.500
11-2 3710D-77810-000 LOCK SET 1 Rp2.760.500
12-1 3710D-77820-000 LOCK ASSY, STEERING 1 Rp2.592.000
12-2 3710D-77830-000 LOCK ASSY, STEERING 1 Rp2.592.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
