  5. FIG. 484A - STEERING INTERMEDIATE GEAR

NEW CARRY PICK UP

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 413A - FRONT AXLEFIG. 418A - FRONT SUSPENSION FRAMEFIG. 430A - REAR SUSPENSIONFIG. 439A - REAR AXLEFIG. 449A - ROAD WHEEL/TIREFIG. 451A - STEERING WHEELFIG. 453A - STEERING COLUMN (N_PW_ST)FIG. 453B - STEERING COLUMN (W_PW_ST)FIG. 480A - STEERING UNITFIG. 490A - PEDAL/PEDAL BRACKETFIG. 500A - BRAKE MASTER CYLINDERFIG. 501A - BRAKE RESERVOIRFIG. 520A - FRONT WHEEL BRAKEFIG. 530A - REAR WHEEL BRAKEFIG. 542A - PARKING BRAKEFIG. 400A- FRONT SUSPENSIONFIG. 50CA FRONT BRAKE PIPINGFIG. 50DA REAR BRAKE PIPINGFIG. 484A - STEERING INTERMEDIATE GEAR

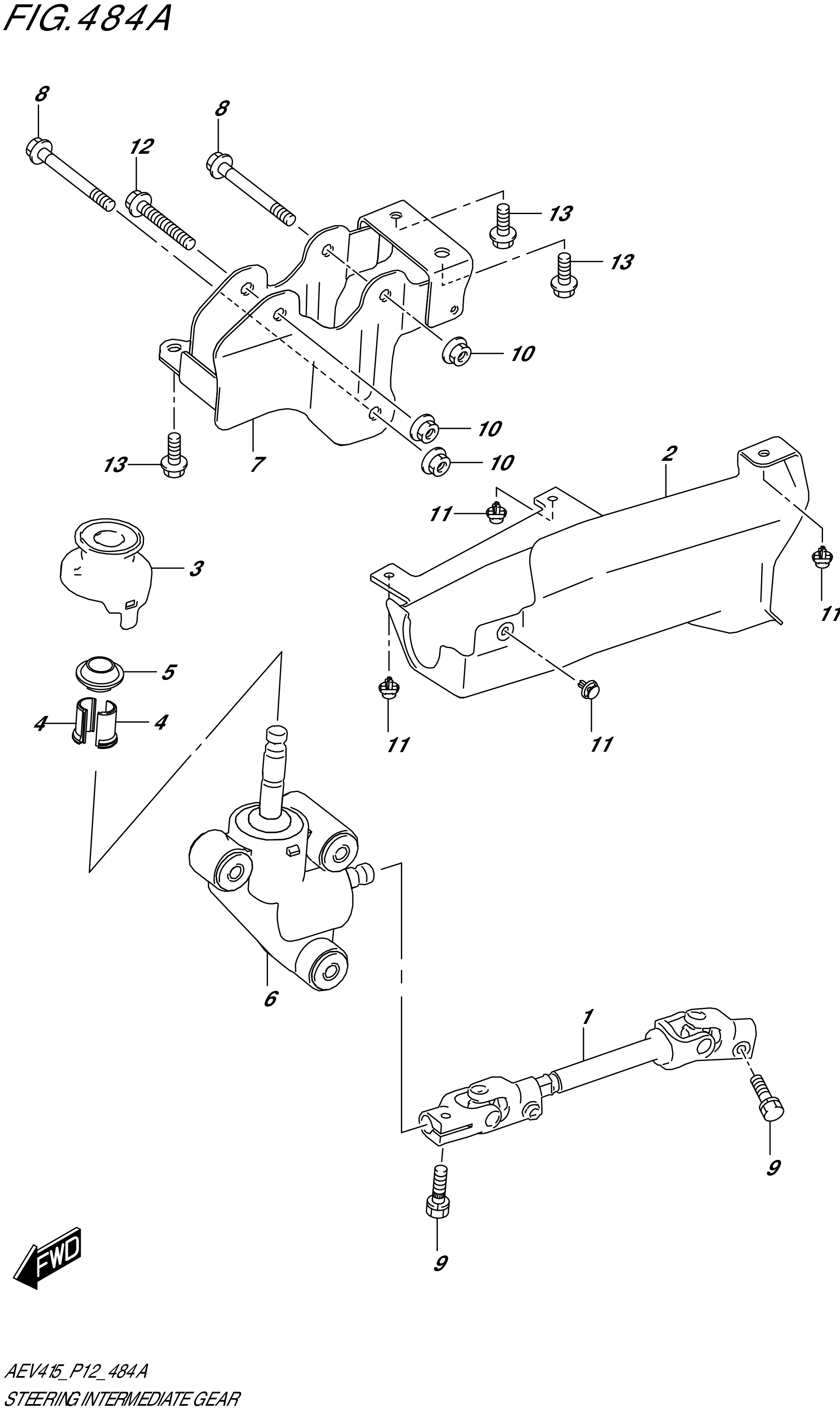

FIG. 484A - STEERING INTERMEDIATE GEAR

FIG. 484A - STEERING INTERMEDIATE GEAR
No No. Part Description Qty Price Per Pcs Remarks
1 48240-52S00-000 SHAFT,INTERMEDIATE 1 Rp1.073.500
2 48441-52S00-000 COVER,STEERING SHAFT UNDER 1 Rp54.500
3 48491-52S00-000 SEAL,STEERING SHAFT 1 Rp24.000
4 48492-52S00-000 BEARING,STEERING SEAL INNER 2 Rp19.000
5 48493-52S00-000 BEARING,STEERING SEAL OUTER 1 Rp48.000
6 48700-52S00-000 BOX ASSY,INTERMEDIATE GEAR 1 Rp2.444.500
7 48770-52S00-000 BRACKET,INTMD GEAR BOX 1 Rp159.000
8 DISCONTINUE
SUB: 09103-12015-000		 BOLT (12X105) 2 -
9 09117-08106-000 BOLT (8X30) 2 Rp23.500
10 09159-12068-000 NUT (M12) 3 Rp21.000
11 09409-08327-000 CLIP (7.8X20) 4 Rp15.000
12 01550-1275A-000 BOLT 1 Rp9.000
13 01551-1025A-000 BOLT (10X25) 3 Rp29.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
