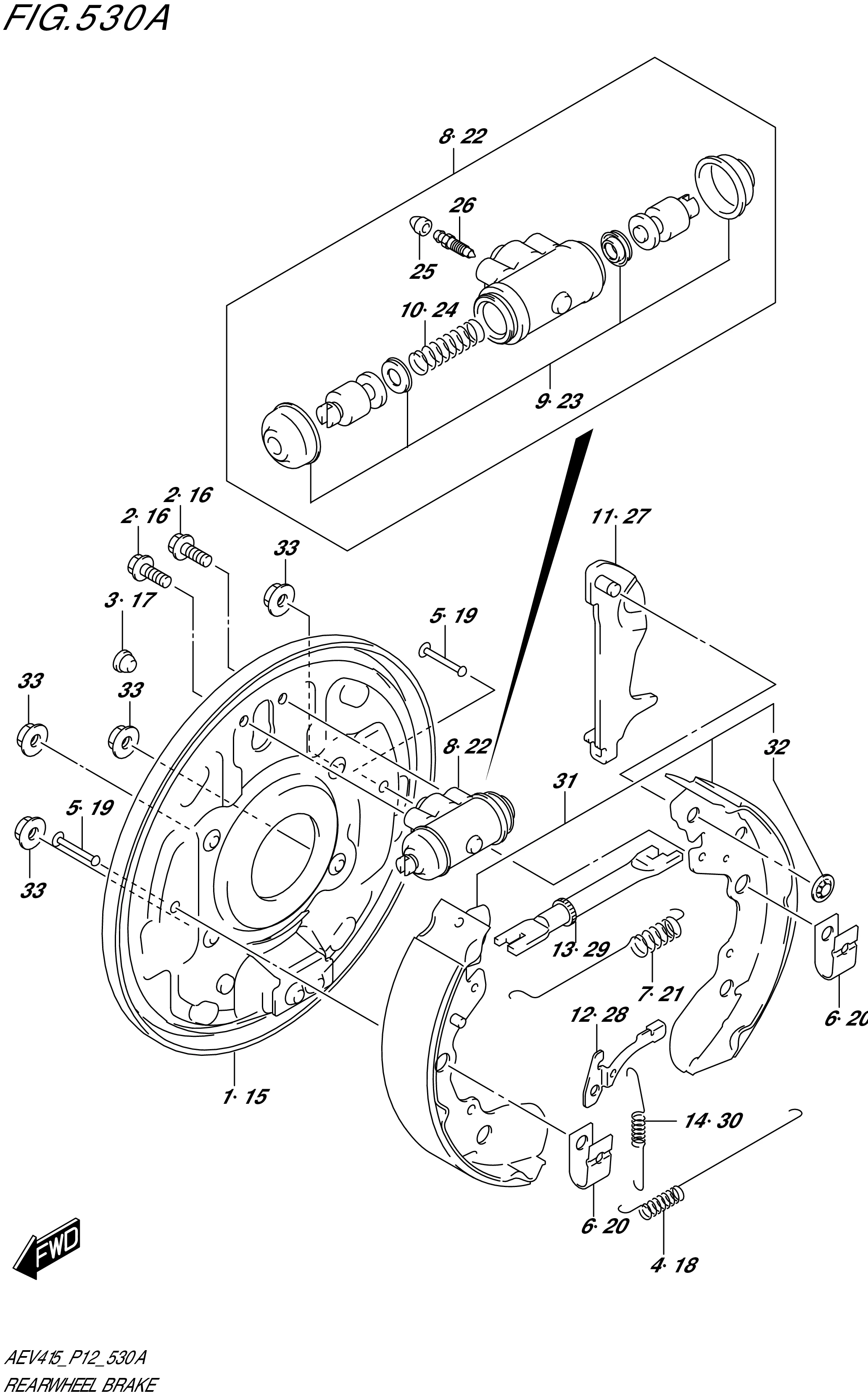

FIG. 530A - REAR WHEEL BRAKE

FIG. 530A - REAR WHEEL BRAKE
No No. Part Description Qty Price Per Pcs Remarks
1 53101-52S00-000 PLATE ASSY,BACKING,R 1 Rp458.000
2 53131-61J00-000 BOLT, WHEEL CYL 2 Rp6.000
3 53141-65D00-000 PLUG,BACKING PLATE 1 Rp16.000
4 53231-61J00-000 SPRING,SHOE RETURN,LOWER 1 Rp13.000
5 53241-61J00-000 PIN,SHOE HOLD DOWN 2 Rp5.500
6 53243-85010-000 SPRING,SHOE HOLD DOWN 2 Rp29.000
7 53331-61J00-000 SPRING,SHOE RETURN,UPPER 1 Rp19.500
8 53401-52S00-000 CYLINDER ASSY,RR WHEEL,R 1 Rp536.500
9 DISCONTINUE
SUB: 53400-52S00-000		 .PISTON CUP/BOOT SET 1 -
10 DISCONTINUE
SUB: 53441-52S00-000		 .SPRING,WHEEL CYLINDER 1 -
11 53720-61J00-000 LEVER ASSY,PARKING SHOE,R 1 Rp42.000
12 53781-61J00-000 LEVER,ADJUSTER,R 1 Rp30.000
13 53810-61J00-000 ADJUSTER ASSY,R 1 Rp131.500
14 53791-61J00-000 SPRING,ADJUSTER 1 Rp7.000
15 53102-52S00-000 PLATE ASSY,BACKING,L 1 Rp458.000
16 53131-61J00-000 BOLT, WHEEL CYL 2 Rp6.000
17 53141-65D00-000 PLUG,BACKING PLATE 1 Rp16.000
18 53231-61J00-000 SPRING,SHOE RETURN,LOWER 1 Rp13.000
19 53241-61J00-000 PIN,SHOE HOLD DOWN 2 Rp5.500
20 53243-85010-000 SPRING,SHOE HOLD DOWN 1 Rp29.000
21 53331-61J00-000 SPRING,SHOE RETURN,UPPER 1 Rp19.500
22 53402-52S00-000 CYLINDER ASSY,RR WHEEL,L 1 Rp536.500
23 DISCONTINUE
SUB: 53400-52S00-000		 .PISTON CUP/BOOT SET 1 -
24 DISCONTINUE
SUB: 53441-52S00-000		 .SPRING,WHEEL CYLINDER 1 -
25 55156-61J00-000
SUB: 55156-52S00-000		 .CAP,BLEEDER PLUG 1 Rp7.500
26 55473-52S00-000 .PLUG,BLEEDER 1 -
27 53730-61J00-000 LEVER ASSY,PARKING SHOE,L 1 Rp42.000
28 53782-61J00-000 LEVER,ADJUSTER,L 1 Rp29.000
29 53820-61J00-000 ADJUSTER ASSY,L 1 Rp131.500
30 53791-61J00-000 SPRING,ADJUSTER 1 Rp7.000
31 53200-52S00-000 SHOE SET,BRAKE 1 Rp441.000
32 53753-58J00-000 .PUSH NUT,PARKING LEVER 2 Rp12.500
33 09159-08075-000 NUT (M8) 8 Rp14.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
