NEW CARRY PICK UP

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 413A - FRONT AXLEFIG. 418A - FRONT SUSPENSION FRAMEFIG. 430A - REAR SUSPENSIONFIG. 439A - REAR AXLEFIG. 449A - ROAD WHEEL/TIREFIG. 451A - STEERING WHEELFIG. 453A - STEERING COLUMN (N_PW_ST)FIG. 453B - STEERING COLUMN (W_PW_ST)FIG. 480A - STEERING UNITFIG. 490A - PEDAL/PEDAL BRACKETFIG. 500A - BRAKE MASTER CYLINDERFIG. 501A - BRAKE RESERVOIRFIG. 520A - FRONT WHEEL BRAKEFIG. 530A - REAR WHEEL BRAKEFIG. 542A - PARKING BRAKEFIG. 400A- FRONT SUSPENSIONFIG. 50CA FRONT BRAKE PIPINGFIG. 50DA REAR BRAKE PIPINGFIG. 484A - STEERING INTERMEDIATE GEAR

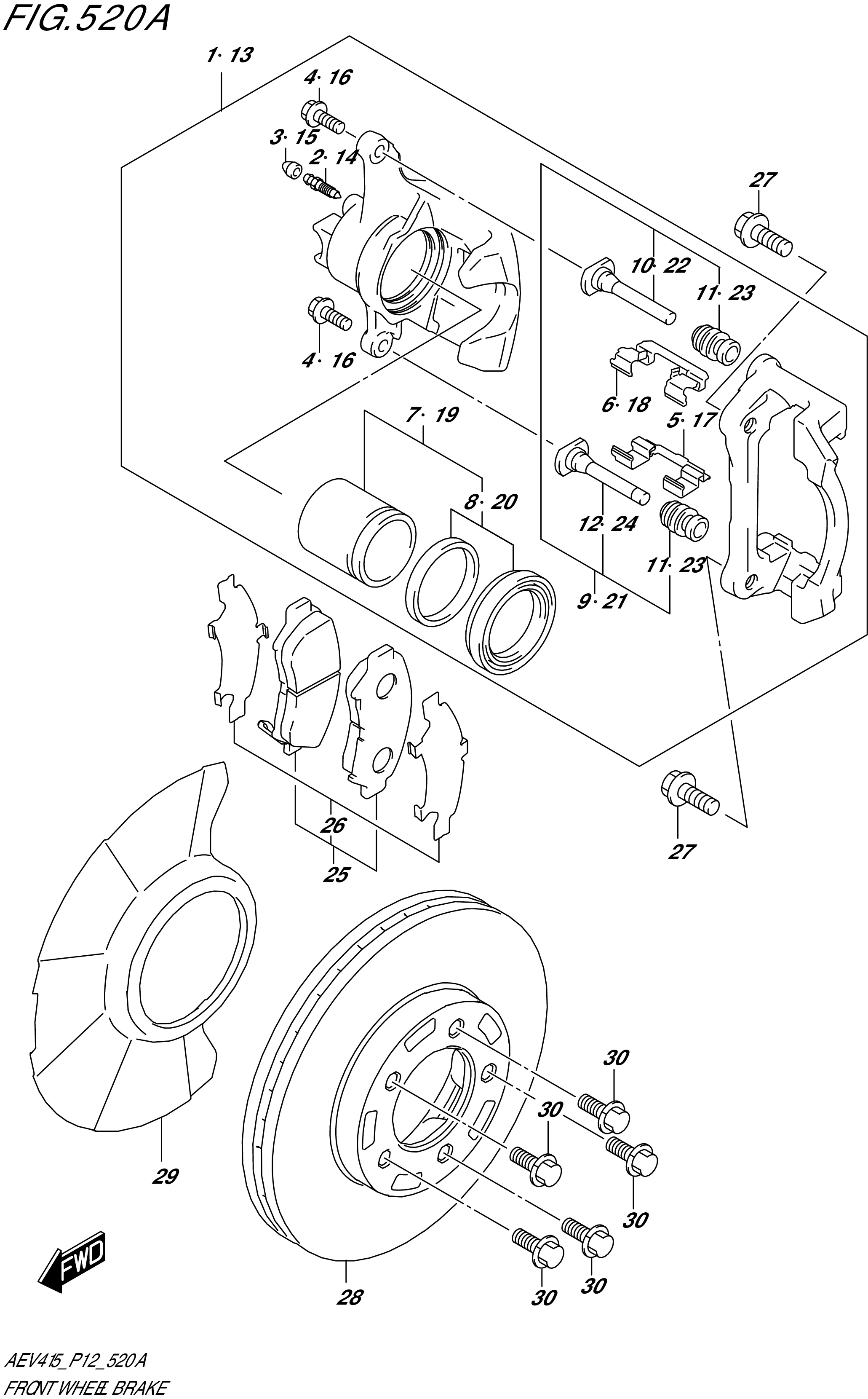

FIG. 520A - FRONT WHEEL BRAKE

FIG. 520A - FRONT WHEEL BRAKE
No No. Part Description Qty Price Per Pcs Remarks
1 55101-52S00-999 CALIPER,FR BRAKE,R 1 Rp1.116.500
2 55151-61J00-000 .SCREW,BLEEDER 1 Rp22.000
3 55156-61J00-000 .CAP,BLEEDER 1 Rp7.500
4 55206-61J00-001 .BOLT 2 Rp17.500
5 55234-52S00-000 .CLIP,PAD 1 Rp45.500
6 55235-52S00-000 .CLIP,PAD 1 Rp45.500
7 55840-59R00-000 .PISTON/SEAL SET 1 Rp240.500
8 55830-59R00-000 ..SEAL SET, PISTON 1 Rp139.500
9 55850-73R00-000 .SLIDE PIN,BOOT SET 1 Rp135.000
10 55192-61J00-001 ..PIN,GUIDE 1 Rp37.500
11 55201-61J00-000 ..BOOT,PIN 2 Rp24.500
12 55855-73R00-000 ..LOCK PIN SET 1 Rp82.500
13 55102-52S00-999 CALIPER,FR BRAKE,L 1 Rp1.116.500
14 55151-61J00-000 .SCREW,BLEEDER 1 Rp22.000
15 55156-61J00-000 .CAP,BLEEDER 1 Rp7.500
16 55206-61J00-001 .BOLT 2 Rp17.500
17 55234-52S00-000 .CLIP,PAD 1 Rp45.500
18 55235-52S00-000 .CLIP,PAD 1 Rp45.500
19 55840-59R00-000 .PISTON/SEAL SET 1 Rp240.500
20 55830-59R00-000 ..SEAL SET, PISTON 1 Rp139.500
21 55850-73R00-000 .SLIDE PIN,BOOT SET 1 Rp135.000
22 55192-61J00-001 ..PIN,GUIDE 1 Rp37.500
23 55201-61J00-000 ..BOOT,PIN 2 Rp24.500
24 55855-73R00-000 ..LOCK PIN SET 1 Rp82.500
25 55810-52S00-000 PAD SET 1 Rp512.500
26 55820-52S00-000 .SHIM SET,ANTI NOISE 1 Rp78.000
27 09117-12012-000 BOLT (12X32) 4 Rp38.500
28 55311-52S00-000 DISC,FRONT BRAKE 2 Rp333.500
29 55221-52S00-000 COVER,BRAKE DISC DUST 2 Rp39.000
30 09117-10042-000 BOLT (10X25) 10 Rp22.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
