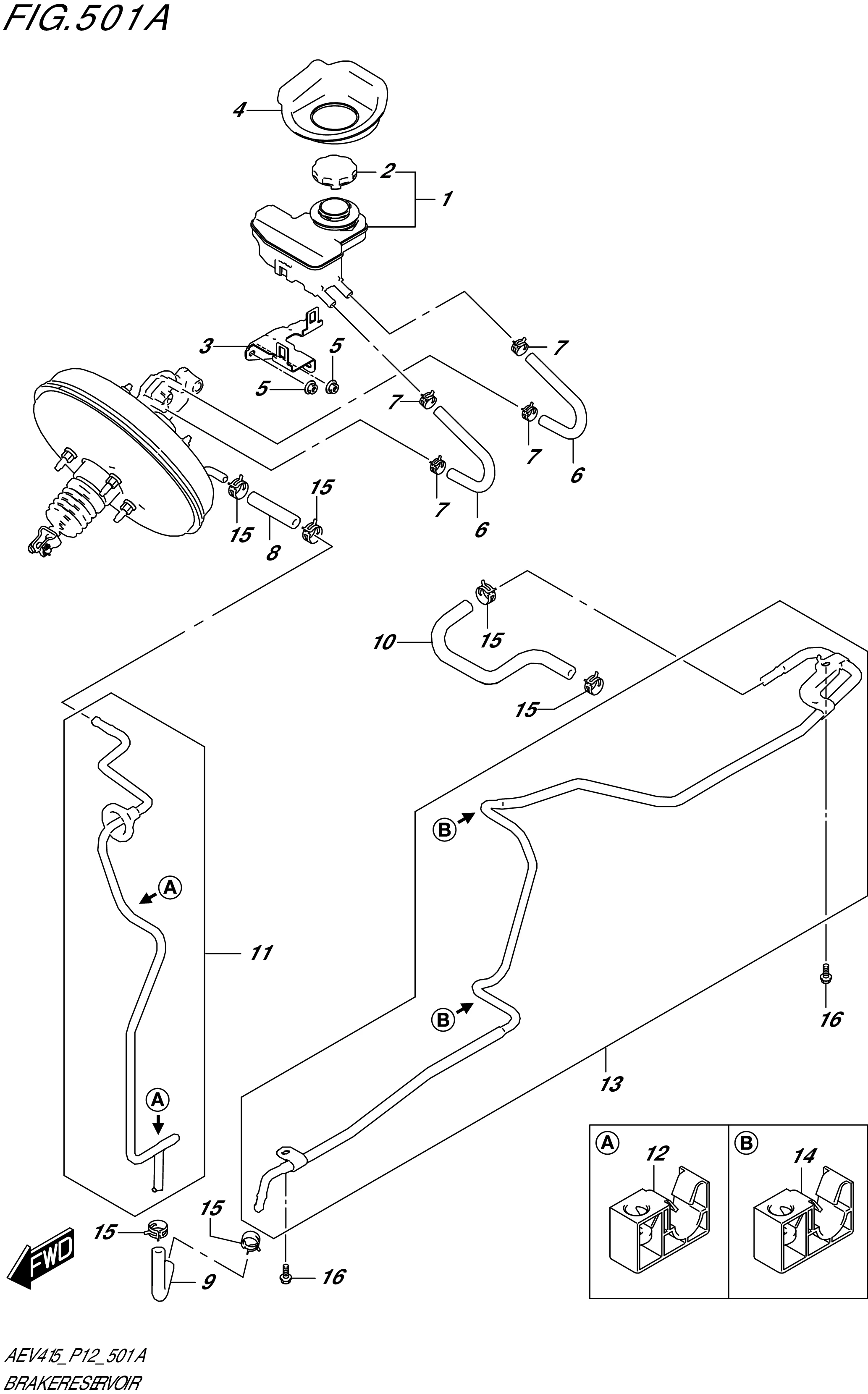

FIG. 501A - BRAKE RESERVOIR

FIG. 501A - BRAKE RESERVOIR
No No. Part Description Qty Price Per Pcs Remarks
1 51200-52S00-000 RESERVOIR ASSY,BRAKE MASTER 1 Rp462.000
2 51220-82M00-000 .CAP,RESERVOIR 1 Rp72.000
3 51211-52S00-000 BRACKET,RESERVOIR 1 Rp61.500
4 51221-52S00-000 TRAY,RESERVOIR TANK 1 Rp17.000
5 09159-06076-000 NUT (M6) 2 Rp19.500
6 51250-52S00-000 HOSE,BRAKE RESERVOIR 2 Rp101.500
7 09401-13417-000 CLIP (ID:13.2) 4 Rp15.500
8 51011-52S00-000 HOSE,BRAKE VACUUM NO.1 1 Rp22.000
9 51021-52S00-000 HOSE,BRAKE VACUUM NO.2 1 Rp32.500
10 51030-52S00-000 HOSE,BRAKE VACUUM NO.3 1 Rp58.500
11 51080-52S00-000 PIPE,BRAKE VACUUM NO.1 1 Rp50.500
12 51082-52S00-000 .CLAMP,VACUUM PIPE 2 Rp6.000
13 51090-52S00-000 PIPE,BRAKE VACUUM NO.2 1 Rp86.500
14 51082-52S00-000 .CLAMP,VACUUM PIPE 2 Rp6.000
15 09401-14404-000 CLIP (ID:14.5) 6 Rp16.500
16 02162-0616A-000 SCREW (6X16) 2 Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
