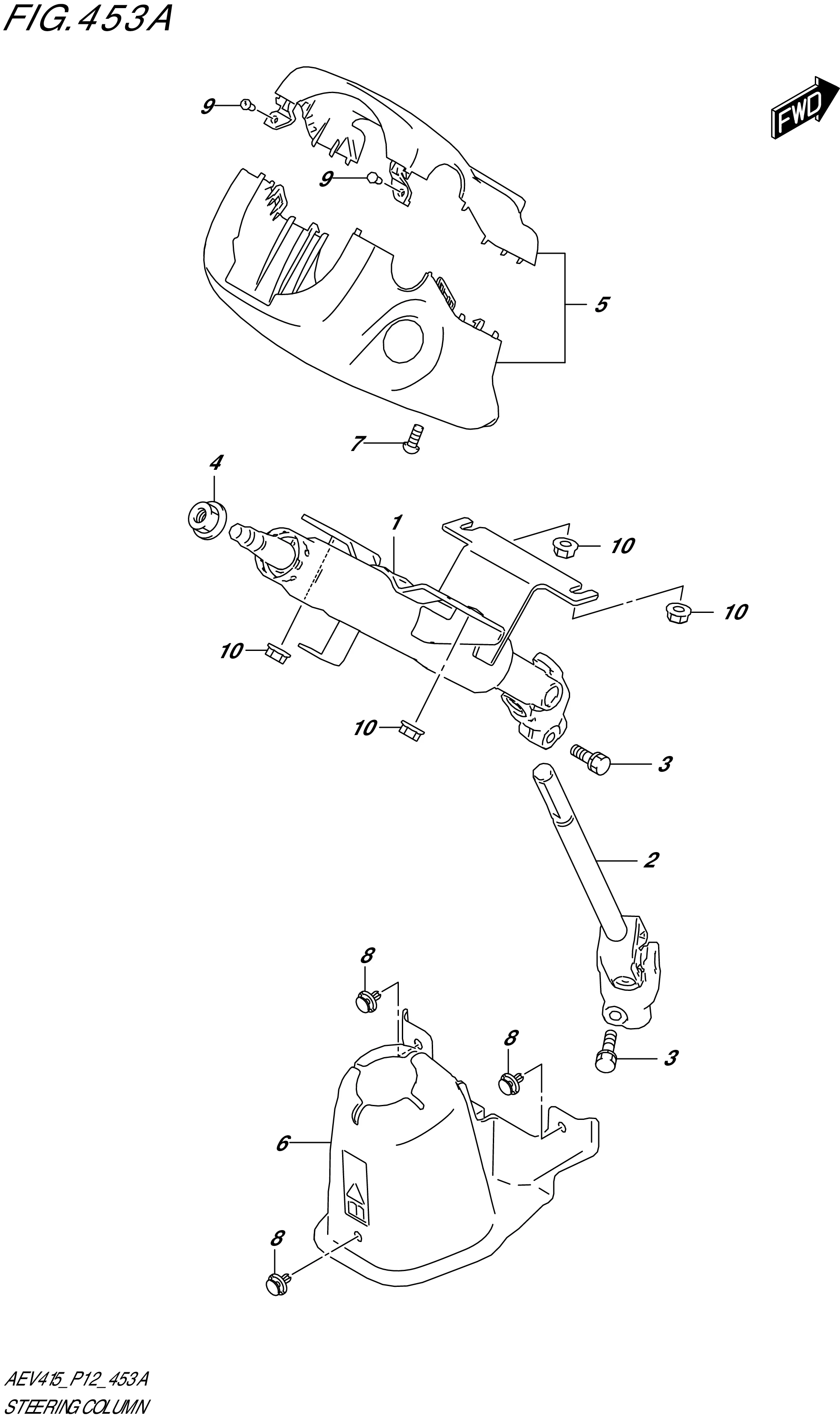

FIG. 453A - STEERING COLUMN (N_PW_ST)

FIG. 453A - STEERING COLUMN (N_PW_ST)
No No. Part Description Qty Price Per Pcs Remarks
1 48210-52S00-000 SHAFT ASSY,STRG COLUMN UPPER 1 Rp1.818.000
2 48220-52S00-000 SHAFT ASSY,STRG COLUMN LOWER 1 Rp585.500
3 09117-08106-000 BOLT (8X30) 2 Rp23.500
4 08316-1012A-000
SUB: 08316B1012AN000		 NUT 1 Rp6.500
5 48400-52S00-5PK COVER ASSY,STRG COLUMN (BLACK) 1 Rp76.500
6 48481-52S00-000 COVER,STEERING JOINT LOWER 1 Rp30.000
7 09136M05030-000 SCREW (5X12) 1 Rp4.500
8 09409-07340-000 CLIP (6.8X11.5) 3 Rp17.500
9 03211M0512A-000 SCREW 2 Rp4.500
10 08316-1008A-000 NUT 4 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
