Suspension - Suzuki Spare Part

Ubah pencarian

Atau cari dengan

Preview Engine Transmission Electrical Suspension Body

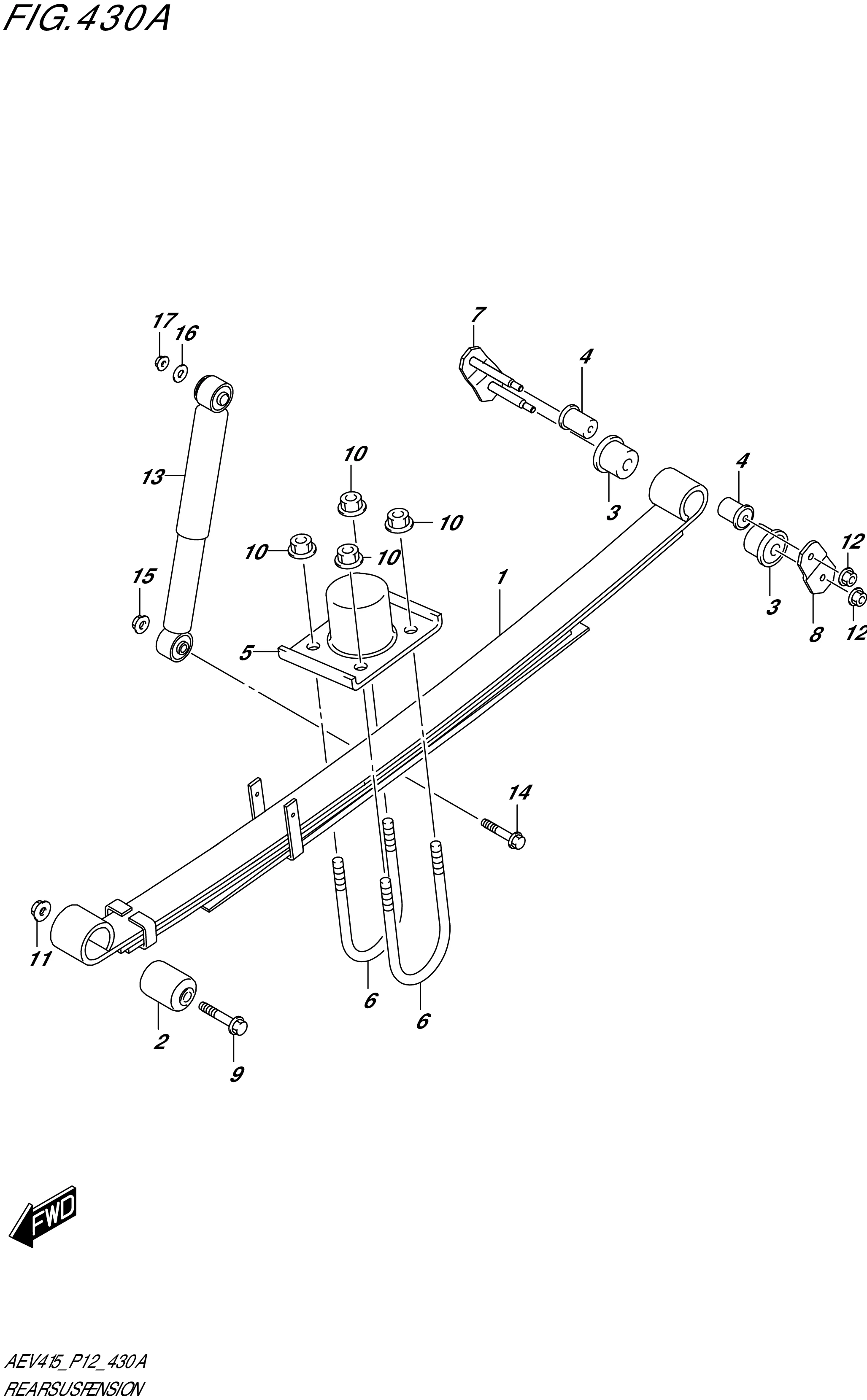

No	No. Part	Description	Qty	Price Per Pcs
1	41310-52S00-000	SPRING ASSY,REAR	2	Rp1.415.500
2	41331-52S00-000	BUSHING,REAR SPRING FRONT	2	Rp77.500
3	41333-61J00-000	BUSHING,SPRING SHACKLE NO.2	4	Rp19.500
4	41465-61J00-000	BUSHING,SPRING SHACKLE NO.1	4	Rp14.500
5	42150-52S00-000	BUMPER,REAR SPRING	2	Rp194.500
6	41411-52S00-000	U-BOLT,REAR SPRING	4	Rp185.500
7	41460-61J00-000	SHACKLE ASSY,RR SPRING	2	Rp113.500
8	41461-52S01-000 SUB: 41461-52S00-000	PLATE,SPRING SHACKLE OUTER	2	Rp126.500
9	09103-14038-000	BOLT (14X100)	2	Rp19.000
10	08316-1012A-000 SUB: 08316B1012AN000	NUT (M12)	8	Rp6.500
11	09159-14031-000	NUT (M14)	2	Rp37.000
12	08316-1010A-000	NUT	4	Rp3.500
13	41700-52S01-000 SUB: 41700-52S00-000	ABSORBER ASSY,REAR SHOCK	2	Rp355.000
14	09135-12003-000	BOLT (12X71)	2	Rp30.500
15	08316-1012A-000 SUB: 08316B1012AN000	NUT (M12)	2	Rp6.500
16	09160-12073-000	WASHER (12.5X32X2.3)	2	Rp16.000
17	08316-1012A-000 SUB: 08316B1012AN000	NUT	2	Rp6.500
