NEW CARRY PICK UP

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 413A - FRONT AXLEFIG. 418A - FRONT SUSPENSION FRAMEFIG. 430A - REAR SUSPENSIONFIG. 439A - REAR AXLEFIG. 449A - ROAD WHEEL/TIREFIG. 451A - STEERING WHEELFIG. 453A - STEERING COLUMN (N_PW_ST)FIG. 453B - STEERING COLUMN (W_PW_ST)FIG. 480A - STEERING UNITFIG. 490A - PEDAL/PEDAL BRACKETFIG. 500A - BRAKE MASTER CYLINDERFIG. 501A - BRAKE RESERVOIRFIG. 520A - FRONT WHEEL BRAKEFIG. 530A - REAR WHEEL BRAKEFIG. 542A - PARKING BRAKEFIG. 400A- FRONT SUSPENSIONFIG. 50CA FRONT BRAKE PIPINGFIG. 50DA REAR BRAKE PIPINGFIG. 484A - STEERING INTERMEDIATE GEAR

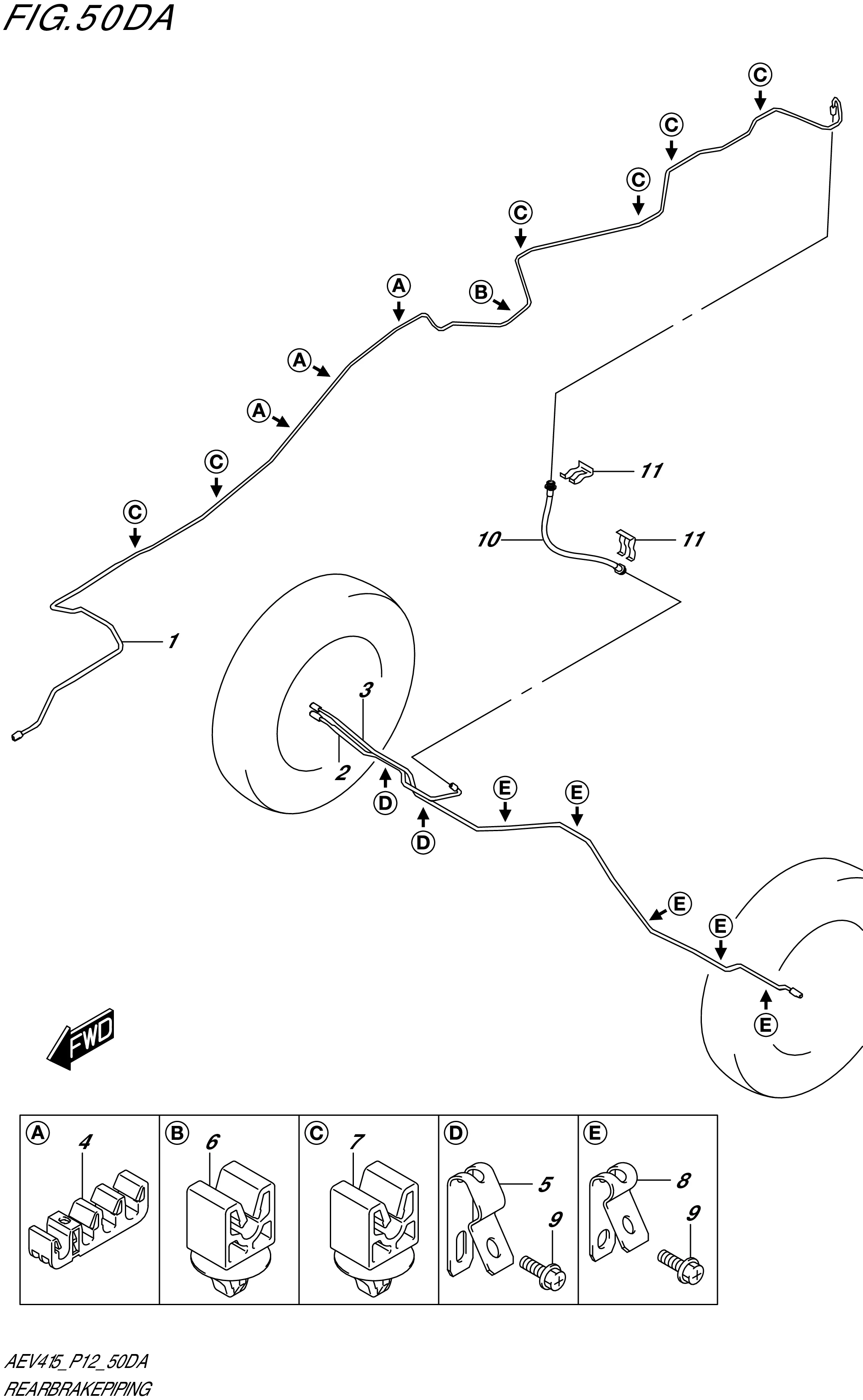

FIG. 50DA REAR BRAKE PIPING

FIG. 50DA REAR BRAKE PIPING
No No. Part Description Qty Price Per Pcs Remarks
1 51470-52S00-000 PIPE,BPV TO RR BK HOSE 1 Rp73.500
2 51510-52S00-000 PIPE,RR BK HOSE TO W/C,R 1 Rp22.500
3 51520-52S00-000 PIPE,RR W/C,R TO W/C,L 1 Rp49.500
4 51751-52S10-000 CLAMP,BK AND FUEL PIPE 3 Rp8.500
5 51751-60K00-000 CLAMP,BK PIPE AXLE NO.2 2 Rp5.500
6 51761-62J10-000 CLAMP,BK PIPE RR AXLE 1 Rp33.500
7 51761-67H10-000 CLAMP,BK PIPE FRAME 6 Rp29.000
8 09403-06401-000 CLAMP (ID:8) 5 Rp16.500
9 02162-0612A-000 SCREW (6X12) 7 Rp11.000
10 51570-52S00-000 HOSE,RR BRAKE FLEXIBLE 1 Rp49.500
11 09383M13004-000 E RING 2 Rp7.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
