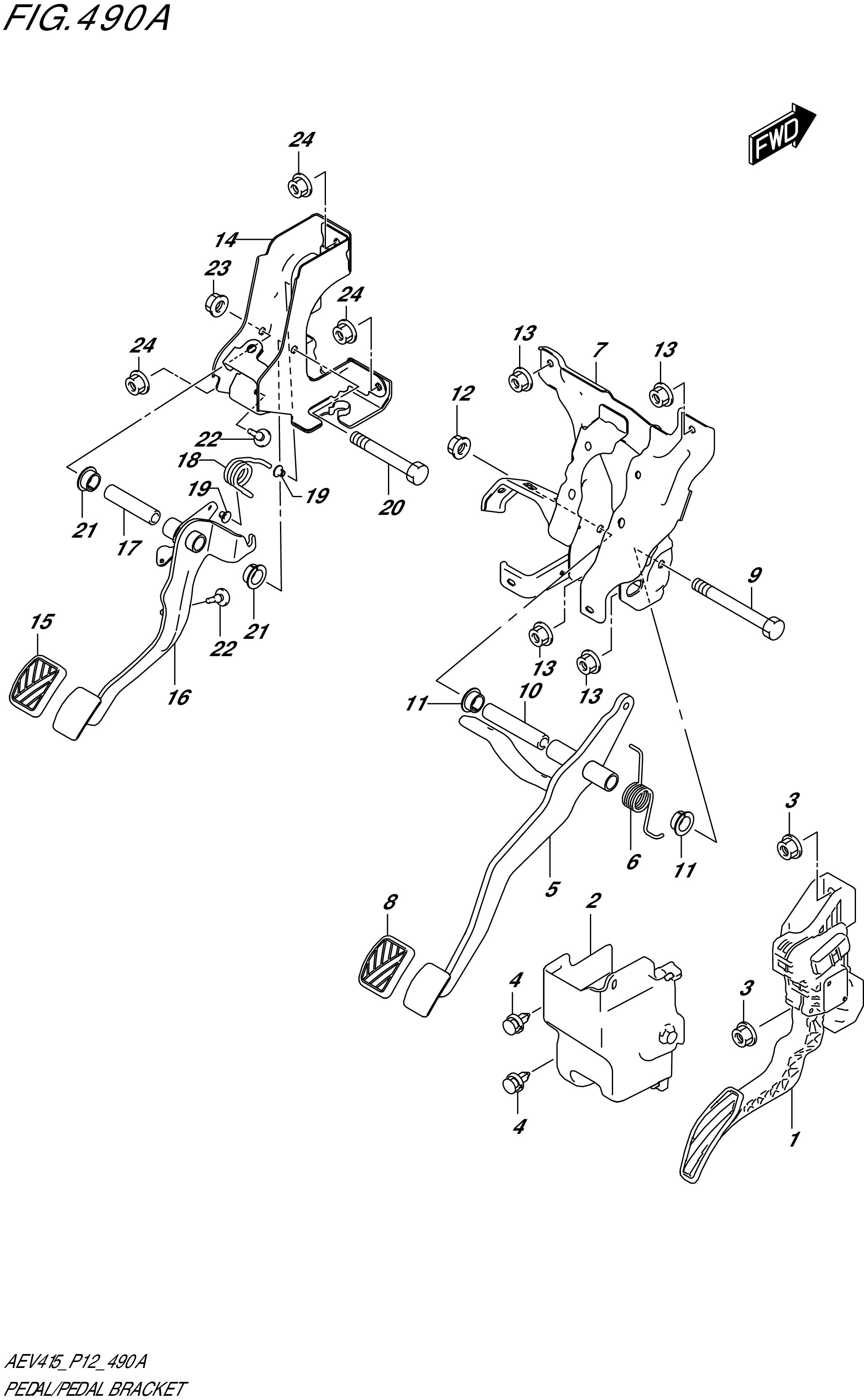

FIG. 490A - PEDAL/PEDAL BRACKET

FIG. 490A - PEDAL/PEDAL BRACKET
No No. Part Description Qty Price Per Pcs Remarks
1 49400-52S00-000 PEDAL ASSY,ACCELERATOR 1 Rp347.000
2 49451-52S00-000 COVER,ACCEL PEDAL 1 Rp22.000
3 09159-08150-000 NUT (M8X1.25) 2 Rp16.500
4 09409-07340-000 CLIP (6.8X11.5) 2 Rp17.500
5 49610-52S00-000 PEDAL,BRAKE 1 Rp95.500
6 49691-52S00-000 SPRING,BRAKE PEDAL RETURN 1 Rp9.500
7 49710-52S00-000 BRACKET,BRAKE PEDAL 1 Rp130.500
8 49751M58J00-000 PAD,PEDAL 1 Rp9.500
9 09100-10289-000 BOLT (10X109.5) 1 Rp10.500
10 09180-10133-000 SPACER (10X13X96.1) 1 Rp9.000
11 09306M13004-000 BUSH (13X21X8) 2 Rp11.500
12 08316-1010A-000 NUT 1 Rp3.500
13 09159-08150-000 NUT (M8X1.25) 4 Rp16.500
14 49720-52S00-000 BRACKET,CLUTCH PEDAL 1 Rp107.500
15 49751M58J00-000 PAD,PEDAL 1 Rp9.500
16 49810-52S00-000 PEDAL,CLUTCH 1 Rp81.000
17 49871M80F00-000 SPACER,PEDAL SHAFT 1 Rp8.500
18 49891-52S00-000 SPRING,CLUTCH PEDAL 1 Rp8.000
19 49894-76K00-000 BUSH,SPRING 2 Rp7.000
20 09100-10324-000 BOLT (10X65) 1 Rp51.500
21 09306M13004-000 BUSH (13X21X8) 2 Rp11.500
22 09321M06026-000 CUSHION 2 Rp4.500
23 08316-1010A-000 NUT 1 Rp3.500
24 09159-08150-000 NUT (M8X1.25) 3 Rp16.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
