NEW CARRY PICK UP

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 413A - FRONT AXLEFIG. 418A - FRONT SUSPENSION FRAMEFIG. 430A - REAR SUSPENSIONFIG. 439A - REAR AXLEFIG. 449A - ROAD WHEEL/TIREFIG. 451A - STEERING WHEELFIG. 453A - STEERING COLUMN (N_PW_ST)FIG. 453B - STEERING COLUMN (W_PW_ST)FIG. 480A - STEERING UNITFIG. 490A - PEDAL/PEDAL BRACKETFIG. 500A - BRAKE MASTER CYLINDERFIG. 501A - BRAKE RESERVOIRFIG. 520A - FRONT WHEEL BRAKEFIG. 530A - REAR WHEEL BRAKEFIG. 542A - PARKING BRAKEFIG. 400A- FRONT SUSPENSIONFIG. 50CA FRONT BRAKE PIPINGFIG. 50DA REAR BRAKE PIPINGFIG. 484A - STEERING INTERMEDIATE GEAR

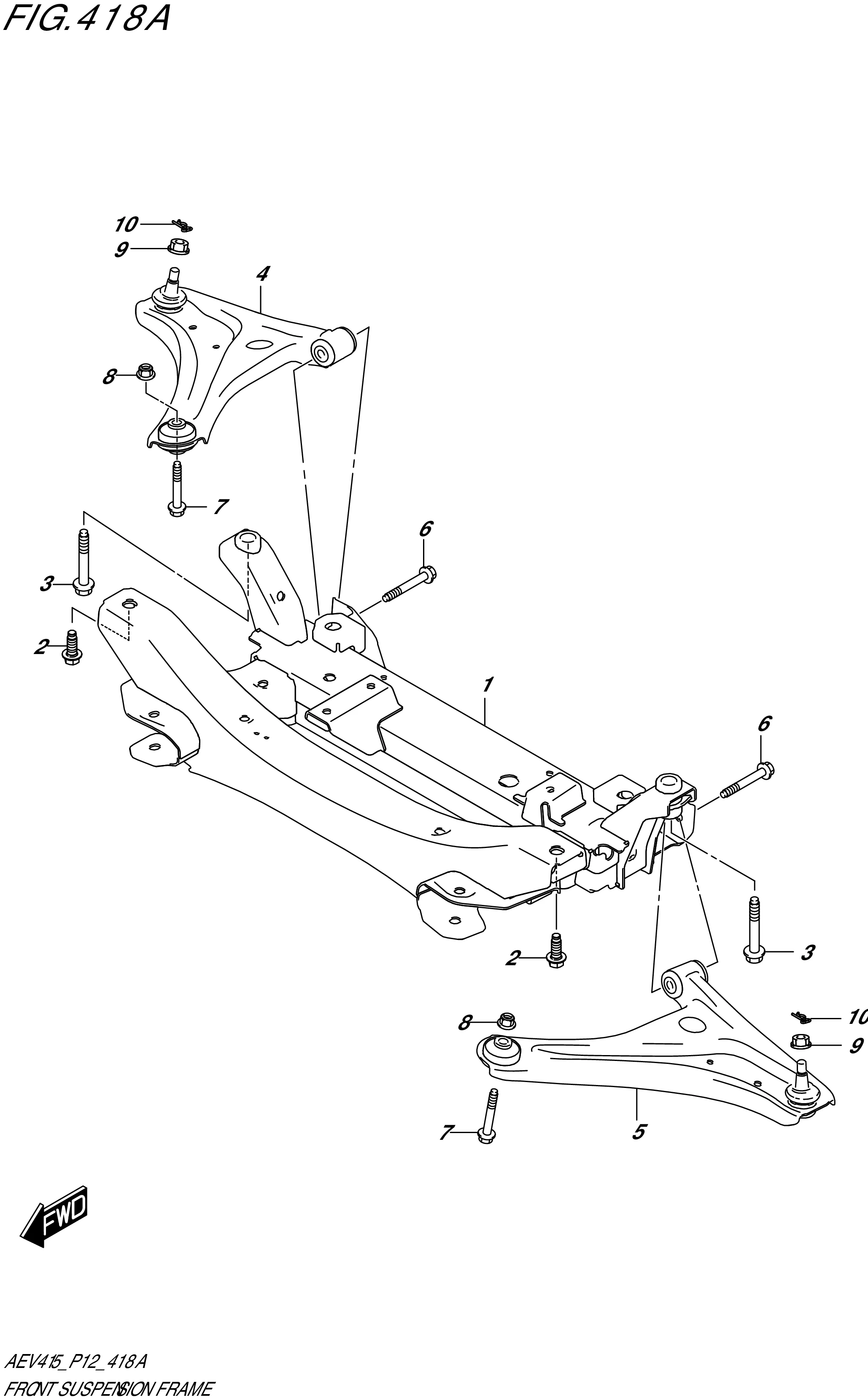

FIG. 418A - FRONT SUSPENSION FRAME

FIG. 418A - FRONT SUSPENSION FRAME
No No. Part Description Qty Price Per Pcs Remarks
1 45910-52S00-000 FRAME,FRONT SUSPENSION 1 Rp2.330.000
2 45961-52S00-000 BOLT,SUSPENSION FRAME FRONT 2 Rp10.000
3 09103-14040-000 BOLT (14X85) 2 Rp17.000
4 45201-52S00-000 ARM ASSY,FRONT SUSPENSION,R 1 Rp495.000
5 45202-52S00-000 ARM ASSY,FRONT SUSPENSION,L 1 Rp495.000
6 45264-61M20-000
SUB: 45264-61M00-000		 BOLT,SPNSN ARM FR BUSHING 2 Rp87.000
7 09103-14039-000 BOLT (14X75) 2 Rp14.500
8 09159-14031-000 NUT (M14) 2 Rp37.000
9 09159-14033-000 NUT (M14) 2 Rp25.500
10 09385-14001-000 PIN,SNAP 2 Rp5.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
