NEW CARRY PICK UP

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 413A - FRONT AXLEFIG. 418A - FRONT SUSPENSION FRAMEFIG. 430A - REAR SUSPENSIONFIG. 439A - REAR AXLEFIG. 449A - ROAD WHEEL/TIREFIG. 451A - STEERING WHEELFIG. 453A - STEERING COLUMN (N_PW_ST)FIG. 453B - STEERING COLUMN (W_PW_ST)FIG. 480A - STEERING UNITFIG. 490A - PEDAL/PEDAL BRACKETFIG. 500A - BRAKE MASTER CYLINDERFIG. 501A - BRAKE RESERVOIRFIG. 520A - FRONT WHEEL BRAKEFIG. 530A - REAR WHEEL BRAKEFIG. 542A - PARKING BRAKEFIG. 400A- FRONT SUSPENSIONFIG. 50CA FRONT BRAKE PIPINGFIG. 50DA REAR BRAKE PIPINGFIG. 484A - STEERING INTERMEDIATE GEAR

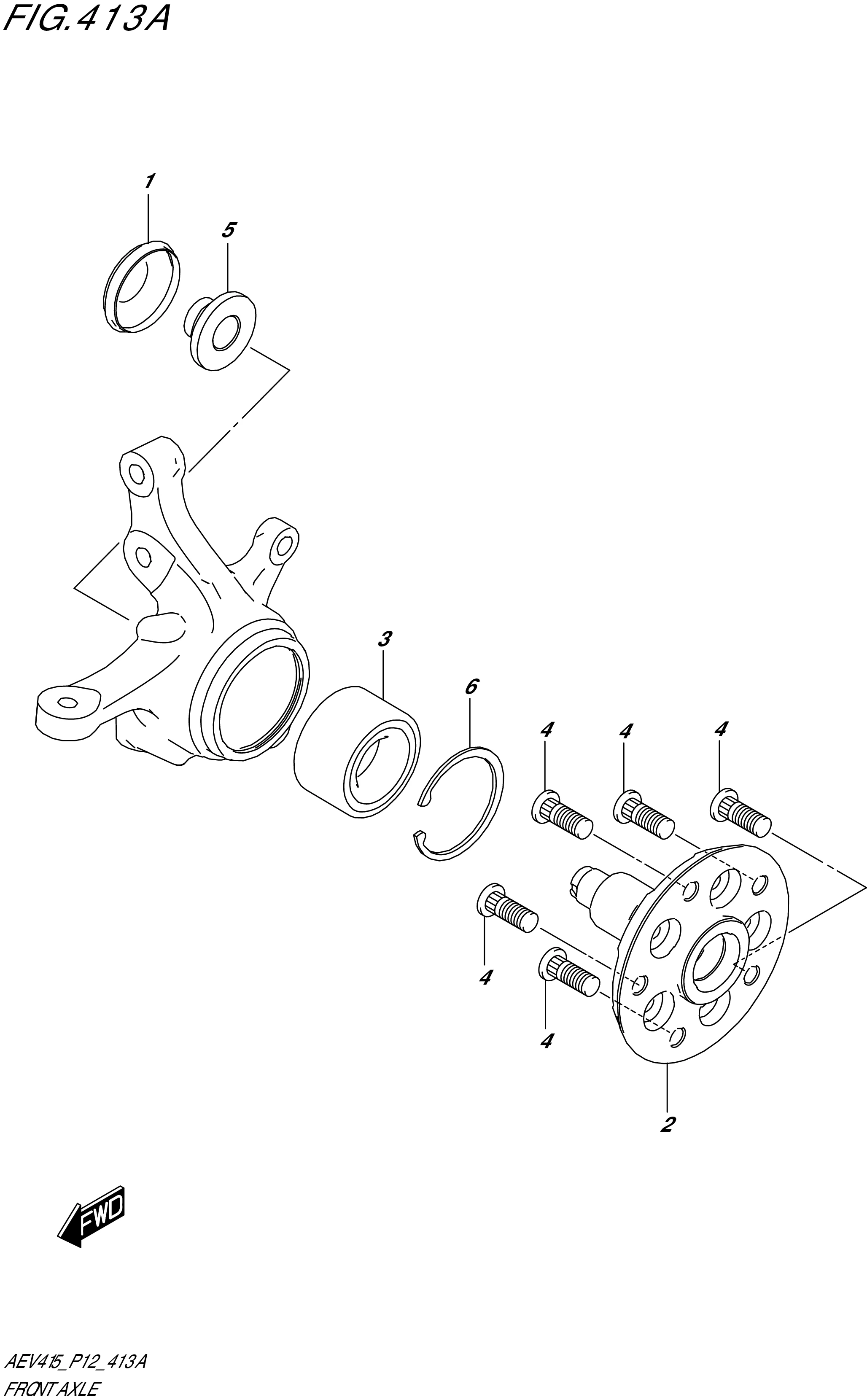

FIG. 413A - FRONT AXLE

FIG. 413A - FRONT AXLE
No No. Part Description Qty Price Per Pcs Remarks
1 43241-52S00-000 CAP,SPINDLE 2 Rp18.500
2 43421-52S00-000 HUB,FRONT WHEEL 2 Rp494.000
3 43440-52S01-000
SUB: 43440-52S00-000		 BEARING,FRONT WHEEL 2 Rp370.000
4 09119-12007-000 BOLT (12X34) 10 Rp17.000
5 09159-24012-000 NUT,FR WHEEL BRG LOCK 2 Rp76.000
6 09381-73001-000 CIRCLIP,FR WHEEL BRG 2 Rp23.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
