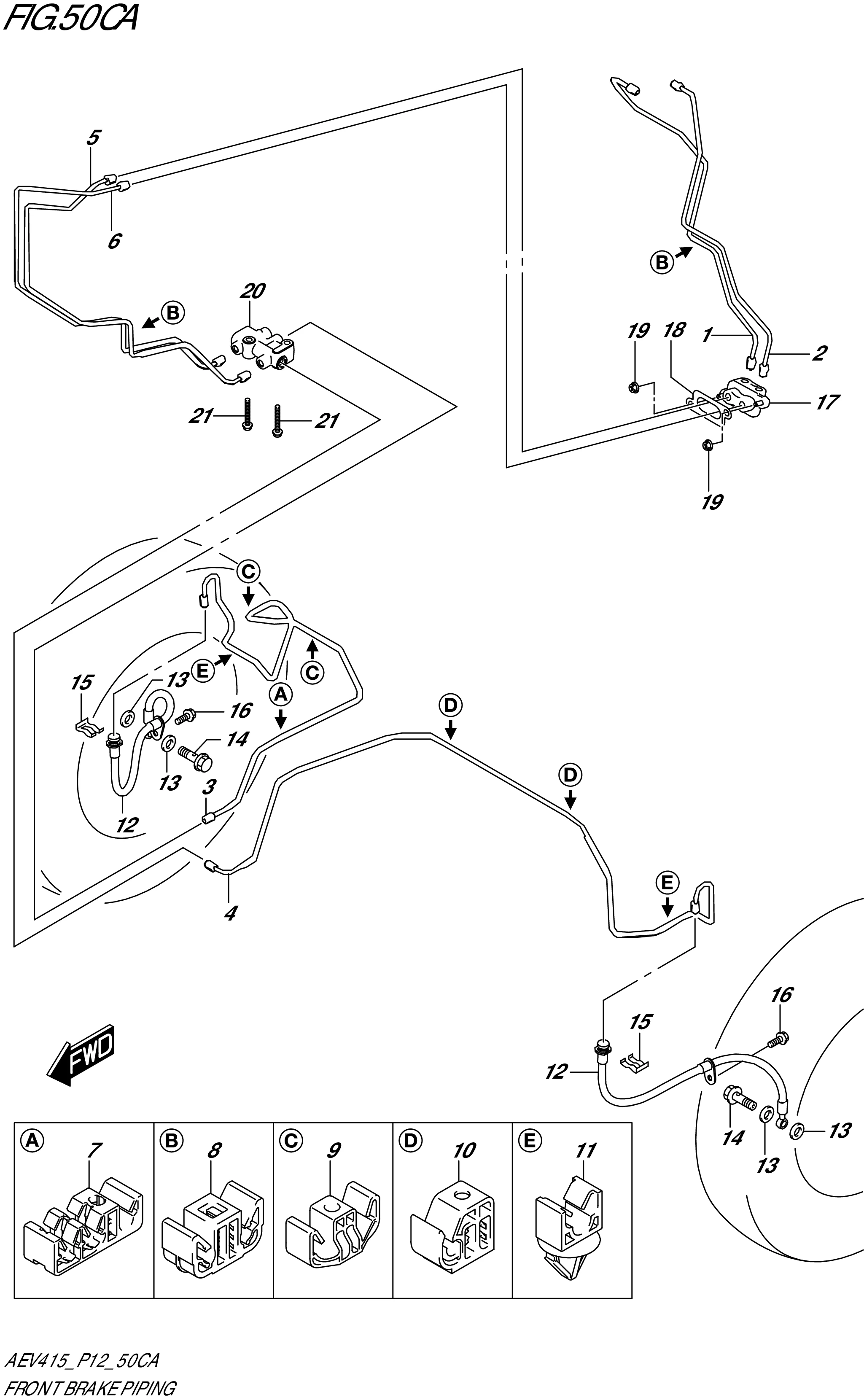

FIG. 50CA FRONT BRAKE PIPING

FIG. 50CA FRONT BRAKE PIPING
No No. Part Description Qty Price Per Pcs Remarks
1 51410-52S00-000 PIPE,MA PRI TO 4 WAY 1 Rp19.000
2 51420-52S00-000 PIPE,MA SEC TO 4 WAY 1 Rp16.500
3 51430-52S00-000 PIPE,BPV TO FR BK HOSE,R 1 Rp34.500
4 51440-52S00-000 PIPE,BPV TO FR BK HOSE,L 1 Rp38.500
5 51450-52S00-000 PIPE,4 WAY TO BPV PRI 1 Rp22.000
6 51460-52S00-000 PIPE,4 WAY TO BPV SEC 1 Rp22.500
7 51751-52S00-000 CLAMP,BK PIPE FR FLOOR TRIPLE 1 Rp6.500
8 51751-67L20-000
SUB: 51751B67L20N000		 CLAMP,BK PIPE RR FL DOUBLE 2 Rp6.500
9 51751-77M10-000
SUB: 51751B77M10N000		 CLAMP,BRAKE PIPE SIDE MEMBER 2 Rp5.500
10 51752-77M00-000
SUB: 51752B77M00N000		 CLAMP,BRAKE PIPE DASH 1 2 Rp5.500
11 51761-77M00-000
SUB: 51761B77M00N000		 CLAMP, BRAKE PIPE SIDE MEMBER 2 Rp5.500
12 51540-52S00-000 HOSE,FR BRAKE FLEXIBLE 2 Rp73.500
13 09161-10009-000 WASHER (10X15X1.5) 4 Rp12.500
14 51561M55K00-000 UNION (M10X1.0X23) 2 Rp8.500
15 09383M13004-000 E RING 2 Rp7.000
16 01551-0816C-000 BOLT 2 Rp13.500
17 51630-52S20-000 JOINT,BRAKE 4 WAY 1 Rp175.500
18 51631-64P00-000 PACKING, BRAKE JOINT 1 Rp37.000
19 08316-1006A-000 NUT (6X12) 2 Rp2.000
20 51960-52S00-000 VALVE ASSY,BLEND PROPORTIONING 1 Rp431.500
21 02162-0640A-000 SCREW 2 Rp5.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
