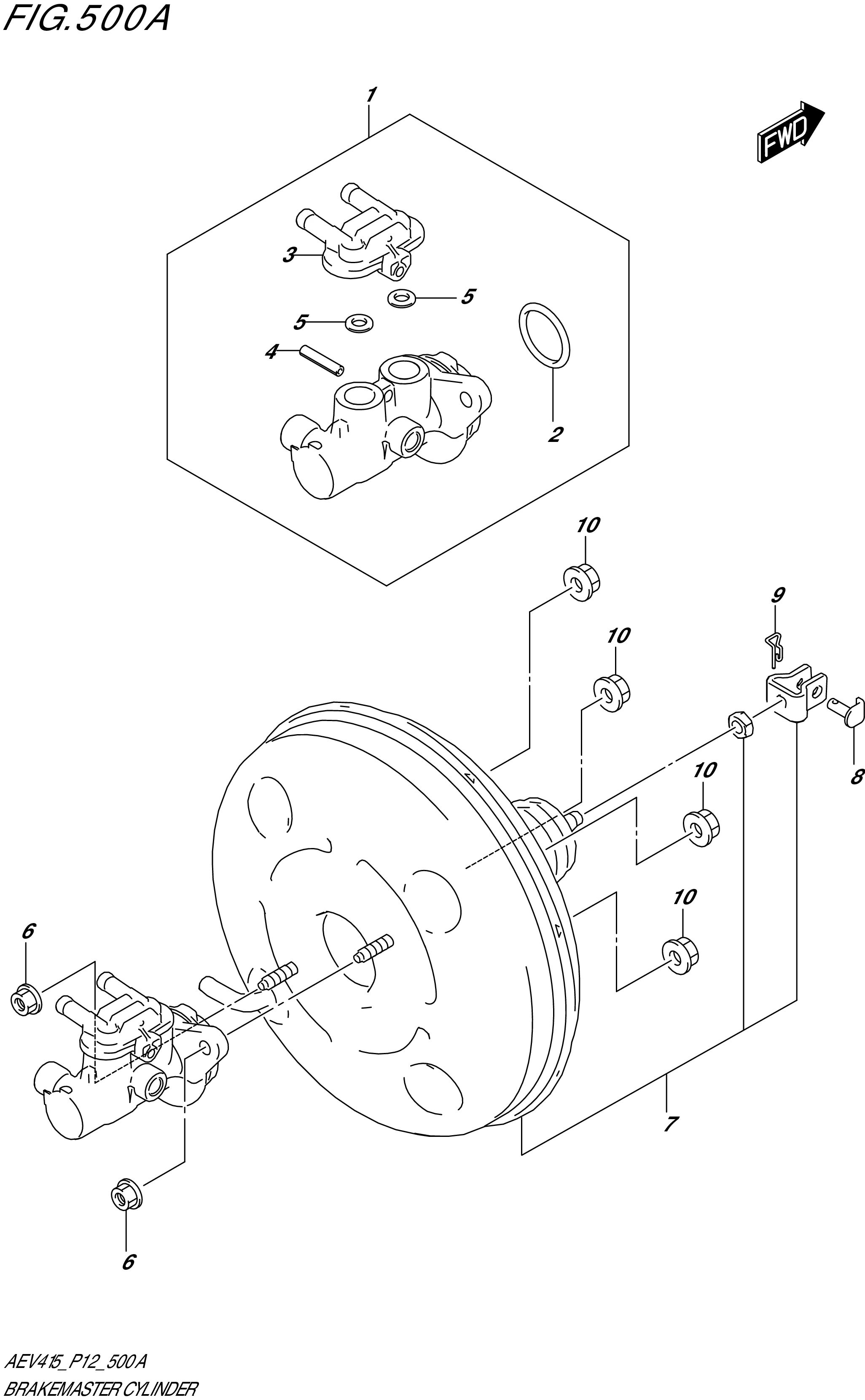

FIG. 500A - BRAKE MASTER CYLINDER

FIG. 500A - BRAKE MASTER CYLINDER
No No. Part Description Qty Price Per Pcs Remarks
1 51100-52S00-000 CYLINDER ASSY,BRAKE MASTER 1 Rp1.608.000
2 51185-85K00-000 .O-RING,MASTER CYLINDER 1 Rp12.500
3 51191-82M01-000 .UNION, BRAKE MASTER 1 Rp149.500
4 09205-05003-000 .PIN,SPRING (5X45) 1 Rp13.500
5 51232-67L20-000
SUB: 51232B67L20N000		 .GROMMET,RSVR CONNECTOR 2 Rp13.000
6 09159-08075-000 NUT (M8) 2 Rp14.000
7 51300-52S00-000 BOOSTER ASSY,BRAKE MASTER 1 Rp1.168.000
8 09200M08052-000 PIN (D:8,L1:23,L2:17.5) 1 Rp13.500
9 09385-08007-000 PIN,SNAP (L:21) 1 Rp16.500
10 09159-08134-000 NUT 4 Rp19.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
