NEW CARRY PICK UP

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 413A - FRONT AXLEFIG. 418A - FRONT SUSPENSION FRAMEFIG. 430A - REAR SUSPENSIONFIG. 439A - REAR AXLEFIG. 449A - ROAD WHEEL/TIREFIG. 451A - STEERING WHEELFIG. 453A - STEERING COLUMN (N_PW_ST)FIG. 453B - STEERING COLUMN (W_PW_ST)FIG. 480A - STEERING UNITFIG. 490A - PEDAL/PEDAL BRACKETFIG. 500A - BRAKE MASTER CYLINDERFIG. 501A - BRAKE RESERVOIRFIG. 520A - FRONT WHEEL BRAKEFIG. 530A - REAR WHEEL BRAKEFIG. 542A - PARKING BRAKEFIG. 400A- FRONT SUSPENSIONFIG. 50CA FRONT BRAKE PIPINGFIG. 50DA REAR BRAKE PIPINGFIG. 484A - STEERING INTERMEDIATE GEAR

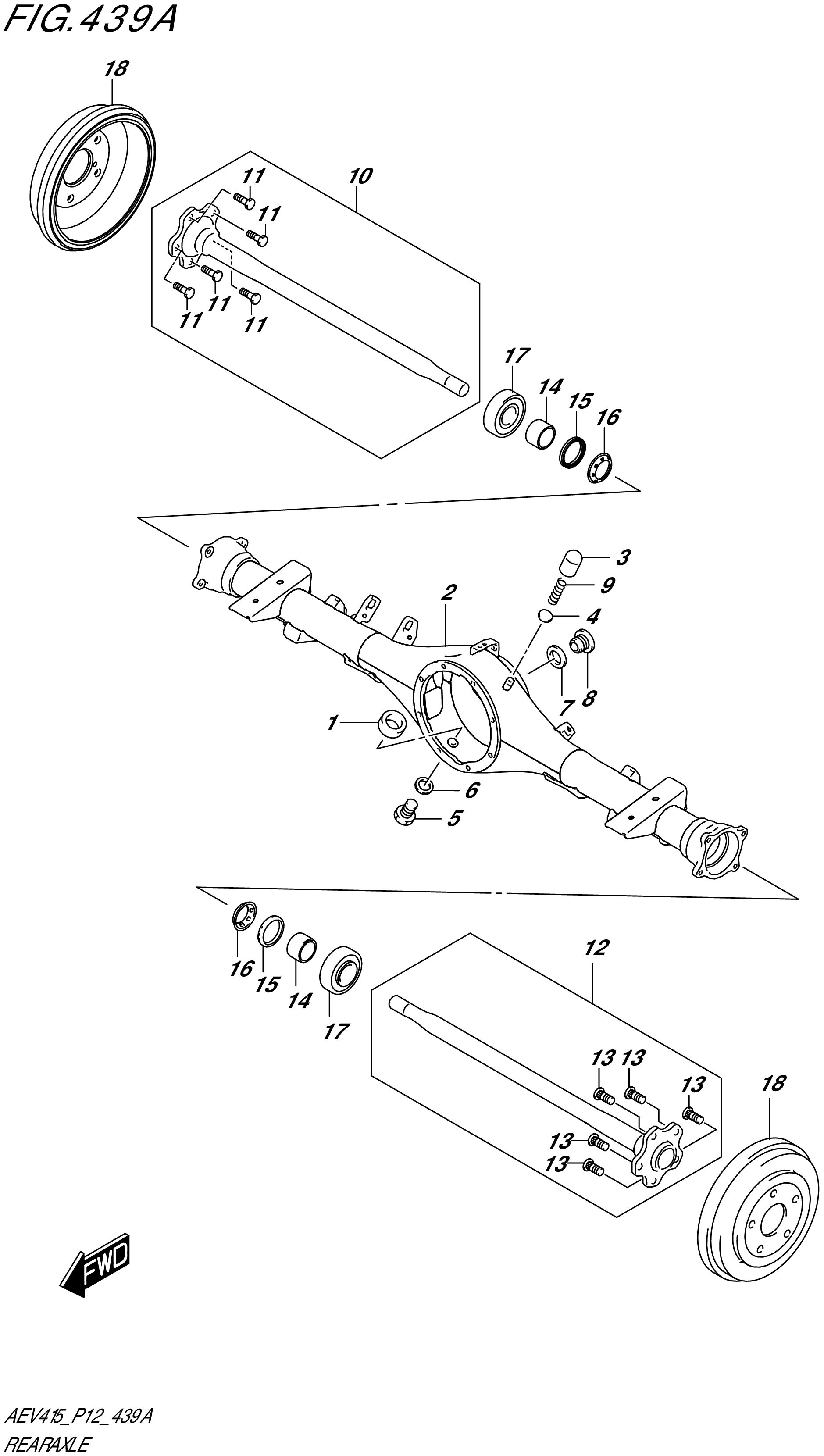

FIG. 439A - REAR AXLE

FIG. 439A - REAR AXLE
No No. Part Description Qty Price Per Pcs Remarks
1 24861-71B70-000 MAGNET,OIL CLEANER 1 Rp73.000
2 46510-52S00-000 HOUSING,REAR AXLE 1 Rp3.988.500
3 46541-52002-000 CAP,BREATER 1 Rp32.000
4 46542-52001-000 VALVE,RR AXLE HSG BREATHER 1 Rp15.000
5 46543-81P50-000 PLUG,RR AXLE HSG DRAIN 1 Rp39.500
6 09168-12002-000
SUB: 09168B12002N000		 GASKET (12.1X16.2X3.7) 1 Rp10.000
7 09168-20002-000 GASKET (20.5X30X1.5) 1 Rp17.000
8 09248-20003-000 PLUG (M20) 1 Rp28.500
9 09440-12004-000 SPRING (L:22) 1 Rp14.000
10 44210-52820-000 SHAFT SET,RR AXLE,R 1 Rp3.531.000
11 09119-12012-000 .BOLT (12X38) 5 Rp14.500
12 44220-52820-000 SHAFT SET,RR AXLE,L 1 Rp3.447.000
13 09119-12012-000 .BOLT (12X38) 5 Rp14.500
14 43485-52S00-000 RING,RR WHEEL BRG RETAINER 2 Rp348.000
15 43491-52S00-000 SEAL,REAR SHAFT OIL 2 Rp30.000
16 43588-52D00-000 PROTECTOR,OIL SEAL 2 Rp34.000
17 46860-52S00-000 BEARING,REAR WHEEL 2 Rp320.500
18 43511-61J02-000 DRUM,BRAKE RR 2 Rp452.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
