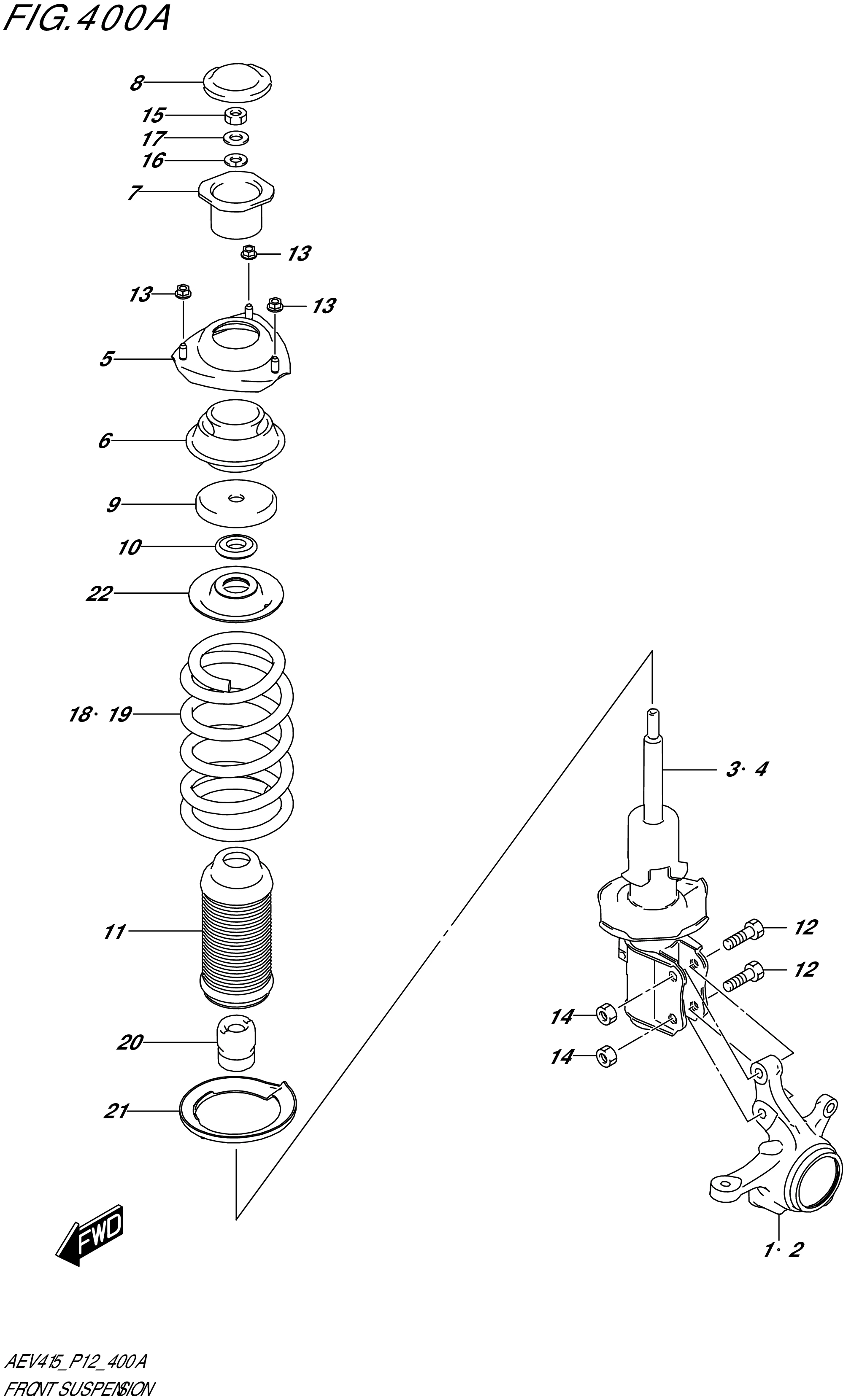

FIG. 400A- FRONT SUSPENSION

FIG. 400A- FRONT SUSPENSION
No No. Part Description Qty Price Per Pcs Remarks
1 45111-52S00-000 KNUCKLE,STEERING,R 1 Rp423.000
2 45151-52S00-000 KNUCKLE,STEERING,L 1 Rp423.000
3 41601-52S00-000 STRUT ASSY,FRONT SUSPENSION,R 1 Rp1.199.500
4 41602-52S00-000 STRUT ASSY,FRONT SUSPENSION,L 1 Rp1.199.500
5 41710-52S00-000 SUPPORT,FRONT STRUT 2 Rp88.500
6 41721-52S01-000 RUBBER,FRONT STRUT SUPPORT 2 Rp84.500
7 41720-52S00-000 STOPPER,FRONT STRUT REBOUND 2 Rp78.000
8 41724-85000-000
SUB: 41724-85000L000		 CAP,STRUT SUPPORT 2 Rp9.500
9 41741-77500-000
SUB: 41741-77500L000		 SEAT,FRONT STRUT BEARING 2 Rp48.000
10 41742-61M00-000 BEARING,FR STRUT 2 Rp61.500
11 41931-52S00-000 COVER,STRUT DUST 2 Rp122.000
12 09103-12090-000 BOLT (12X55) 4 Rp39.500
13 09159-08159-000 NUT,FRONT STRUT SUPPORT 6 Rp17.500
14 08316-1012A-000
SUB: 08316B1012AN000		 NUT (M12) 4 Rp6.500
15 08310-0014B-000
SUB: 08310B0014BN000		 NUT 2 Rp9.000
16 08321-0114B-000
SUB: 08321B0114BN000		 WASHER,LOCK 2 Rp10.500
17 08322-0114B-000 WASHER 2 Rp16.000
18 41111-52S10-000 SPRING,FRONT COIL,R 1 Rp296.500
19 41111-52S20-000 SPRING,FRONT COIL,L 1 Rp296.500
20 42111-52S00-000 STOPPER,FRONT BUMP 2 Rp75.000
21 41212-52S00-000 SEAT,FRONT SPRING LOWER 2 Rp56.000
22 41230-52S00-000 SEAT,FRONT SPRING UPPER 2 Rp80.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
