NEW CARRY PICK UP

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 413A - FRONT AXLEFIG. 418A - FRONT SUSPENSION FRAMEFIG. 430A - REAR SUSPENSIONFIG. 439A - REAR AXLEFIG. 449A - ROAD WHEEL/TIREFIG. 451A - STEERING WHEELFIG. 453A - STEERING COLUMN (N_PW_ST)FIG. 453B - STEERING COLUMN (W_PW_ST)FIG. 480A - STEERING UNITFIG. 490A - PEDAL/PEDAL BRACKETFIG. 500A - BRAKE MASTER CYLINDERFIG. 501A - BRAKE RESERVOIRFIG. 520A - FRONT WHEEL BRAKEFIG. 530A - REAR WHEEL BRAKEFIG. 542A - PARKING BRAKEFIG. 400A- FRONT SUSPENSIONFIG. 50CA FRONT BRAKE PIPINGFIG. 50DA REAR BRAKE PIPINGFIG. 484A - STEERING INTERMEDIATE GEAR

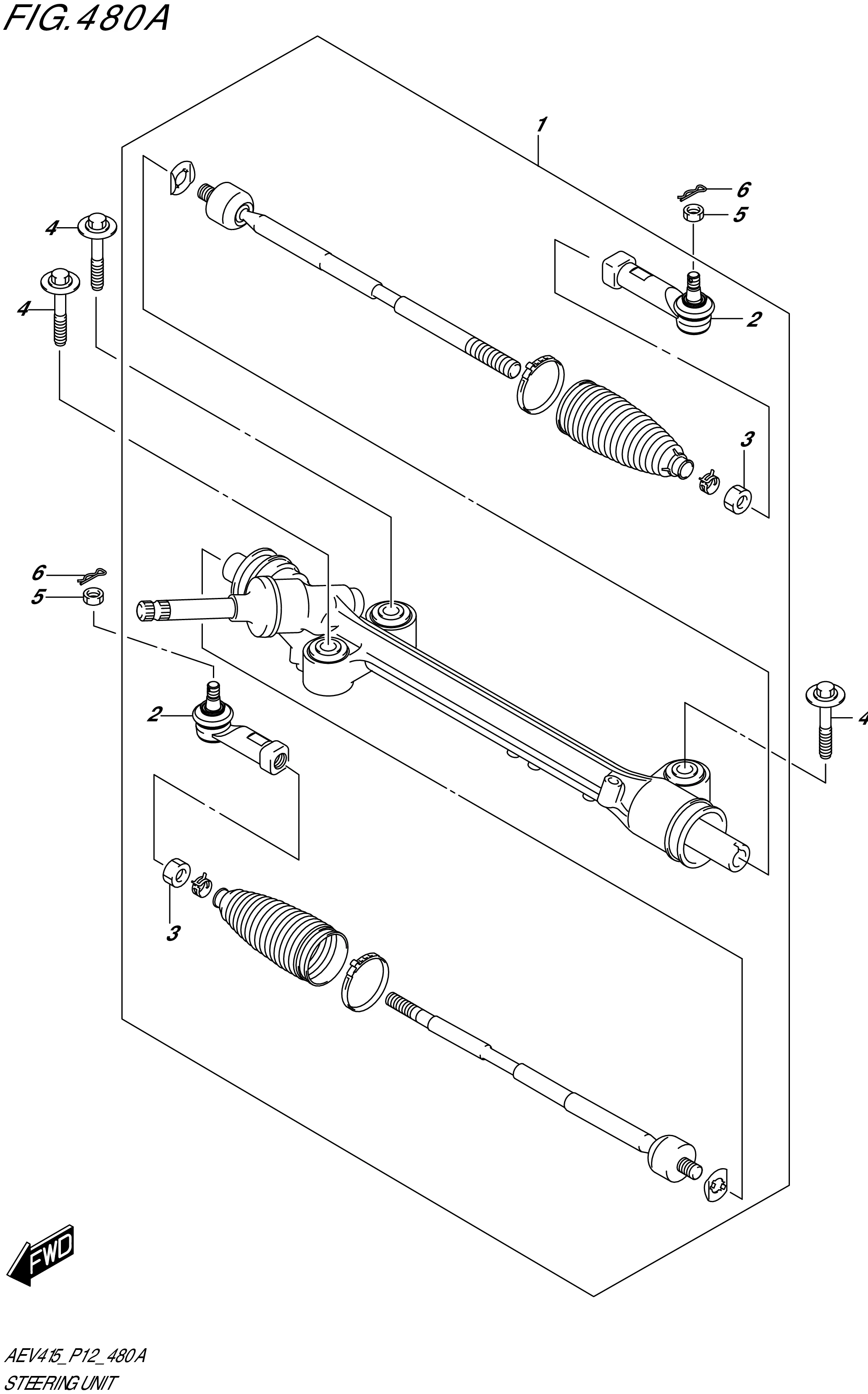

FIG. 480A - STEERING UNIT

FIG. 480A - STEERING UNIT
No No. Part Description Qty Price Per Pcs Remarks
1 48500-52S00-000 BOX ASSY,STEERING GEAR 1 Rp2.561.500
2 48810-73R00-000 .END,STRG TIE-ROD 2 Rp200.500
3 48817-73R00-000 .NUT,TIE-ROD,STRG 2 Rp61.500
4 09116-12010-000 BOLT (12X77) 3 Rp60.000
5 09140-12039-000
SUB: 09140B12039N000		 NUT (M12) 2 Rp6.500
6 09385-12002-000
SUB: 09385B12002N000		 CLIP 2 Rp4.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
