NEW CARRY PICK UP

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 413A - FRONT AXLEFIG. 418A - FRONT SUSPENSION FRAMEFIG. 430A - REAR SUSPENSIONFIG. 439A - REAR AXLEFIG. 449A - ROAD WHEEL/TIREFIG. 451A - STEERING WHEELFIG. 453A - STEERING COLUMN (N_PW_ST)FIG. 453B - STEERING COLUMN (W_PW_ST)FIG. 480A - STEERING UNITFIG. 490A - PEDAL/PEDAL BRACKETFIG. 500A - BRAKE MASTER CYLINDERFIG. 501A - BRAKE RESERVOIRFIG. 520A - FRONT WHEEL BRAKEFIG. 530A - REAR WHEEL BRAKEFIG. 542A - PARKING BRAKEFIG. 400A- FRONT SUSPENSIONFIG. 50CA FRONT BRAKE PIPINGFIG. 50DA REAR BRAKE PIPINGFIG. 484A - STEERING INTERMEDIATE GEAR

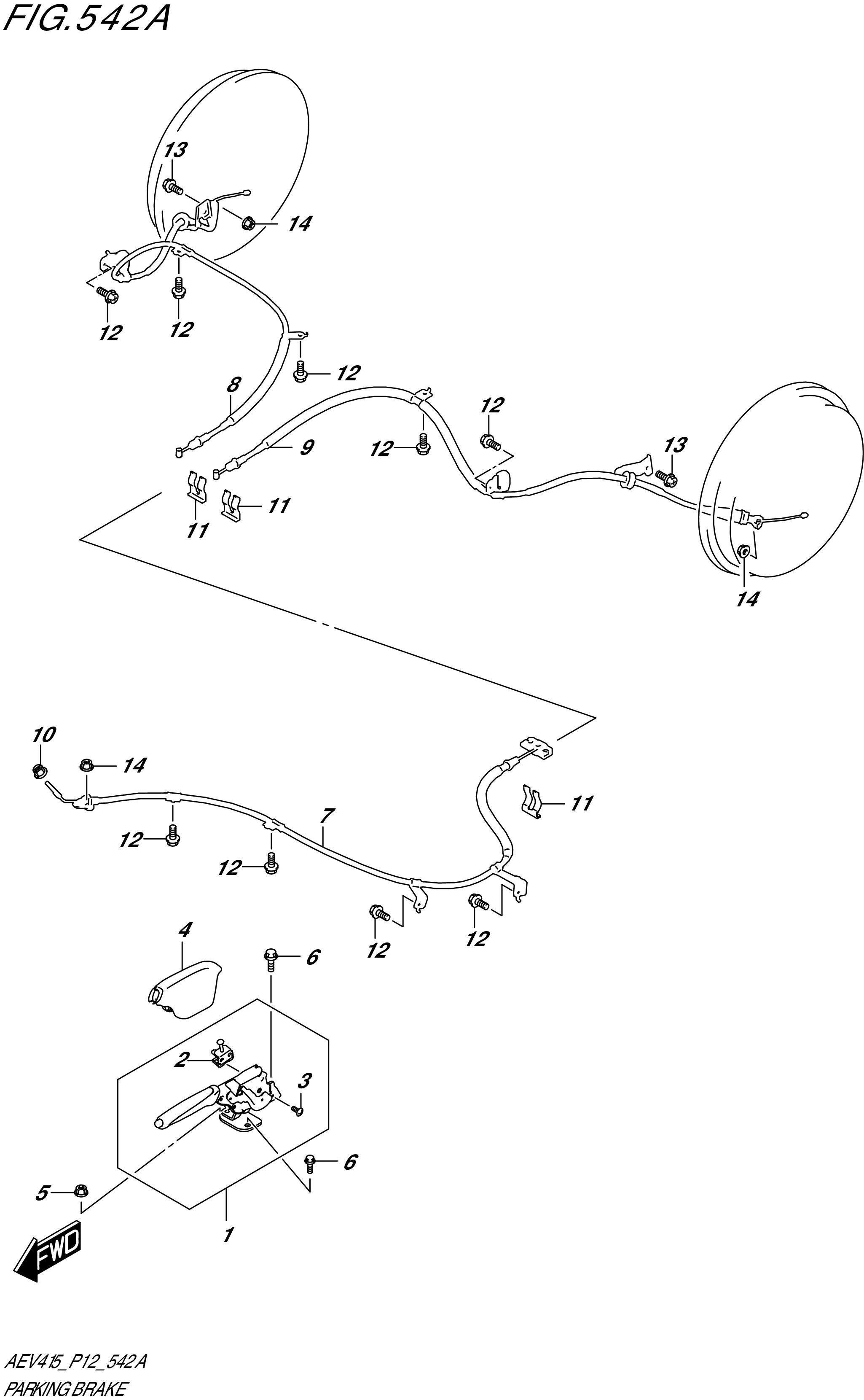

FIG. 542A - PARKING BRAKE

FIG. 542A - PARKING BRAKE
No No. Part Description Qty Price Per Pcs Remarks
1 54100-52S00-5PK LEVER ASSY,PARKING BRAKE (BLACK) 1 Rp247.500
2 37940-76G00-000 .SWITCH ASSY,PARKING BRAKE 1 Rp75.500
3 54115-76G00-000
SUB: 54115B76G00N000		 .SCREW 1 Rp16.000
4 54111-52S00-5PK COVER,PARKING LEVER (BLACK) 1 Rp59.000
5 09159-08150-000 NUT (M8X1.25) 1 Rp16.500
6 01551-0816C-000 BOLT 2 Rp13.500
7 54410-52S00-000 CABLE,PARKING BRAKE NO.1 1 Rp290.000
8 54430-52S00-000 CABLE,PARKING BK NO.2,R 1 Rp256.500
9 54440-52S00-000 CABLE,PARKING BK NO.2,L 1 Rp289.000
10 09159-06071-000 NUT (M6) 1 Rp16.000
11 09383-10003-000 CLIP 3 Rp19.500
12 02162-0612A-000 SCREW (6X12) 9 Rp11.000
13 02162-0616A-000 SCREW (6X16) 2 Rp3.000
14 08316-1006A-000 NUT (6X12) 3 Rp2.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
