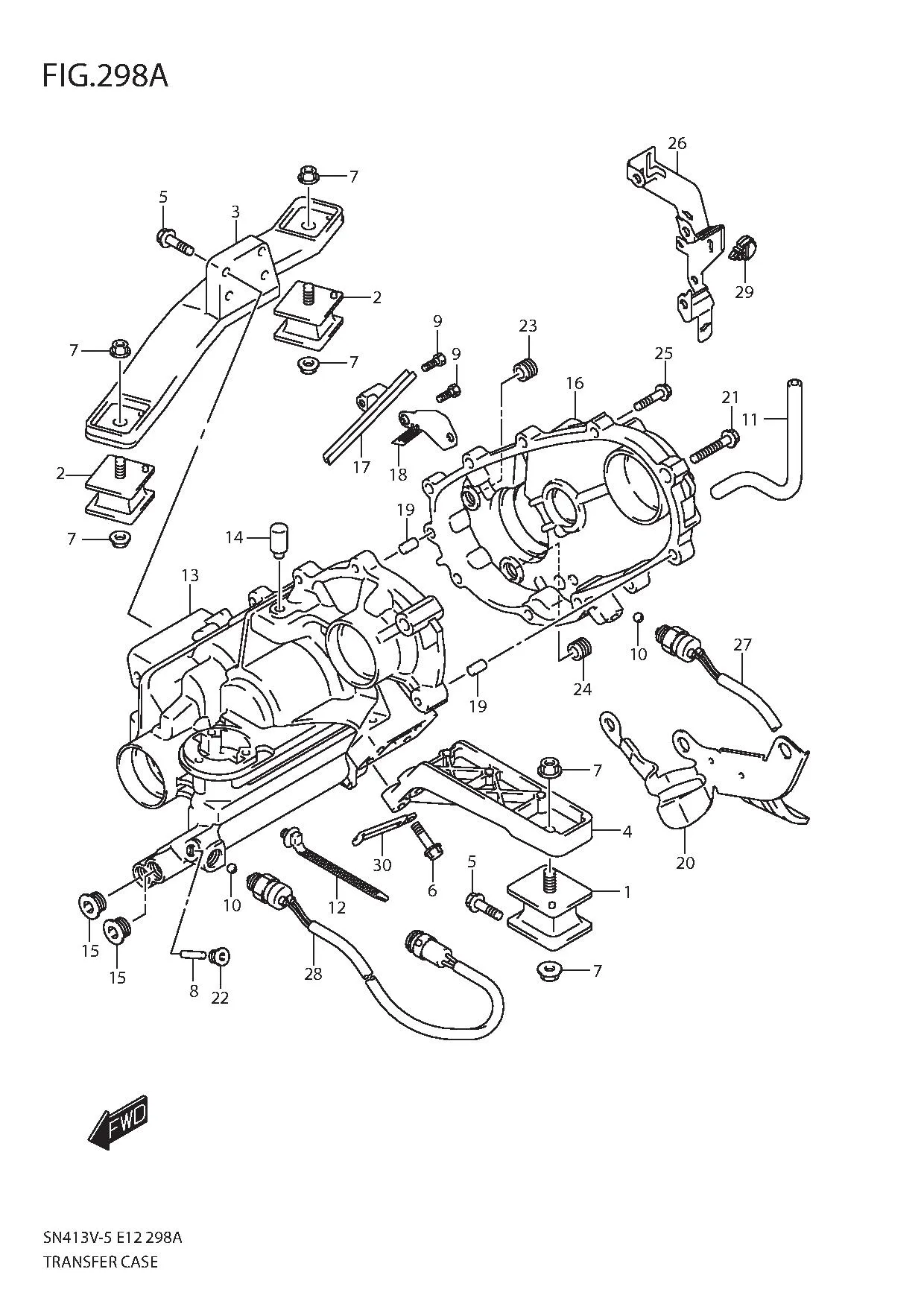

FIG.298A TRANSFER CASE

FIG.298A TRANSFER CASE
No No. Part Description Qty Price Per Pcs Remarks
1 29610-81A20-000 MOUNTING, TRANSFER 1 Rp295.000
2 29610-81A20-000 MOUNTING, TRANSFER 2 Rp295.000
3 29631-81A00-000 BRACKET, T/F MOUNTING RH 1 Rp683.000
4 29621-81A00-000 BRACKET, T/F MOUNTING LH 1 Rp972.500
5 29649-81A00-000 BOLT, T/F MOUNTING BRACKET RH 4 Rp35.500
6 01550-0835A-000
SUB: 01550B0835AN000		 BOLT 4 Rp3.500
7 08316-1010A-000
SUB: 08316B1010AN000		 NUT 6 Rp3.500
8 25524-76J00-000 PIN, GEAR SHIFT 1 Rp73.000
9 26599-85500-000 BOLT, OIL RECEIVER/PLATE 3 Rp26.500
10 06111-10003-000 BALL 2 Rp10.000
11 29351-76J00-000 HOSE, BREATHER 1 Rp105.000
12 29417-76J00-000 CLAMP,4WD SWITCH HARNESS 1 Rp69.500
13 29511-76J01-000 CASE, TRANSFER FRONT 1 Rp3.624.500
14 29515-80050-000 PLUG, T/F BREATHER 1 Rp37.000
15 29515-84A00-000 PLUG, SHIFT FORK SHAFT 2 Rp61.500
16 29521-76J00-000 CASE, TRANSFER REAR 1 Rp2.270.500
17 29522-84A00-000 RECEIVER, T/F OIL 1 Rp83.000
18 29523-84A00-000 PLATE, T/F OIL 1 Rp55.000
19 29527-80050-000 PIN, T/F CASE DOWEL 2 Rp24.000
20 29551-84A60-000 PROTECTOR, T/F ACTUATOR 1 Rp218.500
21 09117-08090-000 BOLT (8X40) 4 Rp27.500
22 DISCONTINUE
SUB: 29941-80050-000		 SCREW, GEAR SHIFT 1 -
23 29945-80051-000 PLUG, T/F OIL FILLER 1 Rp34.000
24 29946-80051-000 PLUG, T/F OIL DRAIN 1 Rp49.000
25 09117-08089-000 BOLT (8X35) 7 Rp27.500
26 36651-76J10-000 BRACKET, HARNESS 1 Rp115.500
27 37680-76J01-000 SWITCH ASSY,4 WHEEL DRIVE 1 Rp586.000
28 37630-76J20-000 SWITCH SET,4 WHEEL DRIVE 1 Rp674.500
29 09403-20307-000 CLAMP 1 Rp15.000
30 DISCONTINUE
SUB: 09404-08206-000		 CLAMP (L:65) 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
