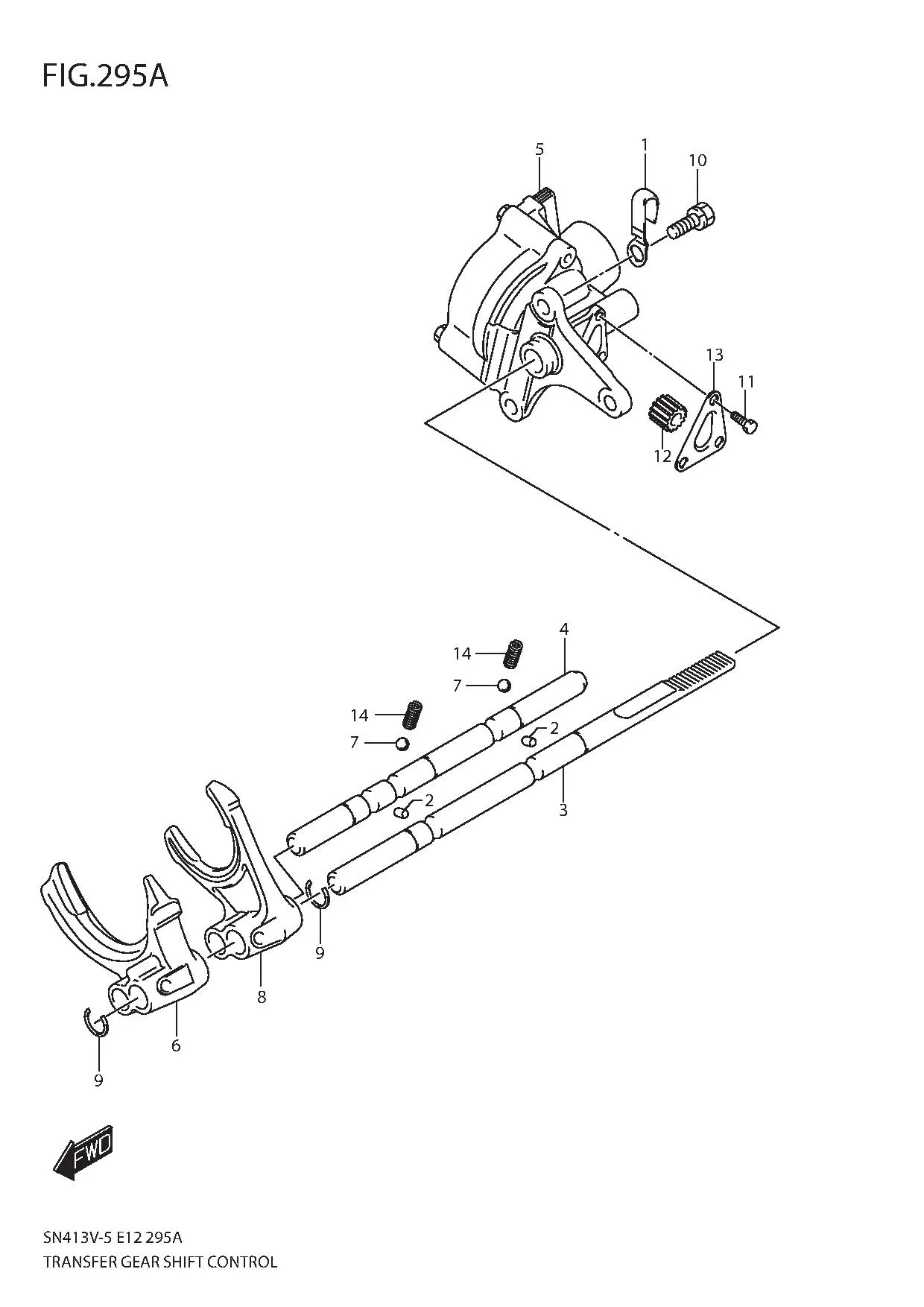

FIG.295A TRANSFER GEAR SHIFT CONTROL

FIG.295A TRANSFER GEAR SHIFT CONTROL
No No. Part Description Qty Price Per Pcs Remarks
1 24733-62JE0-000 CLAMP 1 Rp90.000
2 25524-68D50-000 ROLLER, GEAR SHIFT INTERLOCK 2 Rp41.000
3 29141-76J00-000 SHAFT, SHIFT FORK NO.1 1 Rp609.000
4 29142-76J00-000 SHAFT, SHIFT FORK NO.2 1 Rp551.500
5 29300-76J00-000 ACTUATOR ASSY, TRANSFER SHIFT 1 Rp4.975.000
6 29311-76J00-000 FORK, FRONT DRIVE GEAR SHIFT 1 Rp700.000
7 06111-10003-000 BALL 2 Rp10.000
8 29321-76J00-000 FORK, HIGH & LOW SHIFT 1 Rp888.000
9 29338-81A00-000 RING, SHIFT SHAFT SNAP 5 Rp40.000
10 29561-76J00-000 BOLT, ACTUATOR 3 Rp65.500
11 29562-76J00-000 SCREW, T/F CONTROL CASE COVER 3 Rp58.000
12 29741-76J00-000 GEAR, TRANSFER CONTROL FINAL 1 Rp168.500
13 29751-76J00-000 COVER, T/F CONTROL CASE NO.2 1 Rp113.500
14 29995-80050-000 SPRING, GEAR SHIFT LOCATING 2 Rp17.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
