JIMNY 2017

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.210A AT TRANSMISSION ASSYFIG.214A AT OIL PUMPFIG.220A AT PLANETARY GEARFIG.222A AT OUTPUT SHAFTFIG.228A AT FORWARD CLUTCHFIG.230A AT 2ND BRAKEFIG.234A AT 1ST/REVERSE BRAKEFIG.240A AT TRANSMISSION CASEFIG.244A AT VALVEFIG.246A AT PARKING LOCKFIG.248A AT OIL HOSEFIG.260A GEAR SHIFT CONTROLFIG.267A PROPELLER SHAFTFIG.272A FRONT DIFFERENTIAL GEARFIG.282A REAR DIFFERENTIAL GEARFIG.290A TRANSFER ASSYFIG.291A TRANSFER GEARFIG.295A TRANSFER GEAR SHIFT CONTROLFIG.298A TRANSFER CASE

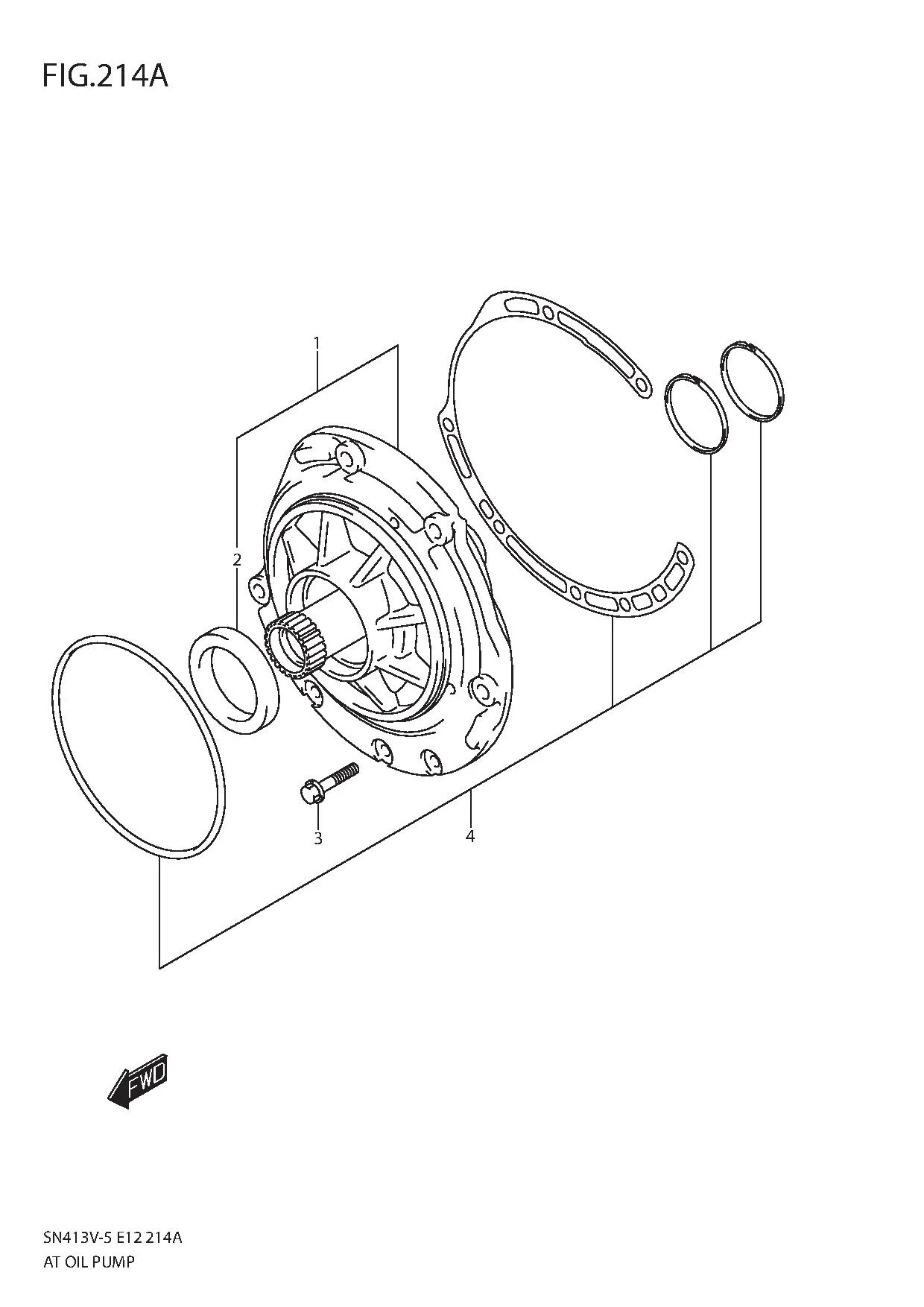

FIG.214A AT OIL PUMP

FIG.214A AT OIL PUMP
No No. Part Description Qty Price Per Pcs Remarks
1 22800-76J11-000 PUMP ASSY, OIL 1 Rp8.589.500
2 22881-79C10-000 •SEAL, OIL PUMP OIL 1 Rp81.000
3 22814-75F10-000 BOLT, OIL PUMP 7 Rp36.000
4 22860-66HT0-000 RING SET, OIL PUMP SEAL 1 Rp274.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
