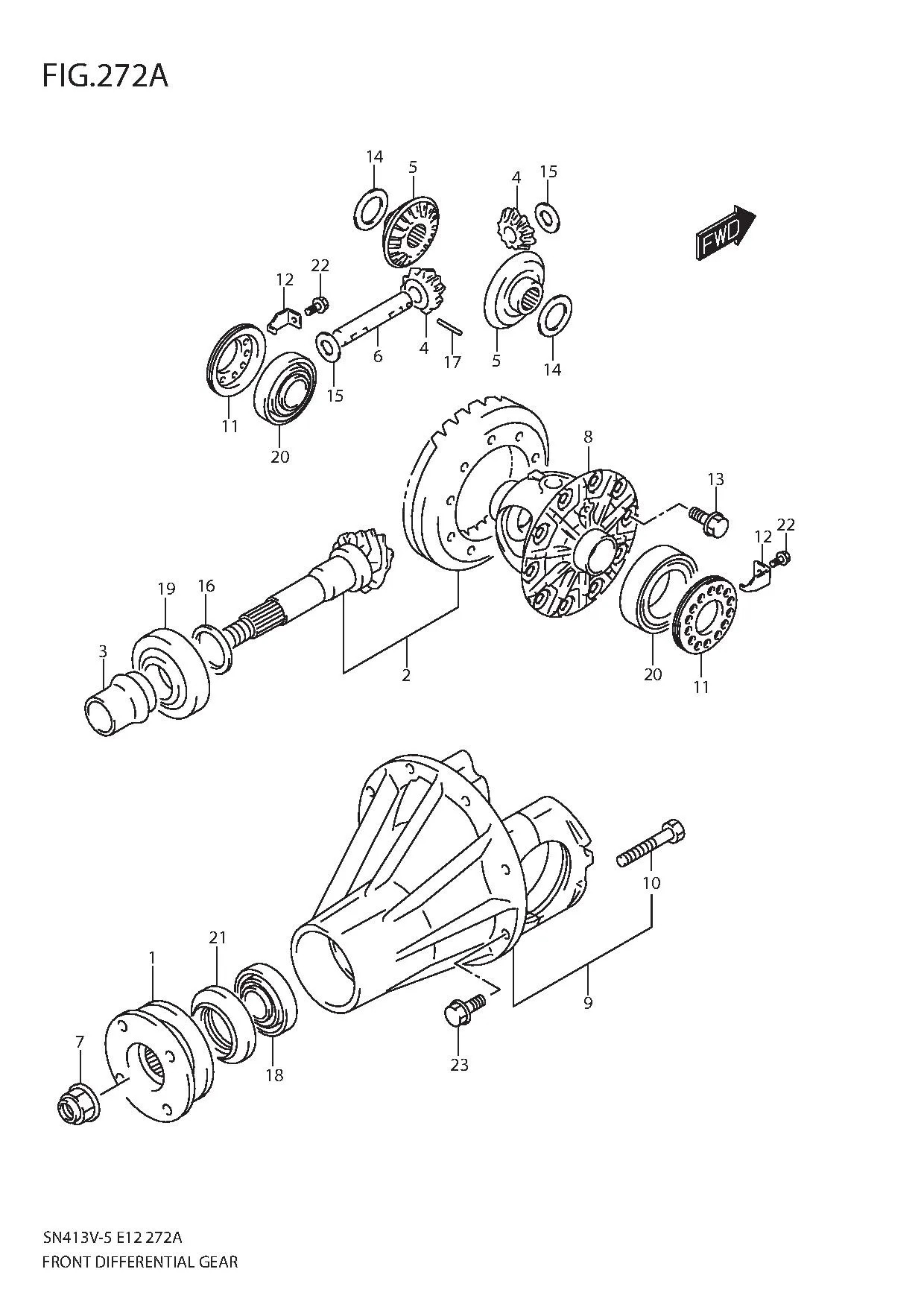

FIG.272A FRONT DIFFERENTIAL GEAR

FIG.272A FRONT DIFFERENTIAL GEAR
No No. Part Description Qty Price Per Pcs Remarks
1 27110-83C00-000 FLANGE, UNIVERSAL JOINT 1 Rp853.500
2 27300-81850-000 BEVEL PINION & GEAR SET 1 Rp8.831.000
3 DISCONTINUE
SUB: 27315-60A01-000		 SPACER, DRIVE BEVEL PINION 1 -
4 27331M67K00-000
SUB: 27331M83020-000		 PINION, DIFFERENTIAL 2 Rp178.500
5 27341-76A22-000
SUB: 27341-76A21-000		 GEAR, DIFFERENTIAL 2 Rp642.000
6 27351M74L00-000
SUB: 27351M64B20-000		 SHAFT, DIFFERENTIAL PINION 1 Rp104.000
7 27375-60A00-000 NUT, UNIVERSAL JOINT FLANGE 1 Rp78.000
8 27411-81A60-000 CASE, DIFFERENTIAL 1 Rp2.049.000
9 27450-81A60-000 CARRIER ASSY, DIFFERENTIAL 1 Rp2.974.500
10 DISCONTINUE
SUB: 09111-10054-000		 •BOLT (10X50) 4 -
11 DISCONTINUE
SUB: 27461-63201-000		 ADJUSTER, DIFF SIDE BRG 2 -
12 27462-68H00-000 PLATE, DIFF SIDE BEARING LOCK 2 Rp27.000
13 09103-10309-000 BOLT (10X16) 10 Rp39.500
14-1 09160M35006-000 WASHER (35X46X0.9) 0 Rp8.500
14-2 09160M35002-000 WASHER (35X46X1) 0 Rp9.500
14-3 09160M35003-000 WASHER (35X46X1.1) 0 Rp9.000
14-4 09160M35004-000 WASHER (35X46X1.2) 0 Rp14.500
15 09164M15011-000
SUB: 09164M15006-000		 WASHER (15.3X30X1) 2 Rp8.000
16-1 09181-35101-000
SUB: 09181-35023-000		 SHIM (35X42X0.3) 0 Rp14.500
16-12 09181-35125-000 SHIM (35X42X1.3) 0 Rp22.500
16-11 09181-35124-000 SHIM (35X42X1.27) 0 Rp30.500
16-10 09181-35122-000 SHIM (35X42X1.24) 0 Rp31.000
16-9 09181-35121-000 SHIM (35X42X1.21) 0 Rp30.500
16-8 09181-35119-000 SHIM (35X42X1.18) 0 Rp31.000
16-7 09181-35118-000 SHIM (35X42X1.15) 0 Rp22.500
16-6 09181-35117-000 SHIM (35X42X1.12) 0 Rp31.000
16-5 09181-35115-000 SHIM (35X42X1.09) 0 Rp32.000
16-4 09181-35114-000 SHIM (35X42X1.06) 0 Rp32.000
16-3 DISCONTINUE
SUB: 09181-35112-000		 SHIM (35X42X1.03) 0 -
16-2 09181-35111-000 SHIM (35X42X1) 0 Rp32.500
17 09205-05016-000 SPRING PIN (5X32) 1 Rp16.500
18 09265-30018-000 BEARING (30X72X20.75) 1 Rp581.000
19 09265-35011-000 BEARING (35X80X22.75) 1 Rp690.000
20 09265-41001-000 BEARING (41X68X17.5) 2 Rp474.000
21 09283-40027-000 OIL SEAL (40X72X11) 1 Rp91.000
22 01550-0812A-000
SUB: 01550B0812AN000		 BOLT 2 Rp3.500
23 09117-08102-000 BOLT (8X32) 8 Rp25.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
