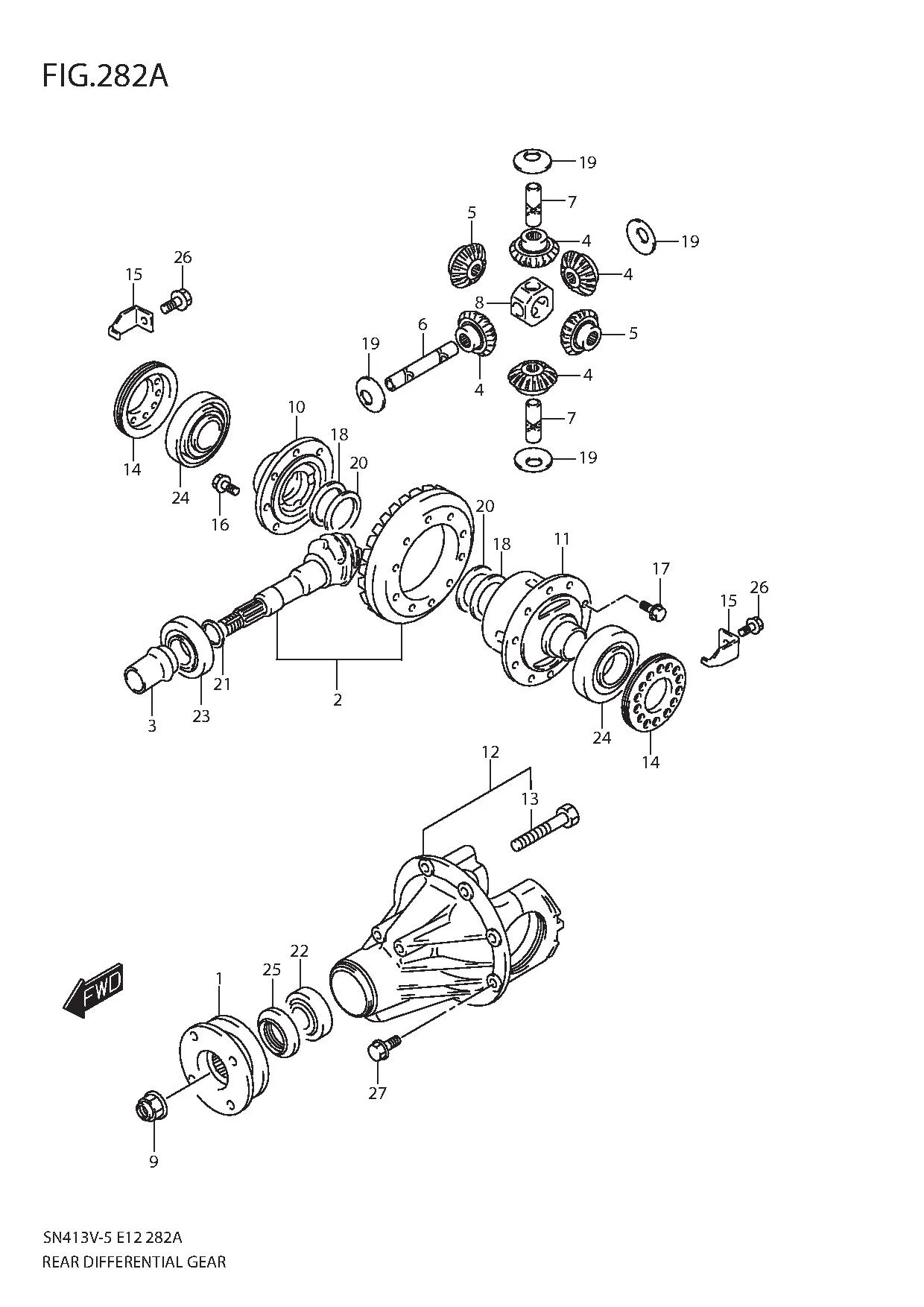

FIG.282A REAR DIFFERENTIAL GEAR

FIG.282A REAR DIFFERENTIAL GEAR
No No. Part Description Qty Price Per Pcs Remarks
1 27110-83C00-000 FLANGE, UNIVERSAL JOINT 1 Rp853.500
2 27300-80880-000 PINION, DRIVE BEVEL 1 Rp8.492.000
3 DISCONTINUE
SUB: 27315-60A01-000		 SPECER, DRIVE BEVEL PIN 1 -
4 27331M67K00-000
SUB: 27331M83020-000		 PINION, DIFFERENTIAL 4 Rp178.500
5 27341-83000-000 GEAR, DIFFERENTIAL 2 Rp599.000
6 27351-65D00-000 SHAFT, DIFF PINION NO.1 1 Rp245.500
7 27355-65D00-000 SHAFT, DIFF PINION NO.2 2 Rp203.000
8 27356-86081-000 JOINT, DIFF PINION 1 Rp415.000
9 27375-60A00-000 NUT, UNIVERSAL JOINT 1 Rp78.000
10 DISCONTINUE
SUB: 27421-83000-000		 CASE, DIFFERENTIAL RH 1 -
11 27411-83000-000 CASE, DIFFERENTIAL LH 1 Rp1.631.500
12 DISCONTINUE
SUB: 27450-60830-000		 CARRIER ASSY, DIFFERENTIAL 1 -
13 09111-12010-000 •BOLT (12X58) 4 Rp54.500
14 27461-83000-000 ADUSTER, DIFF SIDE BRG 2 Rp114.500
15 27462-68H00-000 PLATE, DIFF SIDE BEARING LOCK 2 Rp27.000
16 DISCONTINUE
SUB: 09103-08348-000		 BOLT (8X18.5) 8 -
17 09103-10290-000 BOLT (10X20) 10 Rp28.500
18-1 09160M35015-000 WASHER (35X46X0.6) 0 Rp6.500
18-2 09160M35014-000 WASHER (35X46X0.7) 0 Rp10.000
18-3 DISCONTINUE
SUB: 09160B35013N000		 WASHER (35X46X0.8) 0 -
19 09164M15011-000
SUB: 09164M15006-000		 WASHER (15.3X30X1) 4 Rp8.000
20 09164-35003-000 WASHER (35.2X44X0.3) 2 Rp47.500
21-1 09181-35101-000
SUB: 09181-35023-000		 SHIM (35X42X0.3) 0 Rp14.500
21-12 09181-35125-000 SHIM (35X42X1.3) 0 Rp22.500
21-11 09181-35124-000 SHIM (35X42X1.27) 0 Rp30.500
21-10 09181-35122-000 SHIM (35X42X1.24) 0 Rp31.000
21-9 09181-35121-000 SHIM (35X42X1.21) 0 Rp30.500
21-8 09181-35119-000 SHIM (35X42X1.18) 0 Rp31.000
21-7 09181-35118-000 SHIM (35X42X1.15) 0 Rp22.500
21-6 09181-35117-000 SHIM (35X42X1.12) 0 Rp31.000
21-5 09181-35115-000 SHIM (35X42X1.09) 0 Rp32.000
21-4 09181-35114-000 SHIM (35X42X1.06) 0 Rp32.000
21-3 DISCONTINUE
SUB: 09181-35112-000		 SHIM (35X42X1.03) 0 -
21-2 09181-35111-000 SHIM (35X42X1) 0 Rp32.500
22 09265-30018-000 BEARING (30X72X20.75) 1 Rp581.000
23 09265-35011-000 BEARING (35X80X22.75) 1 Rp690.000
24 09265-45002-000 BEARING (45.2X80X19.84) 2 Rp636.000
25 09283-40027-000 OIL SEAL (40X72X11) 1 Rp91.000
26 01550-0812A-000
SUB: 01550B0812AN000		 BOLT 2 Rp3.500
27 09117-08102-000 BOLT (8X32) 8 Rp25.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
