JIMNY 2017

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.210A AT TRANSMISSION ASSYFIG.214A AT OIL PUMPFIG.220A AT PLANETARY GEARFIG.222A AT OUTPUT SHAFTFIG.228A AT FORWARD CLUTCHFIG.230A AT 2ND BRAKEFIG.234A AT 1ST/REVERSE BRAKEFIG.240A AT TRANSMISSION CASEFIG.244A AT VALVEFIG.246A AT PARKING LOCKFIG.248A AT OIL HOSEFIG.260A GEAR SHIFT CONTROLFIG.267A PROPELLER SHAFTFIG.272A FRONT DIFFERENTIAL GEARFIG.282A REAR DIFFERENTIAL GEARFIG.290A TRANSFER ASSYFIG.291A TRANSFER GEARFIG.295A TRANSFER GEAR SHIFT CONTROLFIG.298A TRANSFER CASE

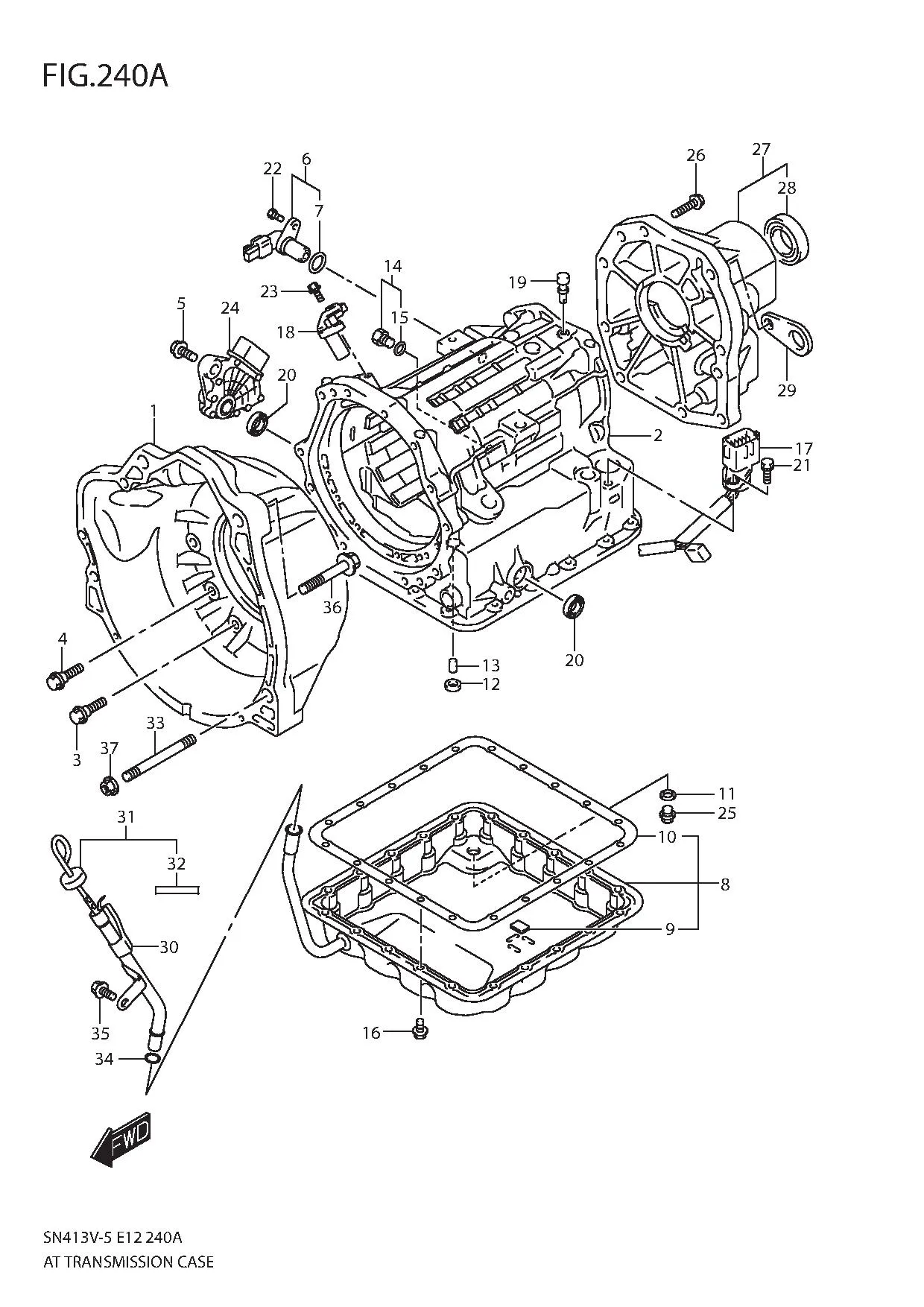

FIG.240A AT TRANSMISSION CASE

FIG.240A AT TRANSMISSION CASE
No No. Part Description Qty Price Per Pcs Remarks
1 24711-76J10-000 HOUSING, CONVERTER 1 Rp5.979.500
2 24720-66H12-000 CASE, TRANSMISSION 1 Rp11.045.500
3 22893-59J10-000 BOLT, CONVERTER HOUSING 9 Rp93.000
4 22893-66H10-000 BOLT, CONVERTER HOUSING SEAL 1 Rp63.500
5 24742-53J10-000 BOLT, SHIFT SWITCH 1 Rp60.000
6 24745-53J10-000 SENSOR, OUTPUT SPEED 1 Rp714.000
7 24748-53J10-000 •O RING, SPEED SENSOR 1 Rp28.500
8 26760-76JU0-000 PAN SET, TRANSMISSION OIL 1 Rp2.069.500
9 24745-57B00-000 •MAGNET, OIL CLEANER 2 Rp69.000
10 24784-66H11-000
SUB: 24784-66H10-000		 •GASKET, TRANSMISSION OIL PAN 1 Rp144.500
11 24781-57B00-000 GASKET, T/M DRAIN PLUG 1 Rp33.500
12 24818-68J10-000 GASKET, TRANSMISSION CASE 2 Rp71.500
13 24819-66H10-000 GASKET, BRAKE DRUM 2 Rp160.500
14 24820-62B00-000 PLUG, BOOSTER 2 Rp45.000
15 24755-78130-000 •O RING, BOOSTER PLUG 2 Rp14.500
16 24882-79C10-000 BOLT, OIL PAN 19 Rp22.000
17 24892-76J30-000 HARNESS, SOLENOID WIRE 1 Rp1.277.500
18 26141-66H10-000 SENSOR, INPUT SPEED 1 Rp414.000
19 27991-66H10-000 PLUG, TRANSMISSION BREATHER 1 Rp50.000
20 29793-57B00-000 SEAL, MANUAL LEVER SHAFT OIL 2 Rp78.000
21 01570-0616A-000 BOLT 1 Rp14.000
22 01570-0616A-000 BOLT 1 Rp14.000
23 01570-0616A-000 BOLT 1 Rp14.000
24 37720-66H10-000 SWITCH ASSY, SHIFT 1 Rp1.801.000
25 09247-10007-000 PLUG 1 Rp61.500
26 24729-60G10-000 BOLT, EXTENSION CASE 8 Rp61.000
27 24770-76J10-000 CASE ASSY, EXTENSION 1 Rp2.926.500
28 24780-83010-000 •SEAL, EXTENSION CASE OIL 1 Rp61.500
29 11851M72B21-000 HOOK, TRANSMISSION 1 Rp6.500
30 22940-76J11-000 TUBE, OIL FILLER 1 Rp342.000
31 22950-76J30-000 GAUGE ASSY, OIL LEVEL 1 Rp283.500
32 DISCONTINUE
SUB: 24839-63J10-000		 •EMBLEM, ATF 1 -
33 09108-12006-000 STUD BOLT 2 Rp37.500
34 09280-10016-000 O RING (D:1.9,ID:9.8) 1 Rp19.500
35 01550-0816A-000
SUB: 01550B0816AN000		 BOLT 1 Rp6.000
36 01550-1255A-000 BOLT 5 Rp31.000
37 08316-1012A-000
SUB: 08316B1012AN000		 NUT 2 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
